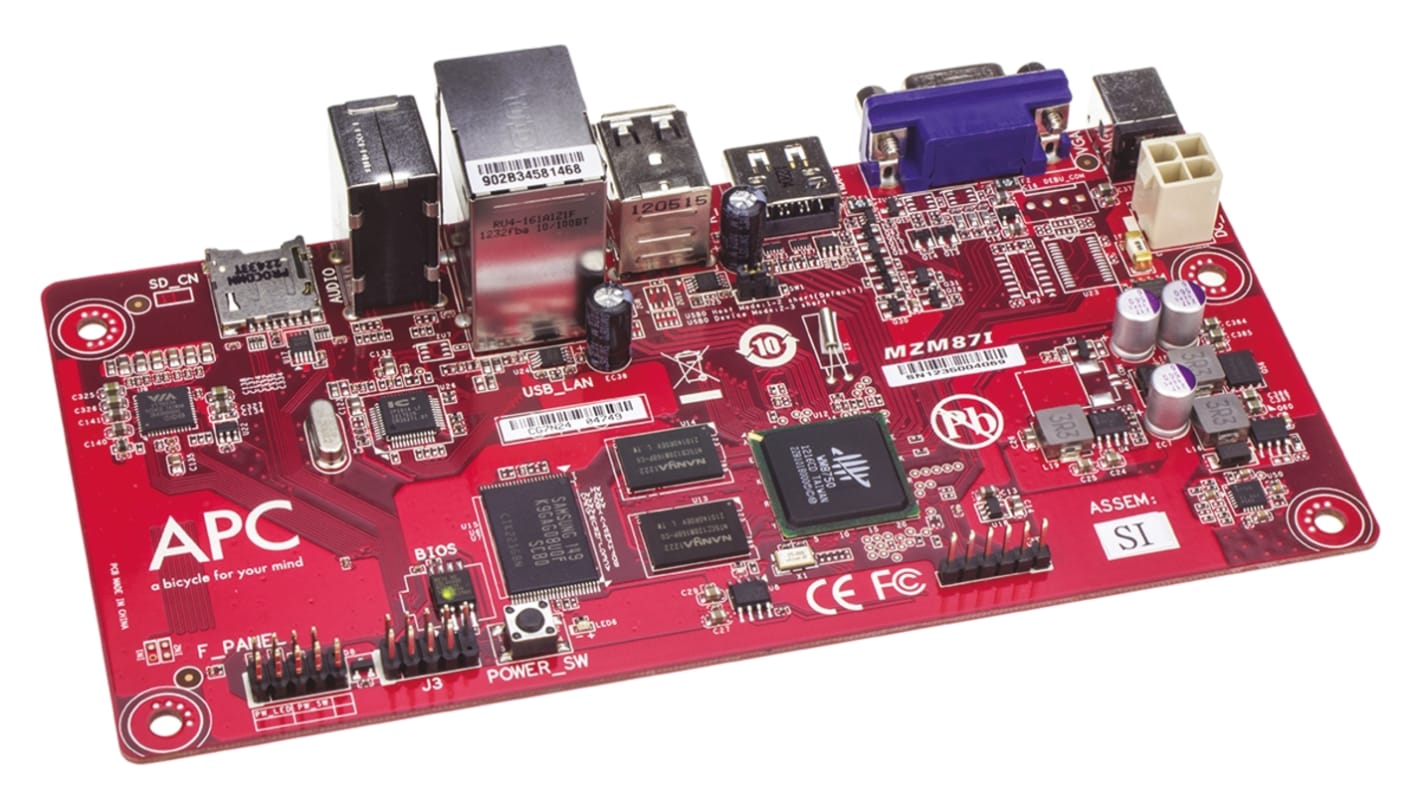

APC 8750 Android Personal Computer board
- RS Stock No. 768-9782
- Mfr. Part No. APC 8750
- Brand VIA Technologies
APC 8750 Android Neo-ITX Personal Computer
The APC single-board computer runs a custom Android operating system, built for keyboard and mouse input. A basic selection of applications is preinstalled. Also included is a full set of consumer I/O ports, enabling APC to connect to your PC monitor or TV. Getting Started guide, Engineering Resources including OS updates available online at: http://apc.io/
• 800MHz ARM1176JZF-core processor
• 512MB DDR3 SDRAM memory
• 2GB NAND Flash memory
• Built-in 2D/3D graphics, resolution up to 720p
• On-board real-time clock/calendar
• Android 2.3 OS pre-installed
• HDMI video socket
• VGA video socket
• 10/100 Ethernet RJ45 socket
• 4 x USB 2.0 sockets: USB0 host/device selectable by jumper
• 3.5mm audio out & microphone sockets
• microSD card slot
• UART serial port header, with RTS/CTS signals and +3.3Vout
• SPI serial port header
• 2.5mm +9Vdc power socket (Centre pin positive)
• Alternative +12Vdc 4-way ATX-type PSU socket
• Power consumption: 4W idle, 13.5W full load
• Power pushbutton and Power-On LED
• Remote Power pushbutton and Power-On LED header
• Size: 170 x 85mm
• Neo-ITX format board, compatible with Mini-ITX and Micro-ATX cases
RS Product Codes
768-9782 APC 8750 Android Personal Computer
772-4801 RS Pro Universal Mains Power Supply
Supplied with
I/O socket cover panel
| Attribute | Value |
|---|---|
| Core Processor | VIA 800 |
| Processor Clock Speed | 800MHz |
| Installed Memory | 512 MB |
| Maximum Supported Memory Capacity | 2GB |
| Supported I/O Interfaces | USB 2.0 |
| Supported Network Interfaces | 10/100 Ethernet |
| Supported Video Ports | HDMI, VGA |
| Expansion Slots | MicroSD |
| Supported On-board Solid State Disk Type | NAND Flash |
| Dimensions | 170 x 92.05 x 34.92mm |
| Height | 34.92mm |
| Supported Memory Technology | DDR3 |
| Width | 92.05mm |
| Length | 170mm |
