Beagleboard.org BeagleY - AI
- RS Stock No.:
- 287-8104
- Mfr. Part No.:
- 102991834
- Brand:
- Beagleboard.org
Price Each
£57.75
(exc. VAT)
£69.30
(inc. VAT)
32 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit |
|---|---|
| 1 + | £57.75 |
- RS Stock No.:
- 287-8104
- Mfr. Part No.:
- 102991834
- Brand:
- Beagleboard.org
- COO (Country of Origin):
- CN

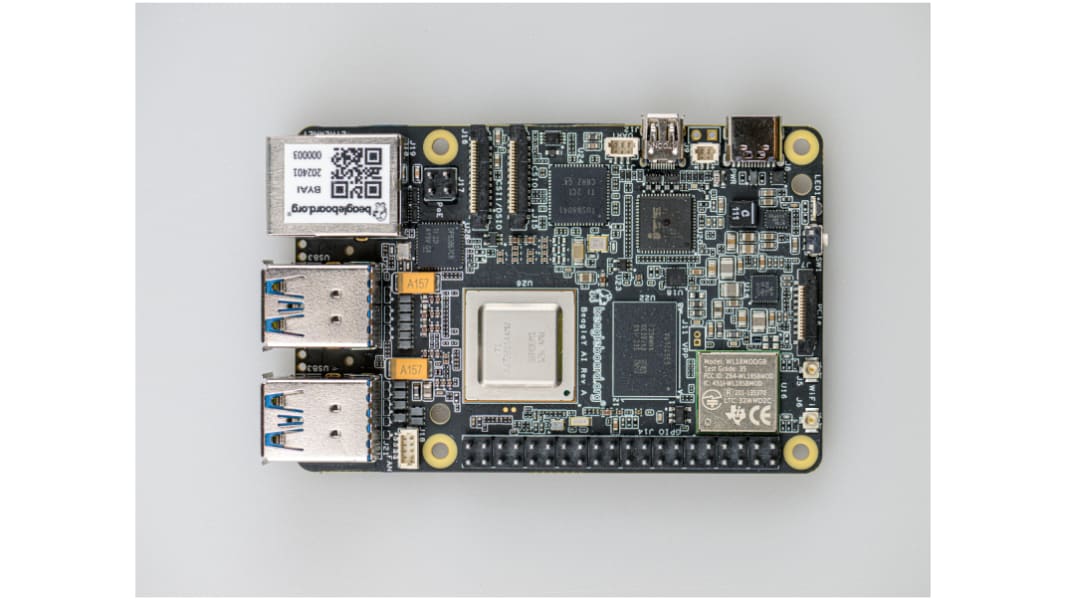

The BeagleY-AI from beagleboard.org is an advanced open-source single board computer specifically designed for edge AI applications. Built around the powerful Texas Instruments AM67A Arm-based vision processor, BeagleY-AI delivers exceptional performance and versatility for a wide range of applications.
Performance and Specifications
At the heart of BeagleY-AI is the Texas Instruments AM67A processor
Quad-core 64-bit Arm® Cortex®-A53 CPU subsystem running at 1.4GHz
Dual general-purpose C7x DSPs with Matrix Multiply Accelerator (MMA) providing 4 TOPs each
Arm Cortex-R5 subsystem for low-latency I/O and control
50 GFlop GPU
Video and vision accelerators
The AM67A processor is part of the Jacinto™ 7 architecture, optimized for Smart Vision Camera and General Compute applications. It integrates high-performance computing technology, perfect for both traditional and deep learning algorithms, while maintaining industry-leading power/performance ratios and system integration for scalability and cost efficiency.
Key Features
Familiar Form-Factor: Compatible with a wide range of accessories, ensuring flexibility and ease of use.
Edge AI Acceleration: Delivers 4 TOPS of Edge AI acceleration on a fan-less computing platform.
Trusted Components: Developed in collaboration with industry leaders Texas Instruments, BeagleBoard.org, and Seeed Studio.
Potential Applications of BeagleY-AI
Human Machine Interface (HMI)
Hospital Patient Monitoring
Industrial PCs
Building Security Systems
Off-Highway Vehicles
Test and Measurement Equipment
Energy Storage Systems
Video Surveillance
Machine Vision
Industrial Mobile Robots (AGV/AMR)
Front Camera Systems
Elevate your projects with BeagleY-AI, the robust and versatile solution for all your edge AI computing needs.
Technical Specifications
Processor: Texas Instruments AM67A, Quad 64-bit Arm® Cortex®-A53 @1.4 GHz, multiple cores including Arm/GPU processors, DSP, and vision/deep learning accelerators
RAM: 4GB LPDDR4
Wi-Fi: Beagleboard BM3301, 802.11ax Wi-Fi
Bluetooth: Bluetooth Low Energy 5.4 (BLE)
USB Ports: 4 x USB 3.0 TypeA ports supporting simultaneous 5Gbps operation, 1 x USB 2.0 TypeC, supports USB 2.0 device mode
Ethernet: Gigabit Ethernet, with PoE+ support (requires separate PoE HAT)
Camera/Display: 2 x 4-lane MIPI camera connector (one connector muxed with DSI capability)
Display Output: 1 x HDMI display, 1 x OLDI display, 1 x DSI MIPI Display
Real-time Clock (RTC): Supports external coin-cell battery for power failure time retention
Debug UART: 1 x 3-pin debug UART
Power: 5V/3A DC power via USB-C
Power Button: On/Off included
PCIe Interface: PCI-Express® Gen3 x 1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
Expansion Connector: 40-pin header
Fan connector: 1 x 4-pin fan connector, supports PWM control and fan speed measurement
Storage: microSD card slot with UHS-1 support
Tag Connect: 1 x JTAG, 1 x External PMIC programming port
Attribute | Value |
|---|---|
| Product Name | BeagleY - AI |
