Banner TL30F Series Red/Green/Yellow Signal Tower, 3 Lights, 18 → 30 V dc, Horizontal Mount, Vertical Mount
- RS Stock No.:
- 865-5059
- Mfr. Part No.:
- TL30FWBGYRQ
- Brand:
- Banner
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£169.58
(exc. VAT)
£203.50
(inc. VAT)
- RS Stock No.:
- 865-5059
- Mfr. Part No.:
- TL30FWBGYRQ
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Series | TL30F | |
| Number of Light Elements | 3 | |
| Lens Colour | Red/Green/Yellow | |
| Bulb Type | LED | |
| LED Colour | Red/Yellow/Green | |
| Sounder Component | No Sounder Component | |
| Mounting Style | Horizontal Mount, Vertical Mount | |
| Height | 128.1mm | |
| Supply Voltage | 18 → 30 V dc | |
| Connection Type | Integral Quick Disconnect | |
| Maximum Temperature | +50°C | |
| Minimum Temperature | -40°C | |
| Current Consumption | 18mA | |
| Housing Colour | Black | |
Select all | ||
|---|---|---|
Brand Banner | ||
Series TL30F | ||
Number of Light Elements 3 | ||
Lens Colour Red/Green/Yellow | ||
Bulb Type LED | ||
LED Colour Red/Yellow/Green | ||
Sounder Component No Sounder Component | ||
Mounting Style Horizontal Mount, Vertical Mount | ||
Height 128.1mm | ||
Supply Voltage 18 → 30 V dc | ||
Connection Type Integral Quick Disconnect | ||
Maximum Temperature +50°C | ||
Minimum Temperature -40°C | ||
Current Consumption 18mA | ||
Housing Colour Black | ||
- COO (Country of Origin):
- US

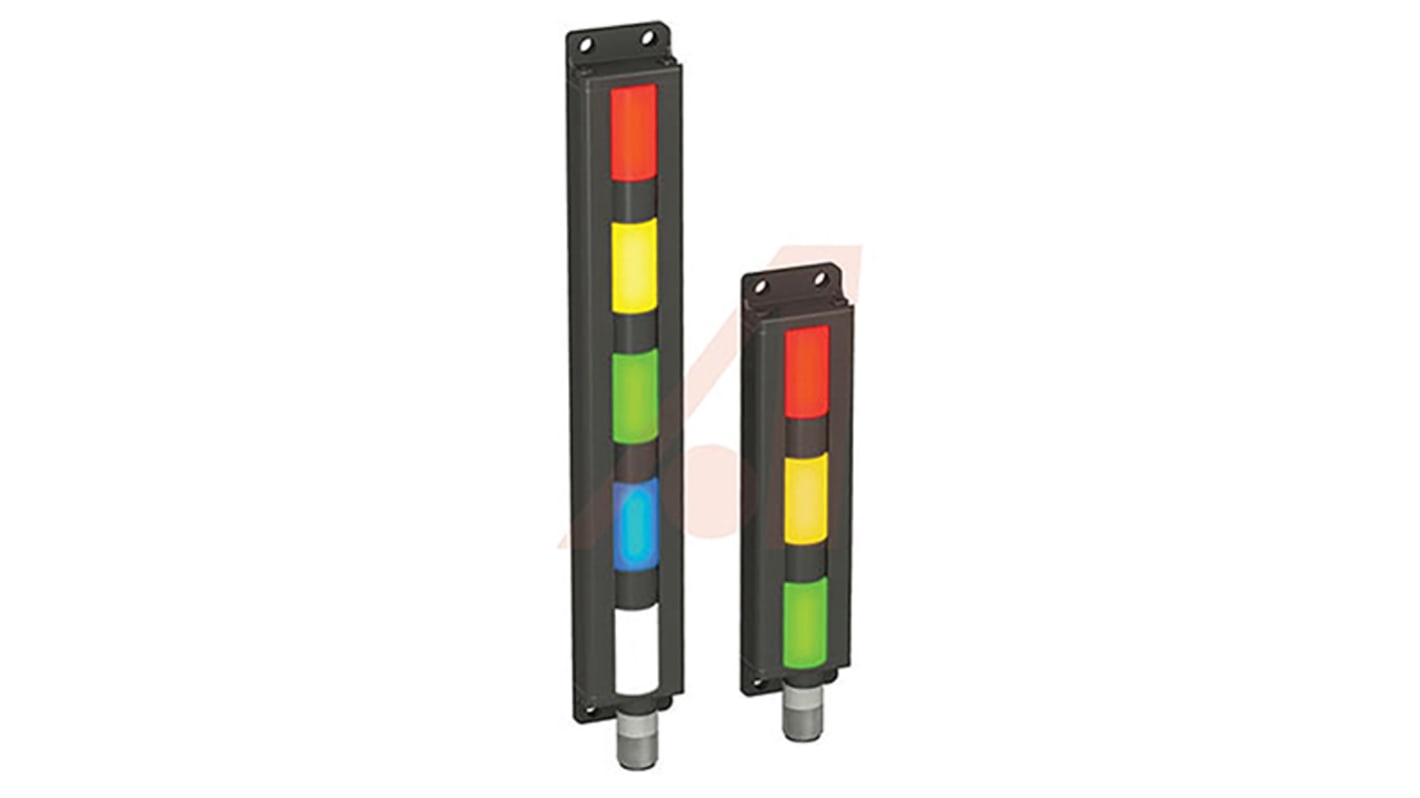

Turck TL30F Flat Mount Tower Light
Turck TL30F series flat mount LED tower lights are a rugged aluminium housing multi-colour light tower. The TL30F LED signal towers are a completely self-contained unit that do not require a separate controller. TL30F LED signal towers are available with three or five colour lights and a 2m cable or 4-pin euro quick disconnect connector.
Rugged, cost-effective and easy-to-install multi segment indicators
Illuminated segments provide easy-to-see operator guidance and indication of equipment status
Compact size
Completely self-contained — no controller needed
Immune to ambient light, EMI and RFI interference
18 to 30V dc or 21 to 27V ac operation
No assembly required
Illuminated segments provide easy-to-see operator guidance and indication of equipment status
Compact size
Completely self-contained — no controller needed
Immune to ambient light, EMI and RFI interference
18 to 30V dc or 21 to 27V ac operation
No assembly required
