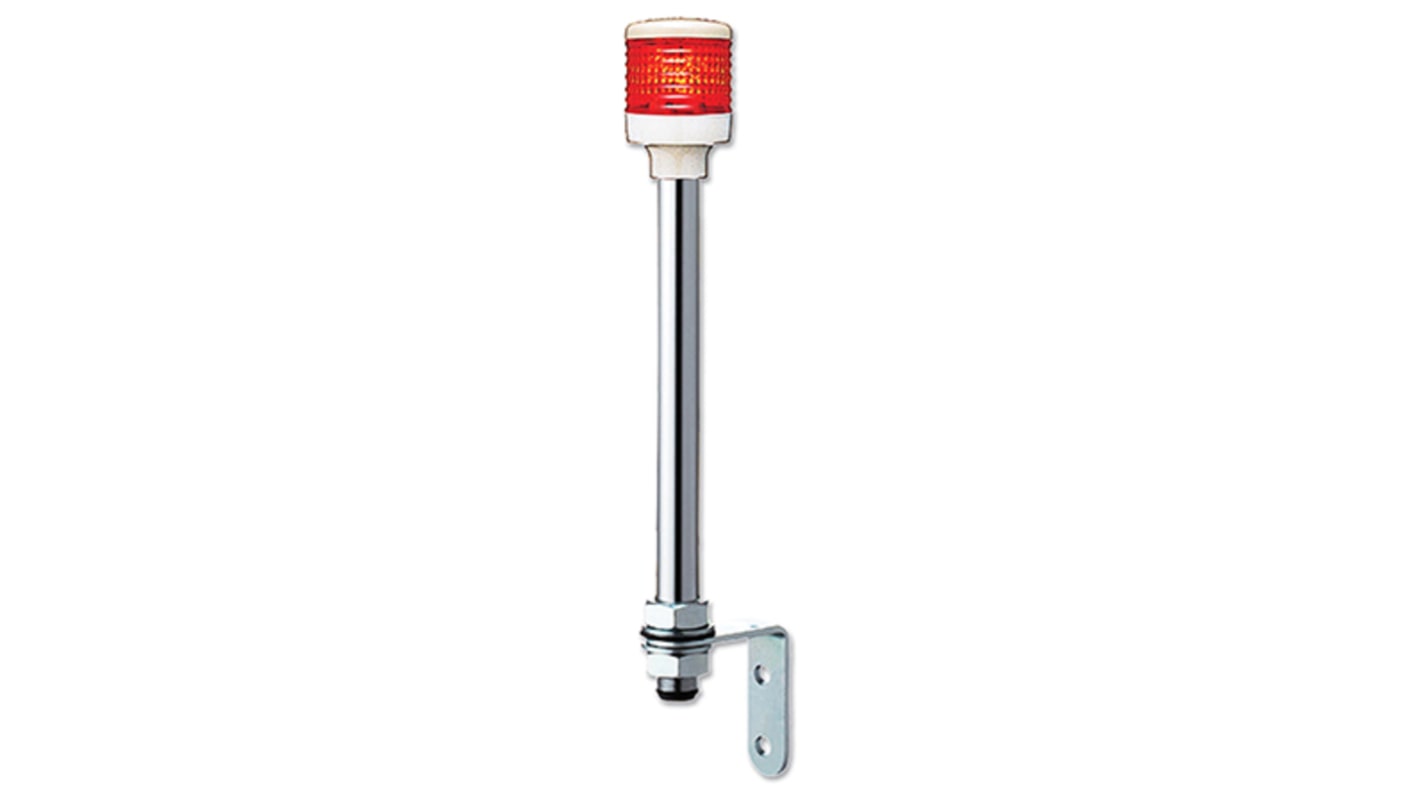

Schneider Electric Harmony XVC Series Red Signal Tower, 1 Lights, 100 → 240 V ac, Tube Mount
- RS Stock No.:
- 814-5189
- Mfr. Part No.:
- XVC4M1
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 814-5189
- Mfr. Part No.:
- XVC4M1
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony XVC | |
| Number of Light Elements | 1 | |
| Lens Colour | Red | |
| Bulb Type | LED | |
| LED Colour | Red | |
| Light Effect | Steady | |
| Sounder Component | No Sounder Component | |
| Mounting Style | Tube Mount | |
| Height | 403.5mm | |
| Base Diameter | 40mm | |
| Connection Cable Length | 600mm | |
| IP Rating | IP23, IP54 | |
| Supply Voltage | 100 → 240 V ac | |
| Connection Type | Cable | |
| Minimum Temperature | -10°C | |
| Current Consumption | 30mA | |
| Maximum Temperature | +50°C | |
| Housing Colour | White | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony XVC | ||
Number of Light Elements 1 | ||
Lens Colour Red | ||
Bulb Type LED | ||
LED Colour Red | ||
Light Effect Steady | ||
Sounder Component No Sounder Component | ||
Mounting Style Tube Mount | ||
Height 403.5mm | ||
Base Diameter 40mm | ||
Connection Cable Length 600mm | ||
IP Rating IP23, IP54 | ||
Supply Voltage 100 → 240 V ac | ||
Connection Type Cable | ||
Minimum Temperature -10°C | ||
Current Consumption 30mA | ||
Maximum Temperature +50°C | ||
Housing Colour White | ||
- COO (Country of Origin):
- ID
Schneider Electric Beacon Tower - Harmony HVC4
Forming part of the Harmony XVC4 series are a number of signal towers and accessories that have been created and designed for but not limited to machine signalling in the food processing and medical sector. These towers are commonly referred to as a beacon or a signalling solution.
Features & Benefits
- Facilitates long-distance indication for machines
- Suitable for a multitude of sectors ie: Semiconductor factories, conveyor belts, small food and drink dispensing machines alongside industrial and commercial sectors
- The HVC4 range features an ingress protection of IP54, this allows for the devices to be used in an external location as well as an internal environment
- The whole XVC tower light range is supplied with either 1, 2, 3, 4 or 5 illuminated signalling units. They can be supplied with or without a buzzer or siren, pre-assembled and pre-wired or fitted with a support tube and bracket for mounting on to a vertical support
- Standards - EN/IEC 61000-6-2, EN/IEC 61000-6-3, Class I conforming to EN/IEC 61140
- Approvals - CE, UL, CSA, CCC and Gost in progress
- Fixing plates are available for support tube mounting: 704-3830 and 704-3827
