Moflash LED TL Series LED Beacon, 3 Lights, 8 → 20 V ac/dc, Wall Mount
- RS Stock No.:
- 122-6701
- Mfr. Part No.:
- LED-TL-01-02-01-04
- Brand:
- Moflash
Subtotal (1 unit)*
£270.84
(exc. VAT)
£325.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £270.84 |
*price indicative
- RS Stock No.:
- 122-6701
- Mfr. Part No.:
- LED-TL-01-02-01-04
- Brand:
- Moflash
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Moflash | |
Series | LED TL | |
Number of Light Elements | 3 | |
Bulb Type | LED | |
LED Colour | Amber, Green, Red | |
Mounting Style | Wall Mount | |
Height | 392.5mm | |
Base Diameter | 147.5mm | |
Supply Voltage | 8 → 20 V ac/dc | |
Connection Type | M16 Connector | |
IP Rating | IP65 | |
Maximum Temperature | +55°C | |
Special Features | Dust Proof, Low Current Consumption, Water Resistant | |
Housing Colour | Black | |
Current Consumption | 720mA | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Moflash | ||
Series LED TL | ||
Number of Light Elements 3 | ||
Bulb Type LED | ||
LED Colour Amber, Green, Red | ||
Mounting Style Wall Mount | ||
Height 392.5mm | ||
Base Diameter 147.5mm | ||
Supply Voltage 8 → 20 V ac/dc | ||
Connection Type M16 Connector | ||
IP Rating IP65 | ||
Maximum Temperature +55°C | ||
Special Features Dust Proof, Low Current Consumption, Water Resistant | ||
Housing Colour Black | ||
Current Consumption 720mA | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- GB
Moflash Industrial LED Traffic Light - TL Series
Professional range of Moflash industrial LED beacons from the TL series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solution are required. Suitable applications include car park management, factory traffic control, automatic gate or door control systems. The beacons require external input signals or PLC controls to switch visual indication functions. Suitable for indoor or outdoor applications. The beacons can be surface mounted onto any flat vertical surface or conduit boxes.
Continuously rated
IP65 Rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure
IP65 Rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure
Moflash Traffic Light Beacon, LED, 8 to 20V AC/DC - LED TL Series - LED-TL-01-02-01-04

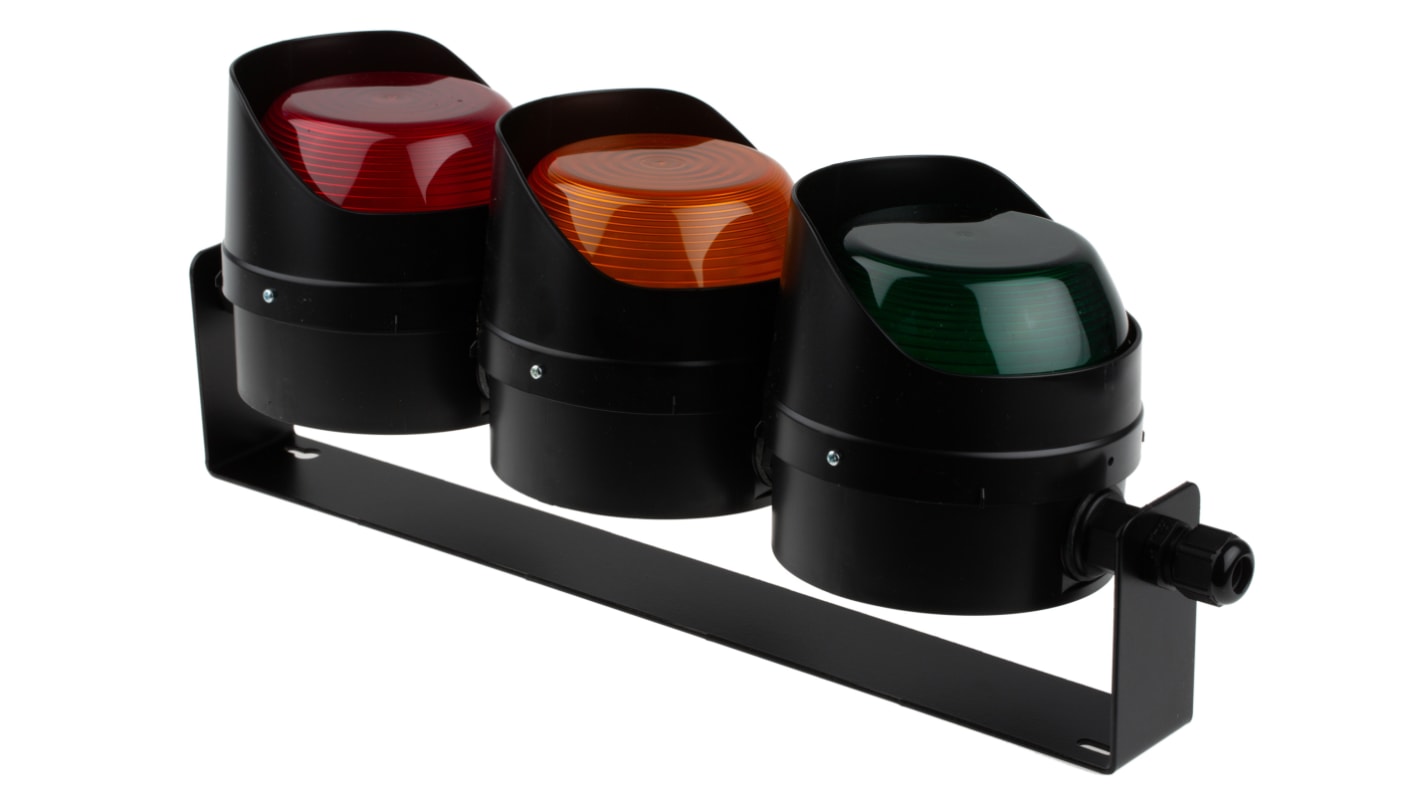

This triple LED (light-emitting diode) beacon assembly from Moflash provides clear, colour-coordinated signalling. It's designed for use as a traffic light to enhance road safety on private roads and in factories. It has one red light to tell traffic to stop, one amber light to signal preparation and one green light to tell traffic to go. The three LEDs have a low current consumption of just 720mA at 12V DC, ensuring energy-efficient operation and a long service life.
Features & Benefits
• PC (polycarbonate) lens and shroud material prevents ultraviolet (UV) rays from fading the lens colour
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Semi-circular light ensures signals are visible at a 180° angle for wide visibility
• Built-in wall bracket for quick and secure mounting to a wall or other surface
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Semi-circular light ensures signals are visible at a 180° angle for wide visibility
• Built-in wall bracket for quick and secure mounting to a wall or other surface
Applications
• Factory vehicle traffic
• Car parks
• Automated gates
• Car parks
• Automated gates
Can this signal tower withstand cold outdoor temperatures?
Yes, this signal tower can operate in temperatures as low as -25°C. This means you can leave it permanently outdoors, even in winter.
