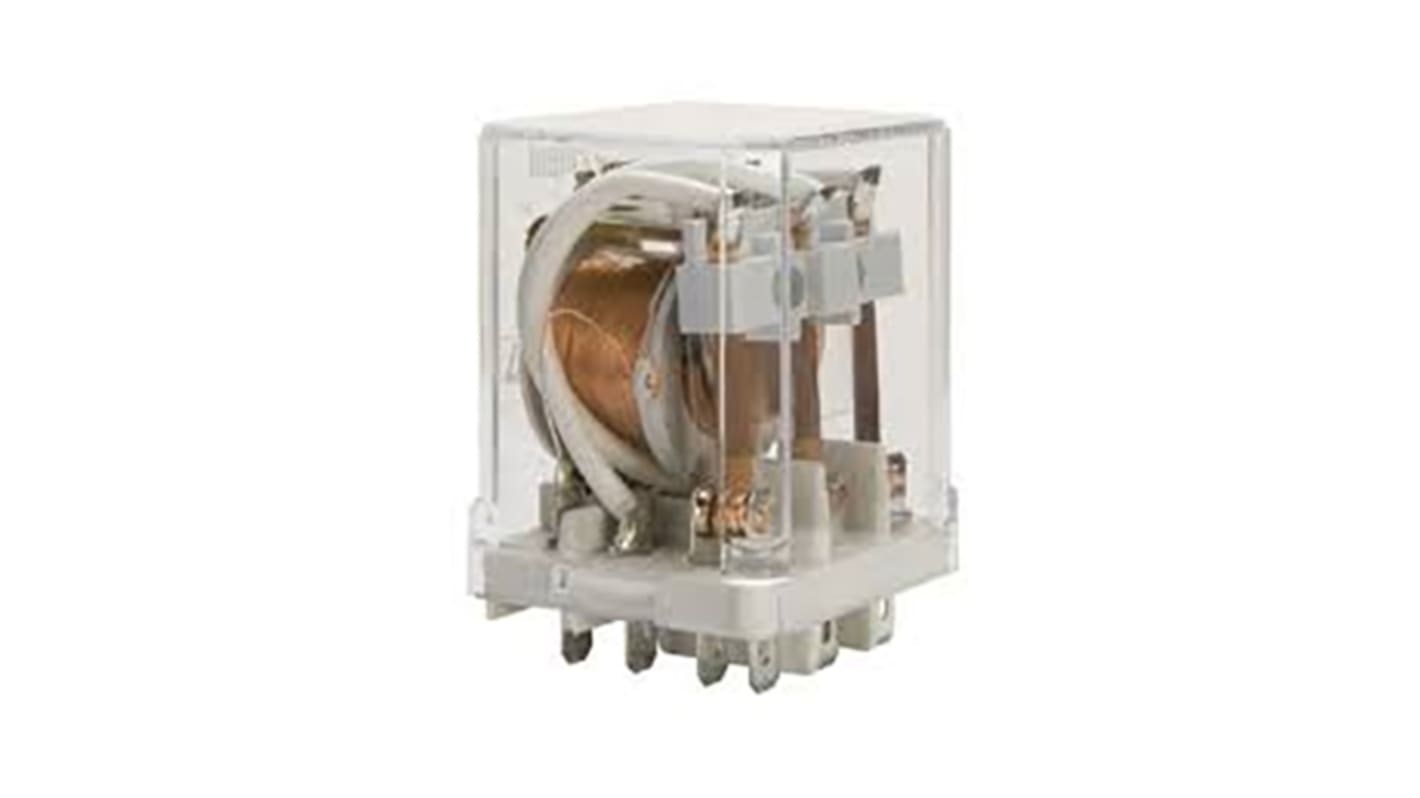

Relpol Plug In Latching Relay, 26.4V dc Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 914-3985
- Mfr. Part No.:
- RUC-1013-26-1024
- Brand:
- Relpol
- RS Stock No.:
- 914-3985
- Mfr. Part No.:
- RUC-1013-26-1024
- Brand:
- Relpol
Select all | Attribute | Value |
|---|---|---|
| Brand | Relpol | |
| Coil Voltage | 26.4V dc | |
| Contact Configuration | 3PDT | |
| Mounting Type | Plug In | |
| Maximum Switching Voltage AC | 440V | |
| Maximum Switching Voltage DC | 24V | |
| Maximum Switching Power DC | 1.5 W | |
| Length | 38.6mm | |
| Depth | 36.1mm | |
| Height | 45.5mm | |
| Dimensions | 38.6 x 36.1 x 45.5mm | |
| Terminal Type | Faston | |
| Application | Automation, Catering, Control with Single Phase Motors, Electromagnets, HVAC, Photoelectric Systems | |
| Switching Current | 16A | |
| Number of Poles | 3 | |
| Life | >10⁷ cycles | |
| Electrical Life | >10^5 cycles | |
| Maximum Switching Power AC | 2.8 VA | |
| Coil Resistance | 430 Ω | |
| Operating Temperature Range | -40 → +55°C | |
| Features | AC and DC Coils | |
| Contact Material | Silver Alloy | |
| Standards Met | CE, CIK, CSA, EAC, UL | |
| Relay Switching Classification | Latching Relay | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +55°C | |
| Isolation Coil To Contact | 2.5kV ac | |
| Coil Power | 1.5W | |
Select all | ||
|---|---|---|
Brand Relpol | ||
Coil Voltage 26.4V dc | ||
Contact Configuration 3PDT | ||
Mounting Type Plug In | ||
Maximum Switching Voltage AC 440V | ||
Maximum Switching Voltage DC 24V | ||
Maximum Switching Power DC 1.5 W | ||
Length 38.6mm | ||
Depth 36.1mm | ||
Height 45.5mm | ||
Dimensions 38.6 x 36.1 x 45.5mm | ||
Terminal Type Faston | ||
Application Automation, Catering, Control with Single Phase Motors, Electromagnets, HVAC, Photoelectric Systems | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Life >10⁷ cycles | ||
Electrical Life >10^5 cycles | ||
Maximum Switching Power AC 2.8 VA | ||
Coil Resistance 430 Ω | ||
Operating Temperature Range -40 → +55°C | ||
Features AC and DC Coils | ||
Contact Material Silver Alloy | ||
Standards Met CE, CIK, CSA, EAC, UL | ||
Relay Switching Classification Latching Relay | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 2.5kV ac | ||
Coil Power 1.5W | ||
- COO (Country of Origin):
- PL
RUC Series & Accessories
6.3 mm Faston Connections
Contact Material: AgCdO
