- RS Stock No.:
- 789-7570
- Mfr. Part No.:
- G6AK-234P-ST-US 5DC
- Brand:
- Omron
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£5.61
(exc. VAT)
£6.73
(inc. VAT)
Units | Per unit |
1 - 9 | £5.61 |
10 - 24 | £5.51 |
25 - 99 | £5.34 |
100 - 249 | £5.20 |
250 + | £4.94 |
- RS Stock No.:
- 789-7570
- Mfr. Part No.:
- G6AK-234P-ST-US 5DC
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

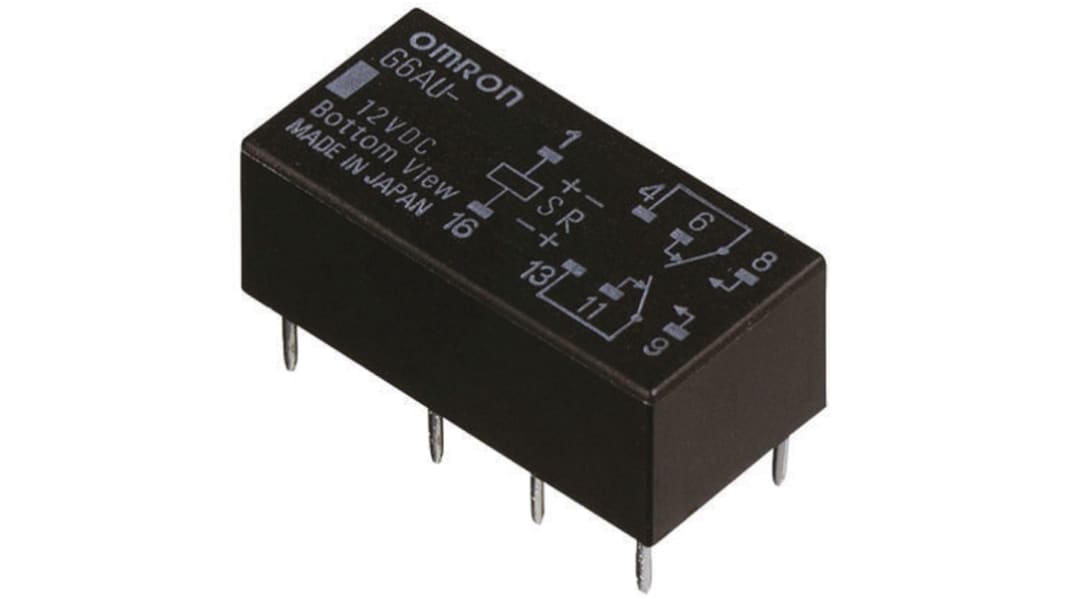

G6A Series DPCO Latching
Fully sealed
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Coil Voltage | 5V dc |
Contact Configuration | DPDT |
Mounting Type | PCB Mount |
Maximum Switching Current AC | 3 A |
Maximum Switching Current DC | 3 A |
Maximum Switching Voltage AC | 250V ac |
Maximum Switching Voltage DC | 220V dc |
Latching | Yes |
Length | 20.2mm |
Depth | 10.1mm |
Height | 8mm |
Dimensions | 20.2 x 10.1 x 8mm |
Terminal Type | Through Hole |
Switching Current | 3A |
Application | Signal |
Life | 100 Million (Mechanical) operations, 500000 (Electrical) operations |
Coil Power | 180mW |
Features | Permanent Magnet Armature |
Operating Temperature Range | -40 → +70°C |
Coil Resistance | 139Ω |
Electrical Life | 500000 Operations |
Isolation Coil To Contact | 1kV ac |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -40°C |
