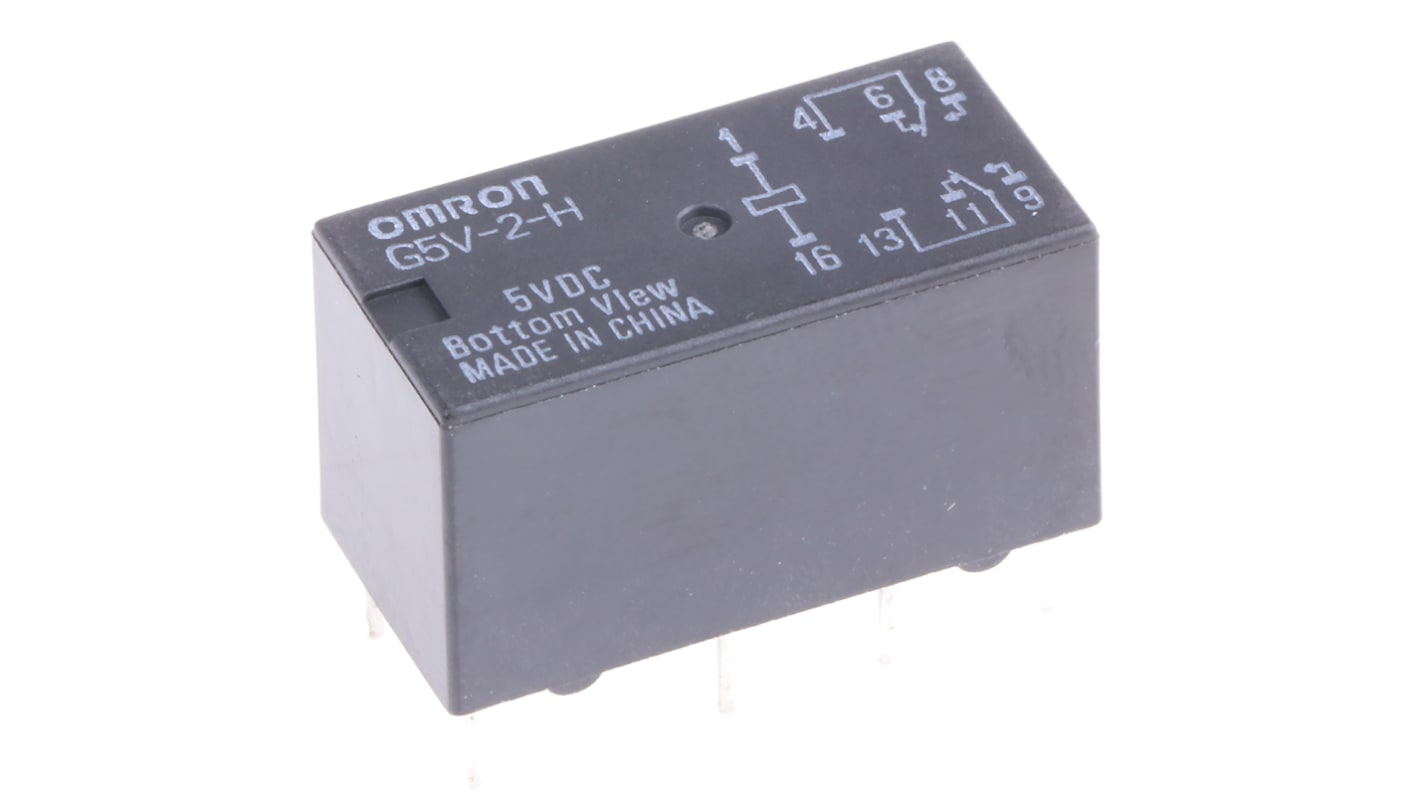

Omron PCB Mount Signal Relay, 5V dc Coil, 1A Switching Current, DPDT
- RS Stock No.:
- 683-9283
- Mfr. Part No.:
- G5V-2-H 5DC
- Brand:
- Omron
Subtotal (1 pack of 5 units)*
£13.99
(exc. VAT)
£16.79
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 5 unit(s) shipping from 17 November 2025
- Plus 10 unit(s) shipping from 24 November 2025
- Plus 60 unit(s) shipping from 01 May 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £2.798 | £13.99 |
| 125 - 245 | £2.544 | £12.72 |
| 250 - 495 | £2.334 | £11.67 |
| 500 - 1245 | £2.154 | £10.77 |
| 1250 + | £2.09 | £10.45 |
*price indicative
- RS Stock No.:
- 683-9283
- Mfr. Part No.:
- G5V-2-H 5DC
- Brand:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 1 A | |
| Maximum Switching Voltage AC | 125V | |
| Maximum Switching Voltage DC | 125V | |
| Series | Cradle N | |
| Maximum Switching Power DC | 24 W | |
| Latching | No | |
| Length | 20.5mm | |
| Depth | 10mm | |
| Height | 11.5mm | |
| Dimensions | 20.5 x 10 x 11.5mm | |
| Terminal Type | Through Hole | |
| Number of Poles | 2 | |
| Application | Signal | |
| Switching Current | 1A | |
| Isolation Coil To Contact | 1kV ac | |
| Maximum Operating Temperature | +70°C | |
| Electrical Life | 10^5 Operations | |
| Coil Power | 150mW | |
| Maximum Switching Power AC | 62.5VA | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Gold Plated | |
| Features | Conforms to FCC Part 68 Requirements, Bifurcated Contacts | |
| Operating Temperature Range | -25 → +70°C | |
| Coil Resistance | 166Ω | |
| Life | 15000000 (Electrical) cycles | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 1 A | ||
Maximum Switching Voltage AC 125V | ||
Maximum Switching Voltage DC 125V | ||
Series Cradle N | ||
Maximum Switching Power DC 24 W | ||
Latching No | ||
Length 20.5mm | ||
Depth 10mm | ||
Height 11.5mm | ||
Dimensions 20.5 x 10 x 11.5mm | ||
Terminal Type Through Hole | ||
Number of Poles 2 | ||
Application Signal | ||
Switching Current 1A | ||
Isolation Coil To Contact 1kV ac | ||
Maximum Operating Temperature +70°C | ||
Electrical Life 10^5 Operations | ||
Coil Power 150mW | ||
Maximum Switching Power AC 62.5VA | ||
Minimum Operating Temperature -25°C | ||
Contact Material Gold Plated | ||
Features Conforms to FCC Part 68 Requirements, Bifurcated Contacts | ||
Operating Temperature Range -25 → +70°C | ||
Coil Resistance 166Ω | ||
Life 15000000 (Electrical) cycles | ||
- COO (Country of Origin):
- CN
G5V-2-H Series
H1 types are ultra high sensitivity
Fully sealed
Conform to FCC Part 68 requirements
Approvals
