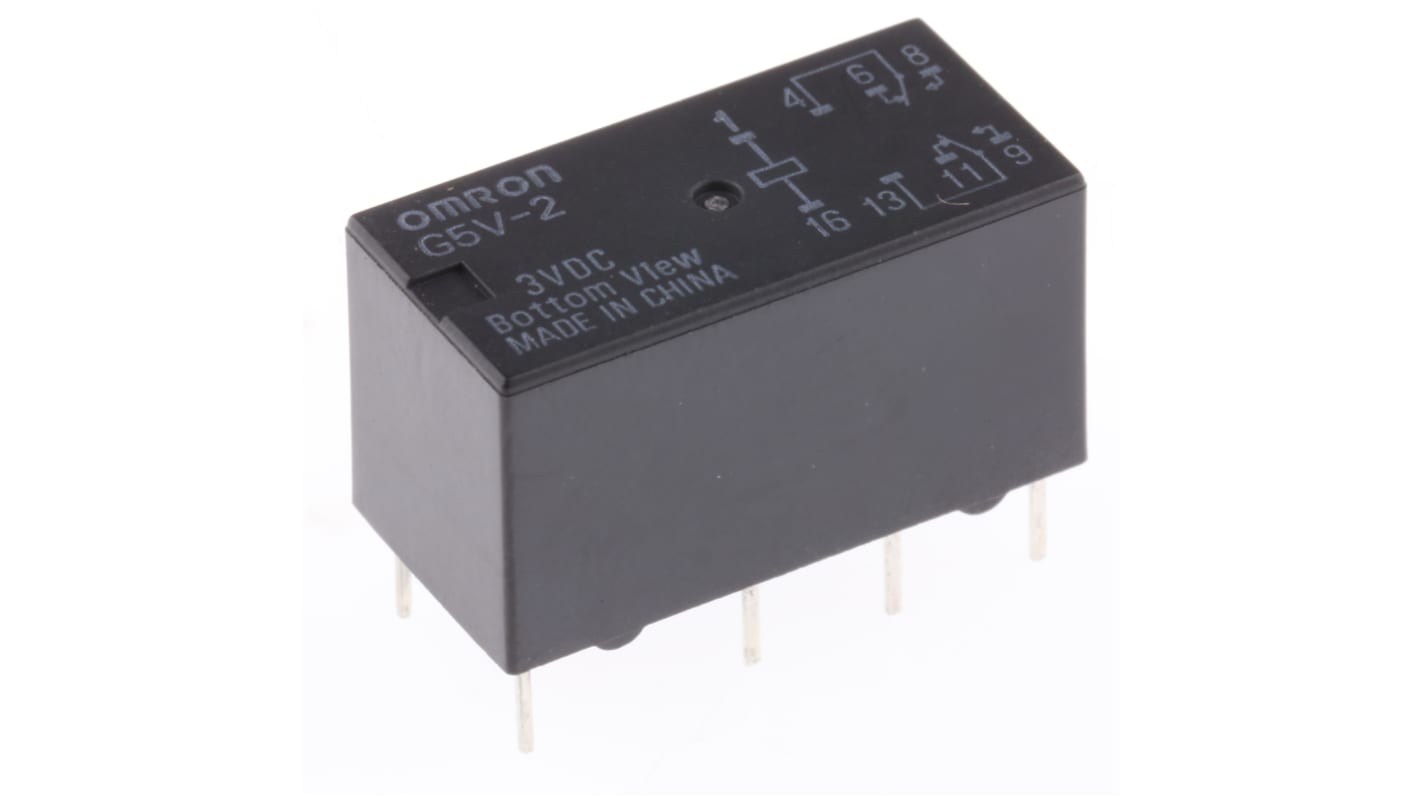

Omron PCB Signal Relay, 3V dc Coil, 2A, DPDT
- RS Stock No.:
- 683-9264
- Mfr. Part No.:
- G5V-2 3DC
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£13.08
(exc. VAT)
£15.695
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 125 unit(s) shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £2.616 | £13.08 |
| 125 - 245 | £2.482 | £12.41 |
| 250 - 495 | £2.356 | £11.78 |
| 500 - 1245 | £2.22 | £11.10 |
| 1250 + | £2.092 | £10.46 |
*price indicative
- RS Stock No.:
- 683-9264
- Mfr. Part No.:
- G5V-2 3DC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Signal Relay | |
| Coil Voltage | 3V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Switching Current | 2A | |
| Switching AC Voltage | 125V ac | |
| Switching DC Voltage | 125V dc | |
| Series | MT | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 62.5VA | |
| Maximum Operating Temperature | 70°C | |
| Width | 10mm | |
| Standards/Approvals | RoHS | |
| Length | 20.2mm | |
| Height | 11mm | |
| Terminal Type | Through Hole | |
| Coil Resistance | 60Ω | |
| Contact Material | Gold Plated | |
| Coil Power | 500mW | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Signal Relay | ||
Coil Voltage 3V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Switching Current 2A | ||
Switching AC Voltage 125V ac | ||
Switching DC Voltage 125V dc | ||
Series MT | ||
Minimum Operating Temperature -25°C | ||
Switching Power 62.5VA | ||
Maximum Operating Temperature 70°C | ||
Width 10mm | ||
Standards/Approvals RoHS | ||
Length 20.2mm | ||
Height 11mm | ||
Terminal Type Through Hole | ||
Coil Resistance 60Ω | ||
Contact Material Gold Plated | ||
Coil Power 500mW | ||
- COO (Country of Origin):
- CN
G5V-2 Series
Fully sealed for immersion cleaning
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications
Approvals
UL, CSA conforms to FCC part 68
