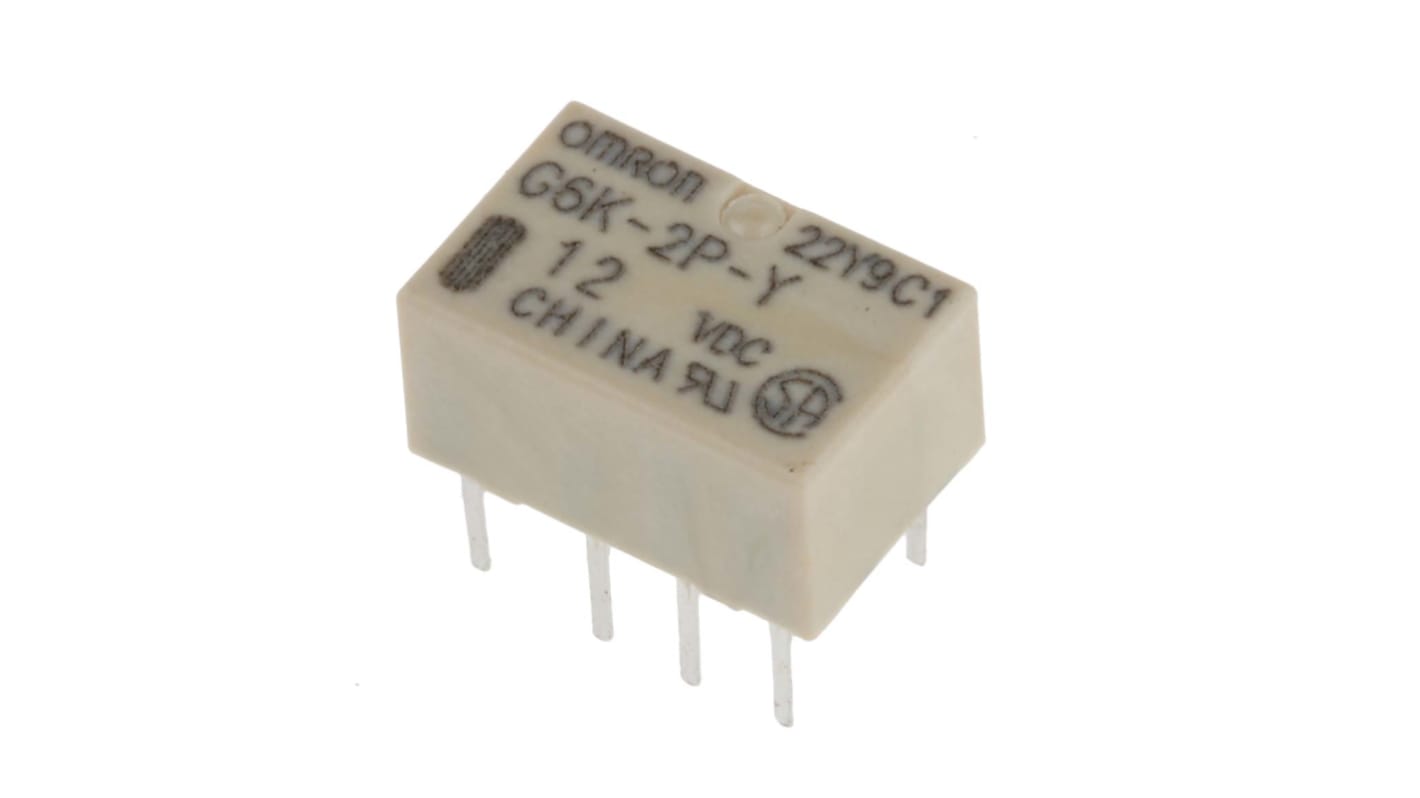

Omron PCB Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT

View all Signal Relays
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
TE Connectivity PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
RS Stock No.
718-1800

Each

£2.81

(exc. VAT)

£3.37

(inc. VAT)

RS Stock No.:
365-0456
Distrelec Article No.:
303-99-670
Mfr. Part No.:
G6K-2P-Y DC12
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Maximum Switching Current DC

1 A

Maximum Switching Voltage AC

125V ac

Maximum Switching Voltage DC

60V dc

Series

HFD4

Maximum Switching Power DC

60 W

Length

10mm

Latching

No

Depth

6.5mm

Height

5.4mm

Dimensions

10 x 6.5 x 5mm

Terminal Type

PCB Pin

Switching Current

1A

Number of Poles

2

Application

Signal

Coil Power

100mW

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-40°C

Contact Material

Silver Alloy

Isolation Coil To Contact

2.5kV ac

Features

Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint

Operating Temperature Range

-40 → +70°C

Maximum Switching Power AC

62.5VA

Life

100000 (Electrical) cycles

Coil Resistance

1300Ω

Electrical Life

100000 Operations
