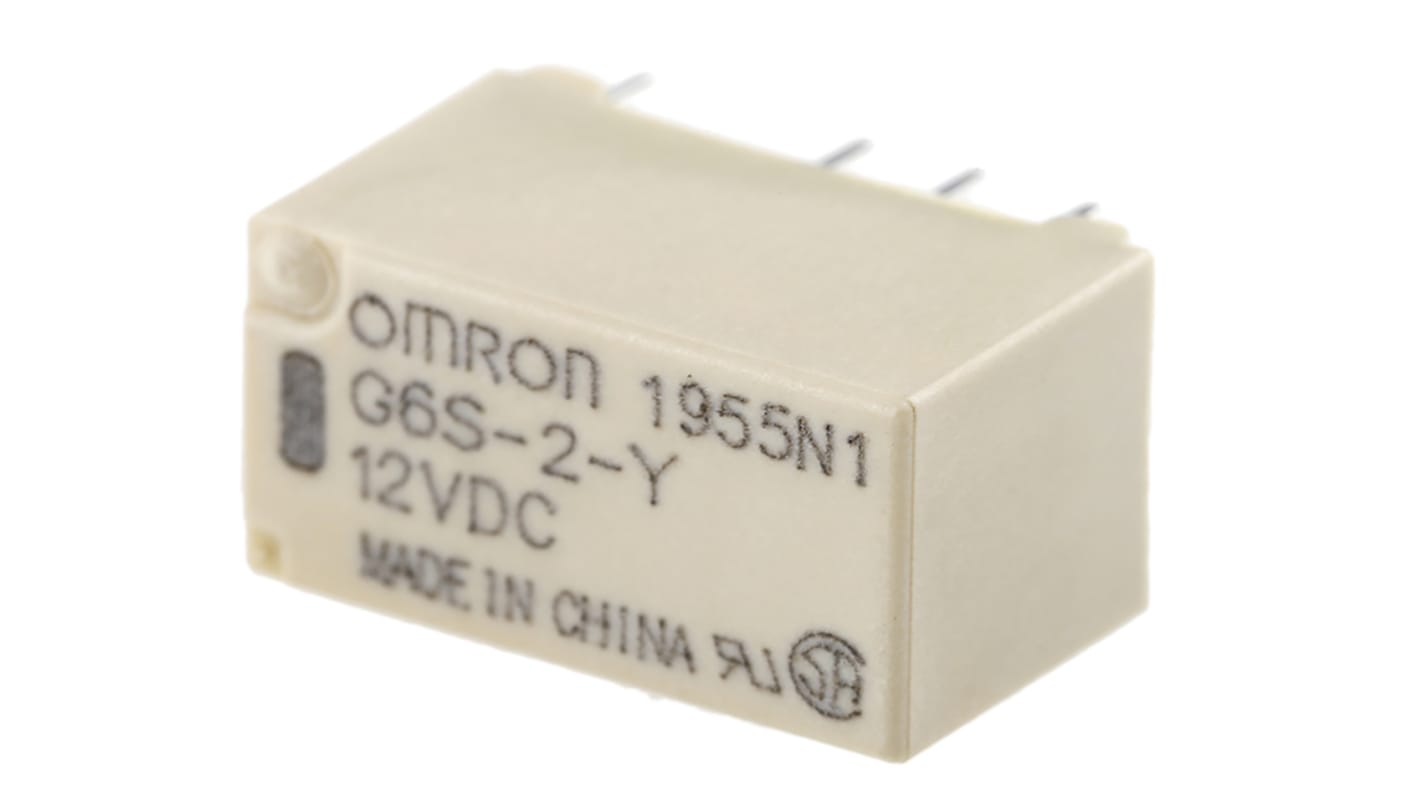

Omron PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 292-7610
- Mfr. Part No.:
- G6S-2-Y DC12
- Brand:
- Omron
126 In stock - FREE next working day delivery available
33 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.12
(exc. VAT)
£6.14
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £5.12 |
| 25 - 99 | £4.92 |
| 100 - 249 | £4.72 |
| 250 - 499 | £4.52 |
| 500 + | £4.29 |
- RS Stock No.:
- 292-7610
- Mfr. Part No.:
- G6S-2-Y DC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G6S-2Y Series
Ultra-miniature PCB relay - H9.2xW7.3xD14.8 mm
EN60950/EN41003 supplementary insulation certified
Fully sealed
Low power consumption
High dielectric strength
High impulse withstand voltage between coil and contacts and contacts of different polarity (2500V 2x10 μs: Bellcore requirements)
EN60950/EN41003 supplementary insulation certified
Fully sealed
Low power consumption
High dielectric strength
High impulse withstand voltage between coil and contacts and contacts of different polarity (2500V 2x10 μs: Bellcore requirements)
Approvals
EN 60950, EN 41003
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Series | G6S |
| Maximum Switching Power DC | 60 W |
| Length | 14.8mm |
| Latching | No |
| Depth | 7.3mm |
| Height | 9.2mm |
| Dimensions | 14.8 x 9.2 x 7.3mm |
| Terminal Type | PCB Pin |
| Application | Signal |
| Switching Current | 2A |
| Number of Poles | 2 |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 720Ω |
| Maximum Switching Power AC | 62.5VA |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Features | Space Saving Inside L Terminal, Low Power Consumption, Applicable To IRS, High Saleability After IRS |
| Coil Power | 200mW |
| Electrical Life | 100000 Operations |
