Omron Surface Latching Relay, 5V dc Coil, 1A, DPDT
- RS Stock No.:
- 254-3152
- Distrelec Article No.:
- 301-71-267
- Mfr. Part No.:
- G6SK-2F-TR DC5
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£5.60
(exc. VAT)
£6.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 373 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.60 |
| 10 - 99 | £5.41 |
| 100 - 199 | £5.32 |
| 200 - 399 | £5.13 |
| 400 + | £4.89 |
*price indicative
- RS Stock No.:
- 254-3152
- Distrelec Article No.:
- 301-71-267
- Mfr. Part No.:
- G6SK-2F-TR DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Latching Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mount Type | Surface | |
| Switching Current | 1A | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 60V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Terminal Type | Screw | |
| Height | 15mm | |
| Standards/Approvals | RoHS | |
| Width | 10mm | |
| Length | 50mm | |
| Coil Power | 140mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Latching Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mount Type Surface | ||
Switching Current 1A | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 60V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Terminal Type Screw | ||
Height 15mm | ||
Standards/Approvals RoHS | ||
Width 10mm | ||
Length 50mm | ||
Coil Power 140mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN

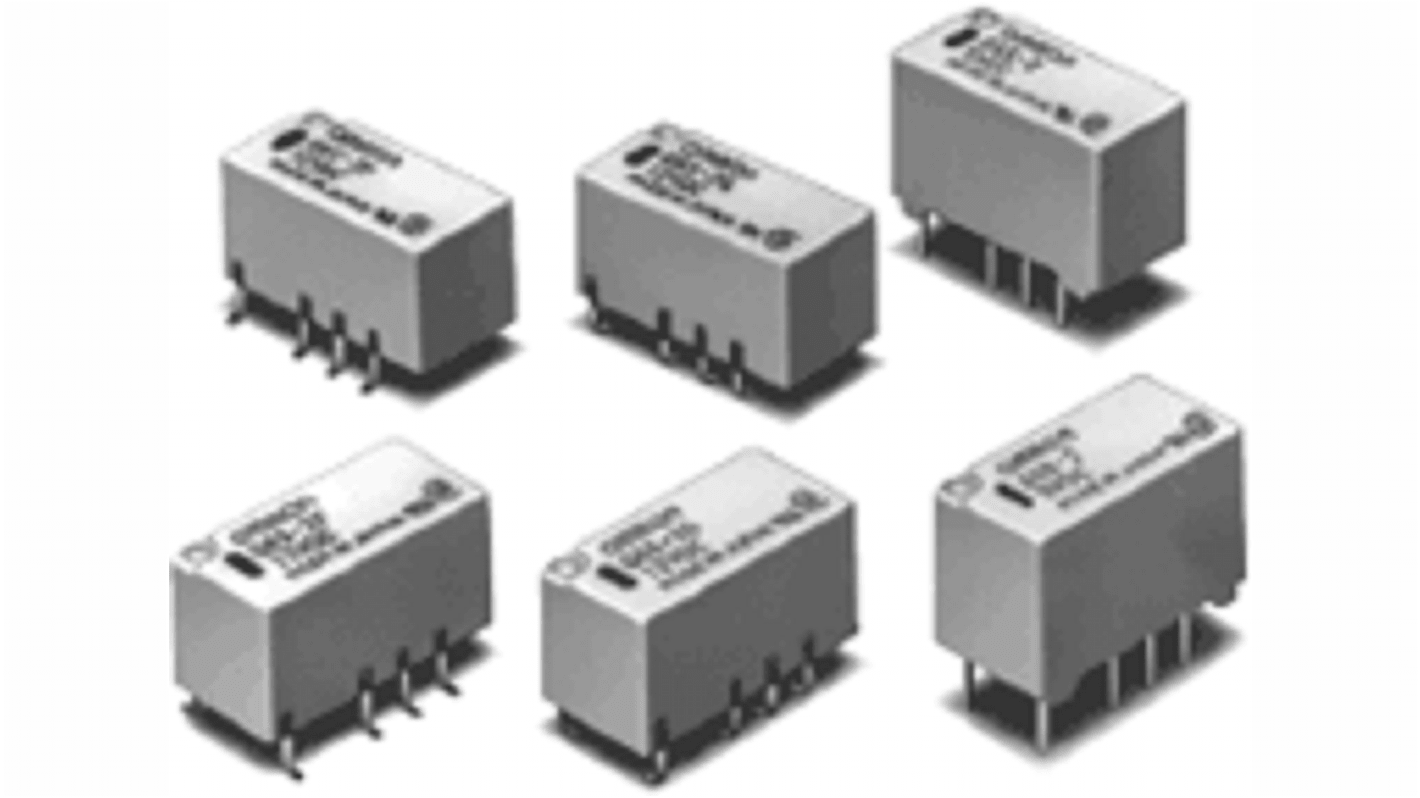

The Omron surface mounting relay is compact, industry-standard 2-pole relay, designed to switch 2A signal loads. high dielectric strength (2,000 VAC) and impulse wIthstand voltage between coil and contacts (2,500 V, 2 x 10 μs: telcordia requirements).
Contact resistance 1 75 mΩ max
Operate (set) time 4 ms max
Release (reset) time 4 ms max
Insulation resistance 2 1,000 MΩ min (at 500 VDC)
Ambient operating humidity 5% to 85%
Weight approx 2 g
