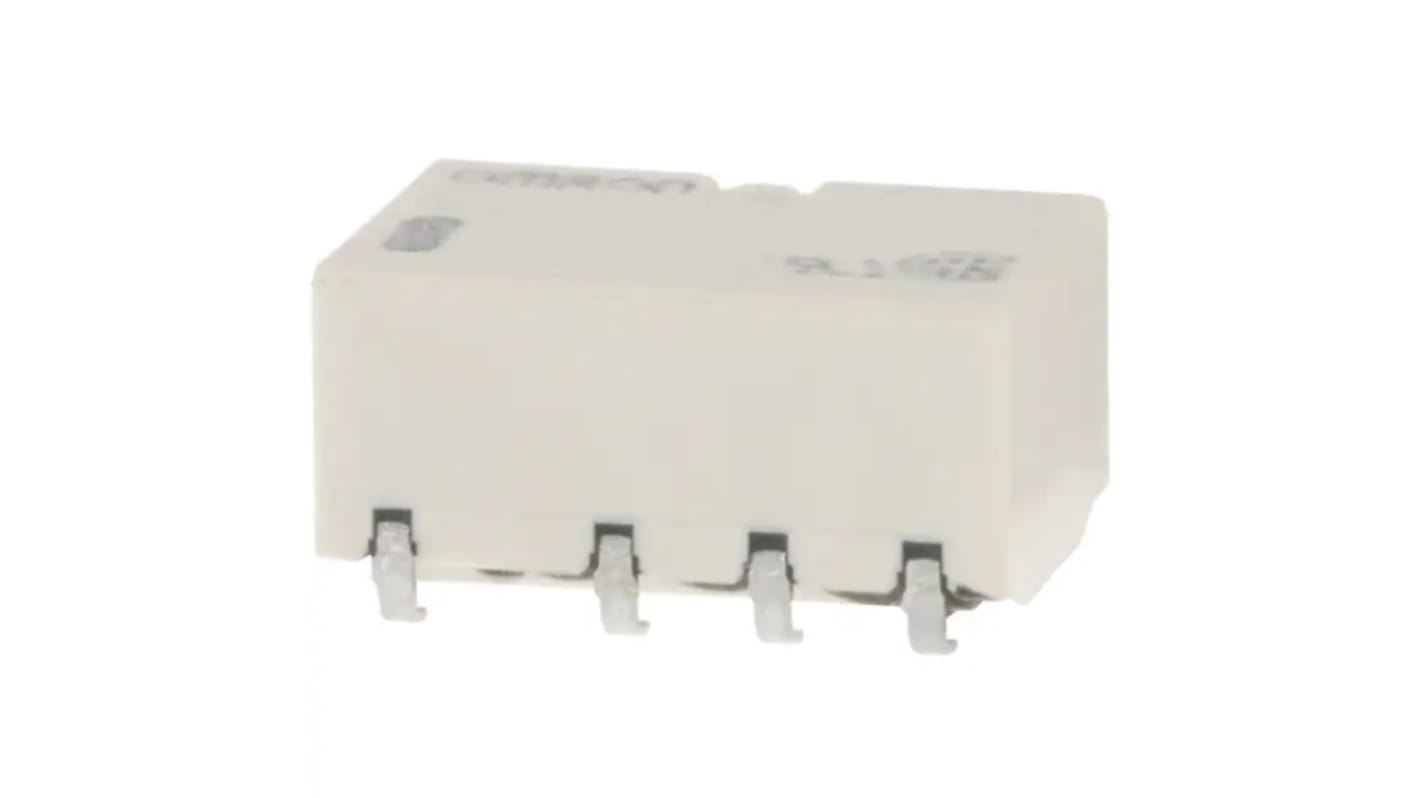

Omron Surface Signal Relay, 12V dc Coil, 1A, DPDT
- RS Stock No.:
- 213-2152
- Mfr. Part No.:
- G6K-2G-Y-TR DC12
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 213-2152
- Mfr. Part No.:
- G6K-2G-Y-TR DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Product Type | Signal Relay | |
| Contact Configuration | DPDT | |
| Mount Type | Surface | |
| Switching Current | 1A | |
| Switching AC Voltage | 125V ac | |
| Switching DC Voltage | 60V dc | |
| Series | HFD3 | |
| Switching Power | 62.5VA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Width | 6.5mm | |
| Height | 5.4mm | |
| Length | 10mm | |
| Terminal Type | Surface Mount | |
| Contact Material | Silver Alloy | |
| Coil Power | 100mW | |
| Coil Resistance | 1300Ω | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Product Type Signal Relay | ||
Contact Configuration DPDT | ||
Mount Type Surface | ||
Switching Current 1A | ||
Switching AC Voltage 125V ac | ||
Switching DC Voltage 60V dc | ||
Series HFD3 | ||
Switching Power 62.5VA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Width 6.5mm | ||
Height 5.4mm | ||
Length 10mm | ||
Terminal Type Surface Mount | ||
Contact Material Silver Alloy | ||
Coil Power 100mW | ||
Coil Resistance 1300Ω | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Omron G6K surface mounting relay has double-pole and smallest mounting area. The G6K surface mounting relay has 12Vdc coil voltage with Inside-L surface mounting terminals. The G6K surface mounting relay has applications such as telecommunication equipment, office automation machines, test and measurement equipment, building automation equipment, security equipment, industrial equipment, amusement equipment and home appliances.
Single-side stable model
Fully sealed
