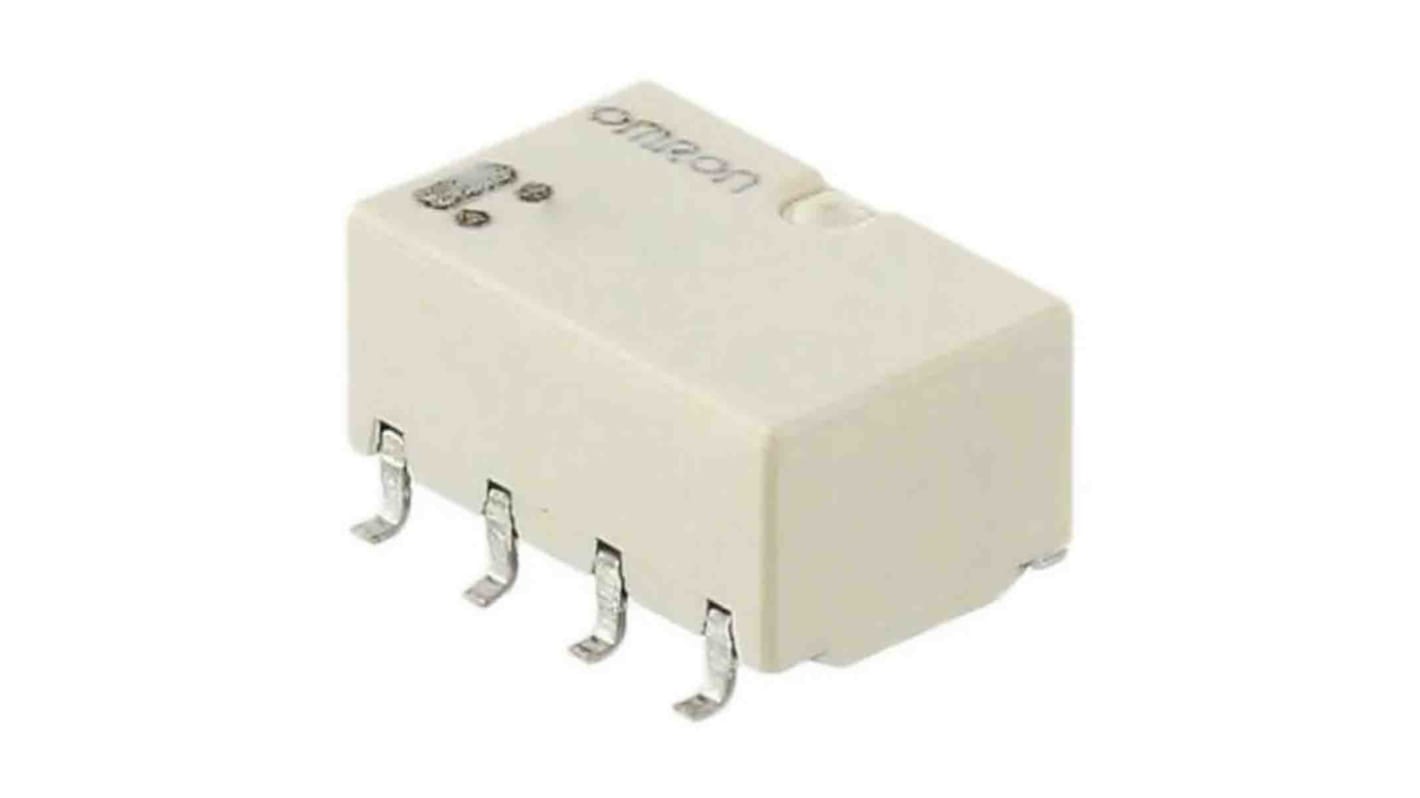

Omron Surface Mount Signal Relay, 5V dc Coil, 1A Switching Current, DPDT
- RS Stock No.:
- 205-1987
- Mfr. Part No.:
- G6K-2F-Y-TR DC5
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 205-1987
- Mfr. Part No.:
- G6K-2F-Y-TR DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Surface Mount | |
| Maximum Switching Current DC | 1 A | |
| Maximum Switching Voltage AC | 125V ac | |
| Maximum Switching Voltage DC | 60V dc | |
| Maximum Switching Power DC | 90 W | |
| Series | HFD2 | |
| Latching | No | |
| Length | 10mm | |
| Depth | 6.5mm | |
| Height | 5.2mm | |
| Dimensions | 10 x 6.5 x 5.2mm | |
| Terminal Type | Surface Mount | |
| Number of Poles | 2 | |
| Switching Current | 1A | |
| Coil Power | 100mW | |
| Minimum Operating Temperature | -40°C | |
| Electrical Life | 100000 Operations | |
| Features | Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint | |
| Maximum Switching Power AC | 125VA | |
| Operating Temperature Range | -40 → +70°C | |
| Coil Resistance | 237Ω | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 750V | |
| Contact Material | Silver | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Maximum Switching Current DC 1 A | ||
Maximum Switching Voltage AC 125V ac | ||
Maximum Switching Voltage DC 60V dc | ||
Maximum Switching Power DC 90 W | ||
Series HFD2 | ||
Latching No | ||
Length 10mm | ||
Depth 6.5mm | ||
Height 5.2mm | ||
Dimensions 10 x 6.5 x 5.2mm | ||
Terminal Type Surface Mount | ||
Number of Poles 2 | ||
Switching Current 1A | ||
Coil Power 100mW | ||
Minimum Operating Temperature -40°C | ||
Electrical Life 100000 Operations | ||
Features Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint | ||
Maximum Switching Power AC 125VA | ||
Operating Temperature Range -40 → +70°C | ||
Coil Resistance 237Ω | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 750V | ||
Contact Material Silver | ||
- COO (Country of Origin):
- CN
The Omron Electronic Components Surface Mounting Relay with the worlds smallest mounting area. This Sub miniature model is as small as 5.2 (H) x 6.5 (W) x 10 (L) mm which is ideal for high-density mounting. Surface mounting terminal models incorporate a u
5% to 85% operating humidity
-40°C to +70°C operating temperature
100mO maximum contact resistance
-40°C to +70°C operating temperature
100mO maximum contact resistance
