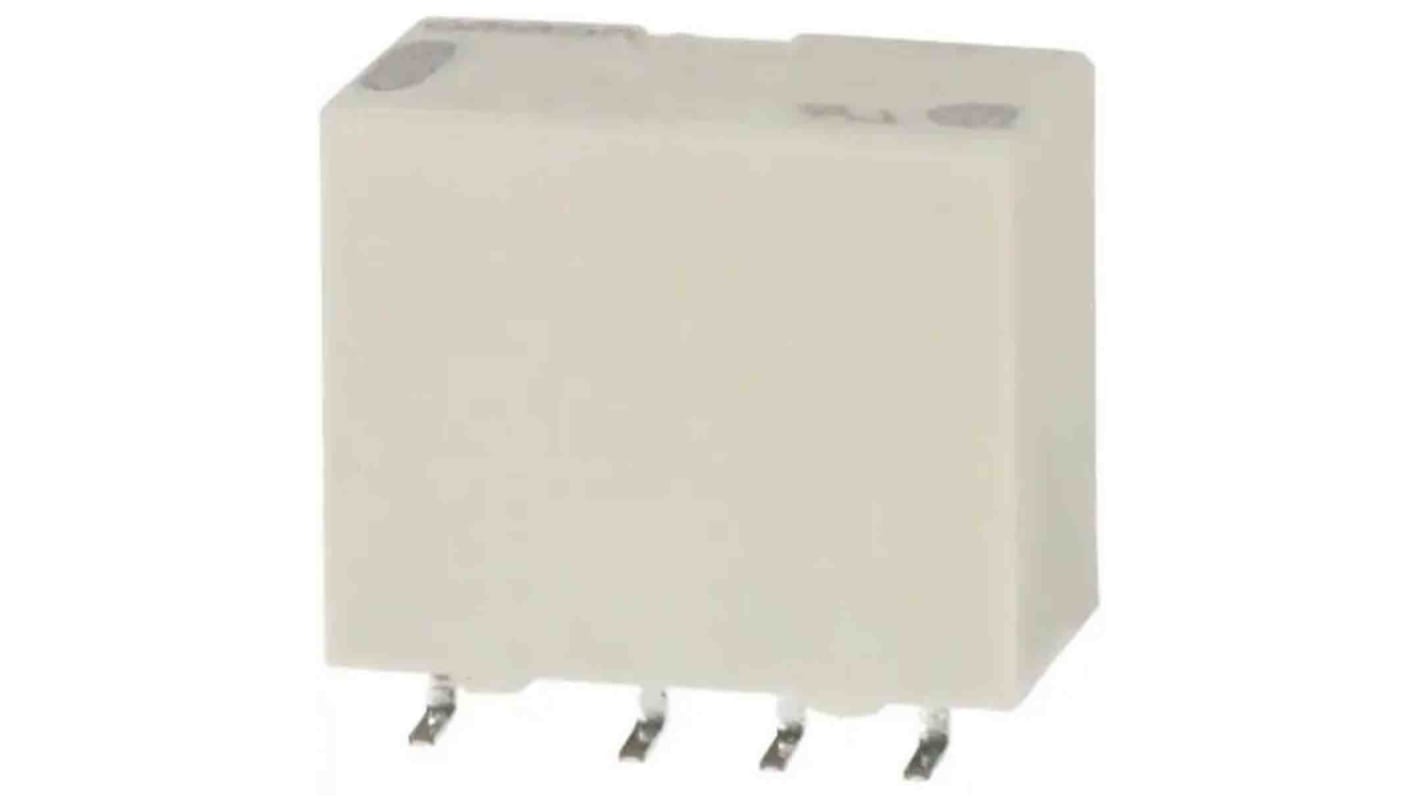

Omron Surface Mount Signal Relay, 5V dc Coil, 1A Switching Current, DPDT

View all Signal Relays

Subtotal (1 tube of 1000 units)*

£2,870.00

(exc. VAT)

£3,440.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
1000 +£2.87£2,870.00

*price indicative

RS Stock No.:
205-1960
Mfr. Part No.:
G6J-2FL-Y DC5
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

5V dc

Contact Configuration

DPDT

Mounting Type

Surface Mount

Maximum Switching Current DC

1 A

Maximum Switching Voltage AC

125V ac

Maximum Switching Voltage DC

110V dc

Maximum Switching Power DC

60 W

Series

G6S

Latching

No

Length

10.6mm

Depth

5.7mm

Height

9.9mm

Dimensions

10.6 x 9 x 5.7mm

Terminal Type

Surface Mount

Switching Current

1A

Number of Poles

2

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +85°C

Coil Resistance

173Ω

Maximum Switching Power AC

125VA

Contact Material

Gold Plated

Features

Conforms to FCC Part Requirements, Bifurcated Contacts, Improved Product For Soldering Heat Resistance

Isolation Coil To Contact

1kV rms

Coil Power

140mW

Maximum Operating Temperature

+85°C
