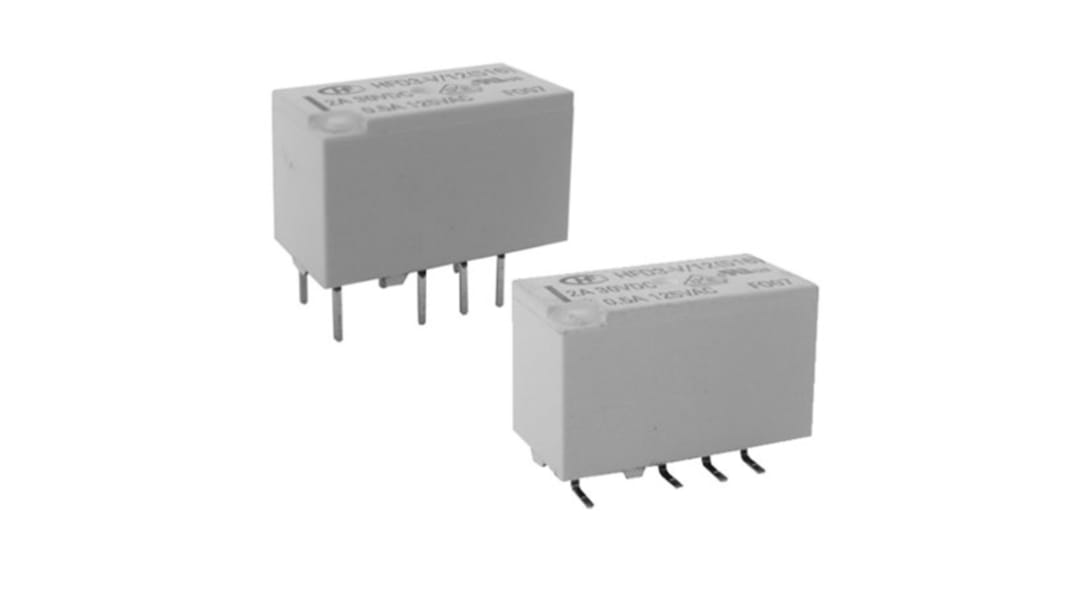

Hongfa Europe GMBH PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 176-2727
- Mfr. Part No.:
- HFD3-V/024-S
- Brand:
- Hongfa Europe GMBH
- RS Stock No.:
- 176-2727
- Mfr. Part No.:
- HFD3-V/024-S
- Brand:
- Hongfa Europe GMBH
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current AC | 1 A | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 277V | |
| Maximum Switching Voltage DC | 220V | |
| Maximum Switching Power DC | 60 W | |
| Series | HFD3-V | |
| Length | 15mm | |
| Latching | No | |
| Depth | 7.5mm | |
| Height | 9.6mm | |
| Dimensions | 15 x 7.5 x 9.2mm | |
| Terminal Type | PCB Pin | |
| Number of Poles | 2 | |
| Switching Current | 2A | |
| Isolation Coil To Contact | 4kV rms | |
| Coil Power | 140mW | |
| Relay Switching Classification | Subminiature Signal Relay | |
| Contact Material | Gold Plated | |
| Features | SMT And DIP Types Available, Bifurcated Contacts, Single Side Stable And Latching Type Available | |
| Maximum Operating Temperature | +85°C | |
| Life | 1 x 10^7 cycles | |
| Maximum Switching Power AC | 62.5VA | |
| Coil Resistance | 2800Ω | |
| Electrical Life | 100000 Operations | |
| Minimum Operating Temperature | -55°C | |
| Operating Temperature Range | -40 → +85°C | |
