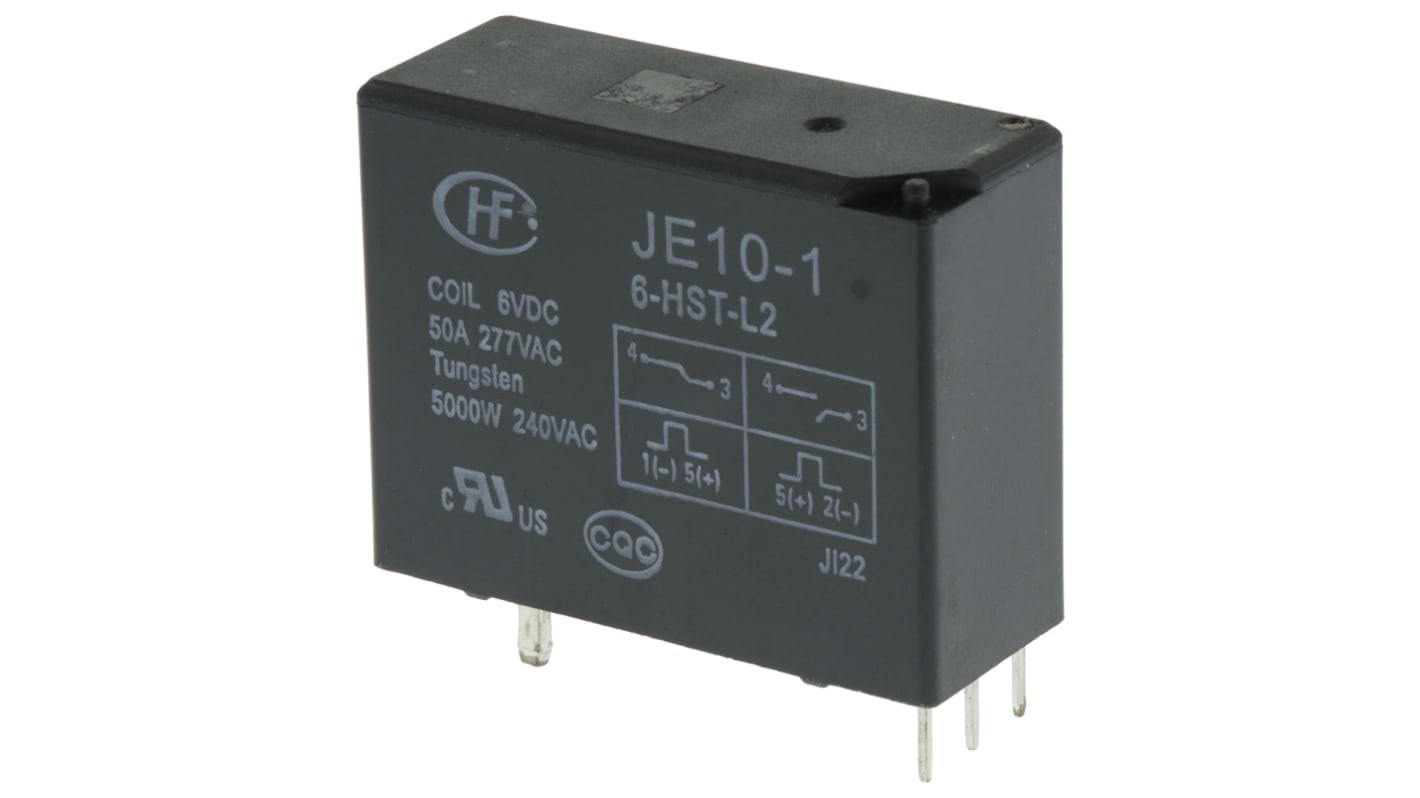

RS PRO PCB Mount Latching Relay, 6V dc Coil, 50A Switching Current, SPST
- RS Stock No.:
- 476-567
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 476-567
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 6V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Maximum Switching Voltage AC | 440V ac | |
| Length | 39mm | |
| Depth | 15mm | |
| Height | 30.2mm | |
| Dimensions | 39 x 30.2 x 15mm | |
| Terminal Type | Through Hole | |
| Application | Power | |
| Switching Current | 50A | |
| Operating Temperature Range | -40 → +70°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
| Features | 4 kV Dielectric Strength (Between Coil & Contacts), Capacitor Load up to 200 μF (Min Inrush Current at 500 A/10 μs), Creepage Distance 8 mm, Lamp Load up to 5000 W, Maximum Switching Capability up to 50 A, Wash Tight | |
| Isolation Coil To Contact | 4kV ac | |
| Contact Material | Silver Alloy | |
| Standards Met | RoHS Compliant | |
| Coil Power | 3W | |
| Life | 1000000 (Mechanical) cycles | |
| Maximum Switching Power AC | 12.5 kVA | |
| Coil Resistance | 24 Ω | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 6V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Maximum Switching Voltage AC 440V ac | ||
Length 39mm | ||
Depth 15mm | ||
Height 30.2mm | ||
Dimensions 39 x 30.2 x 15mm | ||
Terminal Type Through Hole | ||
Application Power | ||
Switching Current 50A | ||
Operating Temperature Range -40 → +70°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Features 4 kV Dielectric Strength (Between Coil & Contacts), Capacitor Load up to 200 μF (Min Inrush Current at 500 A/10 μs), Creepage Distance 8 mm, Lamp Load up to 5000 W, Maximum Switching Capability up to 50 A, Wash Tight | ||
Isolation Coil To Contact 4kV ac | ||
Contact Material Silver Alloy | ||
Standards Met RoHS Compliant | ||
Coil Power 3W | ||
Life 1000000 (Mechanical) cycles | ||
Maximum Switching Power AC 12.5 kVA | ||
Coil Resistance 24 Ω | ||
- COO (Country of Origin):
- CN
High Power Latching Relays
Maximum switching capability up to 50A
Lamp load up to 5000W
Capacitor load up to 200μF (min inrush current @ 500A/10μs)
4kV dielectric strength (between coil and contacts)
Wash tight
Creepage distance 8mm
Lamp load up to 5000W
Capacitor load up to 200μF (min inrush current @ 500A/10μs)
4kV dielectric strength (between coil and contacts)
Wash tight
Creepage distance 8mm
Note
Set and Reset coils have a common positive connection; both coils should not be simultaneously energised. Neither coil should be continuously energised for more than 1 minute.
Approvals
UL (File no. E134517), CQC (File no. CQC06017016719)
