Analog Devices EVAL-AD7764EDZ Evaluation Board Signal Conversion Development Kit
- RS Stock No.:
- 881-3056
- Mfr. Part No.:
- EVAL-AD7764EDZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 881-3056
- Mfr. Part No.:
- EVAL-AD7764EDZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Converter Type | ADC | |
| Resolution | 24-bit | |
| Featured Device | AD7764 | |
| Kit Classification | Evaluation Board | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Converter Type ADC | ||
Resolution 24-bit | ||
Featured Device AD7764 | ||
Kit Classification Evaluation Board | ||
Priced to Clear Yes | ||

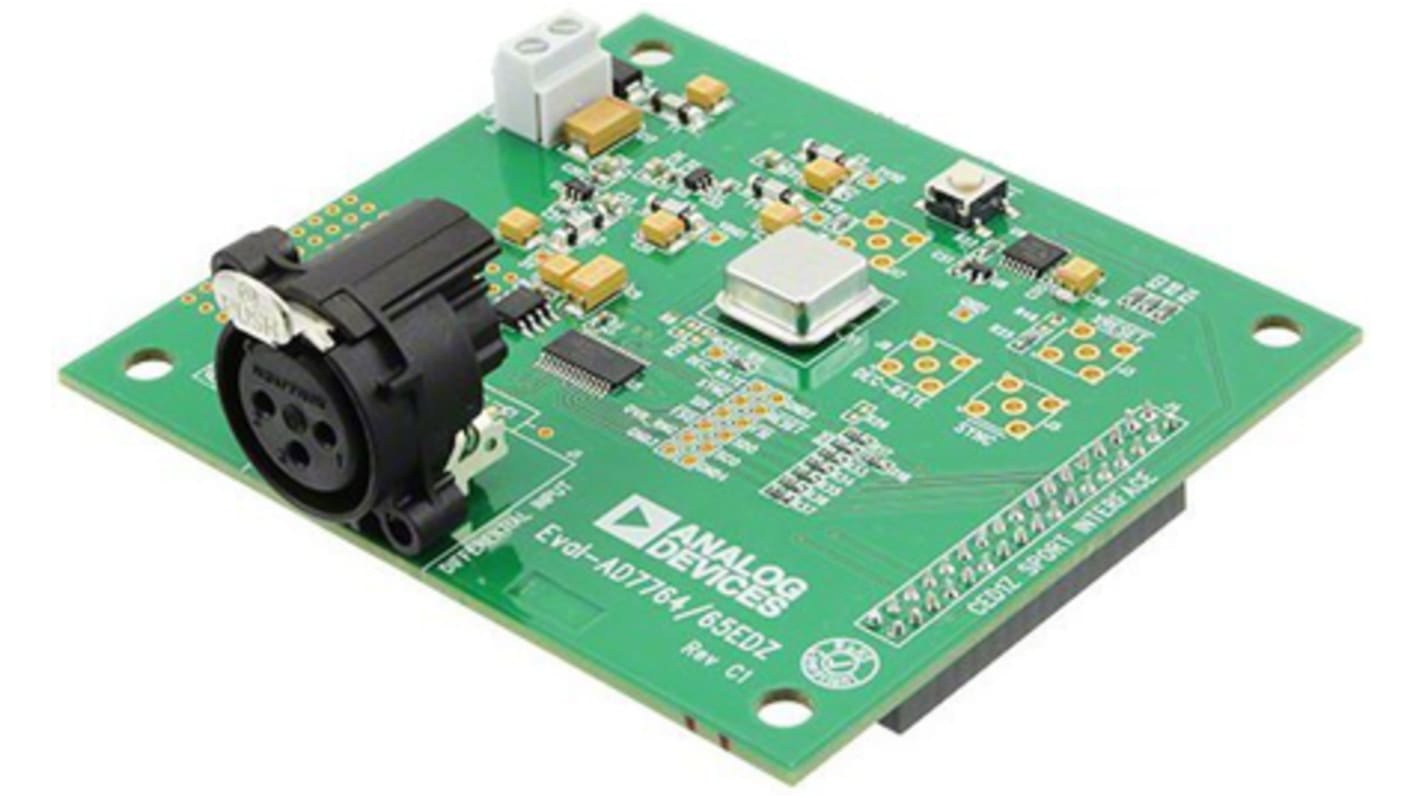

Evaluation Board for AD7764, 24-Bit Analogue-to-Digital Converter
The AD7764 is a High performance 24-Bit, 312kSPS, 109dB dynamic range Sigma-Delta Analogue-to-Digital Converter (ADC) with On-Chip Buffers and flexible SPI Serial Interface.
The fully featured evaluation kit operates in stand-alone mode or in conjunction with the Converter Evaluation and Development board, EVAL-CED1Z.
Software, including a technical note, describing the operation and set up of the evaluation board is provided, enabling the user to perform detailed analysis of the ADC's performance.
The fully featured evaluation kit operates in stand-alone mode or in conjunction with the Converter Evaluation and Development board, EVAL-CED1Z.
Software, including a technical note, describing the operation and set up of the evaluation board is provided, enabling the user to perform detailed analysis of the ADC's performance.
ADC Evaluation Boards and Development Kits, Analog
