MikroElektronika MIKROE-2932, ADC 6 Click 24-bit ADC for ADC Module for AD7124-8

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
174-5636
Mfr. Part No.:
MIKROE-2932
Brand:
MikroElektronika
Find similar products by selecting one or more attributes.
Select all

Brand

MikroElektronika

Featured Device

AD7124-8

Kit Classification

Development Board

For Use With

ADC Module

Kit Name

ADC 6 Click

COO (Country of Origin):
RS

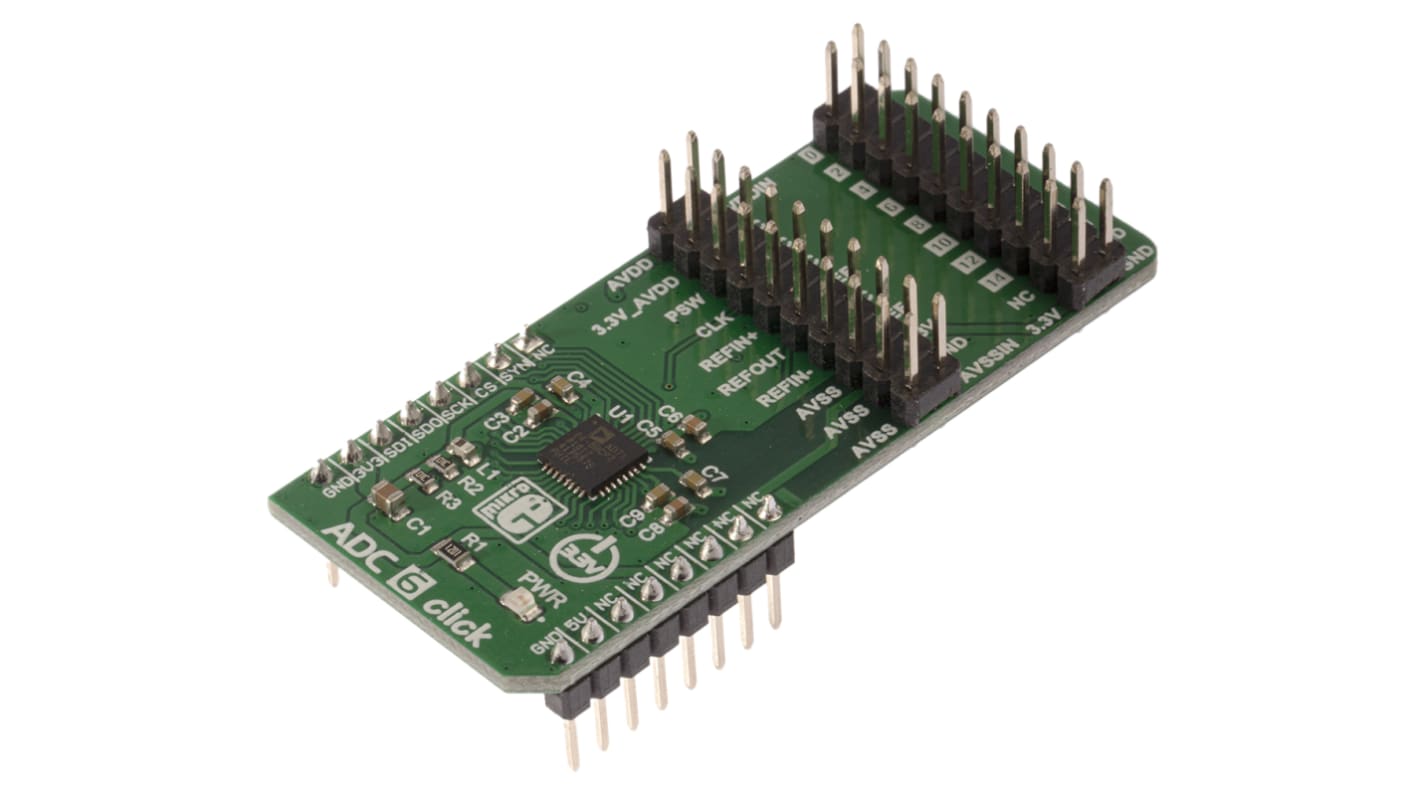

MikroElektronika ADC 6 Click 24-bit


The MikroElektronika ADC 6 click is an advanced 24-bit multi-channel analogue to digital converter. It has 8 fully differential or 15 single-ended/pseudo sampling inputs and very flexible routing capabilities. This ADC 6 click is the AD7124-8, an 8 channel, 24-bit sigma-delta ADC with reference and programmable gain array from analogue devices. The maximum output data rate varies from 2400 SPS up to 19, 200 SPS (samples per second), concerning the selected power mode. To configure and connect the device and connect the input channels, the two 2x10 pin headers are used. This allows for unrestrained configuration of the device, so it can use both bipolar and unipolar input sources with selectable reference voltages, external clock, auxiliary power switch and more.

Features and Benefits


• Input voltage is 3.3V
• Interface: GPIO and SPI
• Low noise
• Low power

Applications


• Industrial process control Instrumentation
• Pressure measurement
• Smart transmitters
• Temperature measurement

Certifications


• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
