MPN

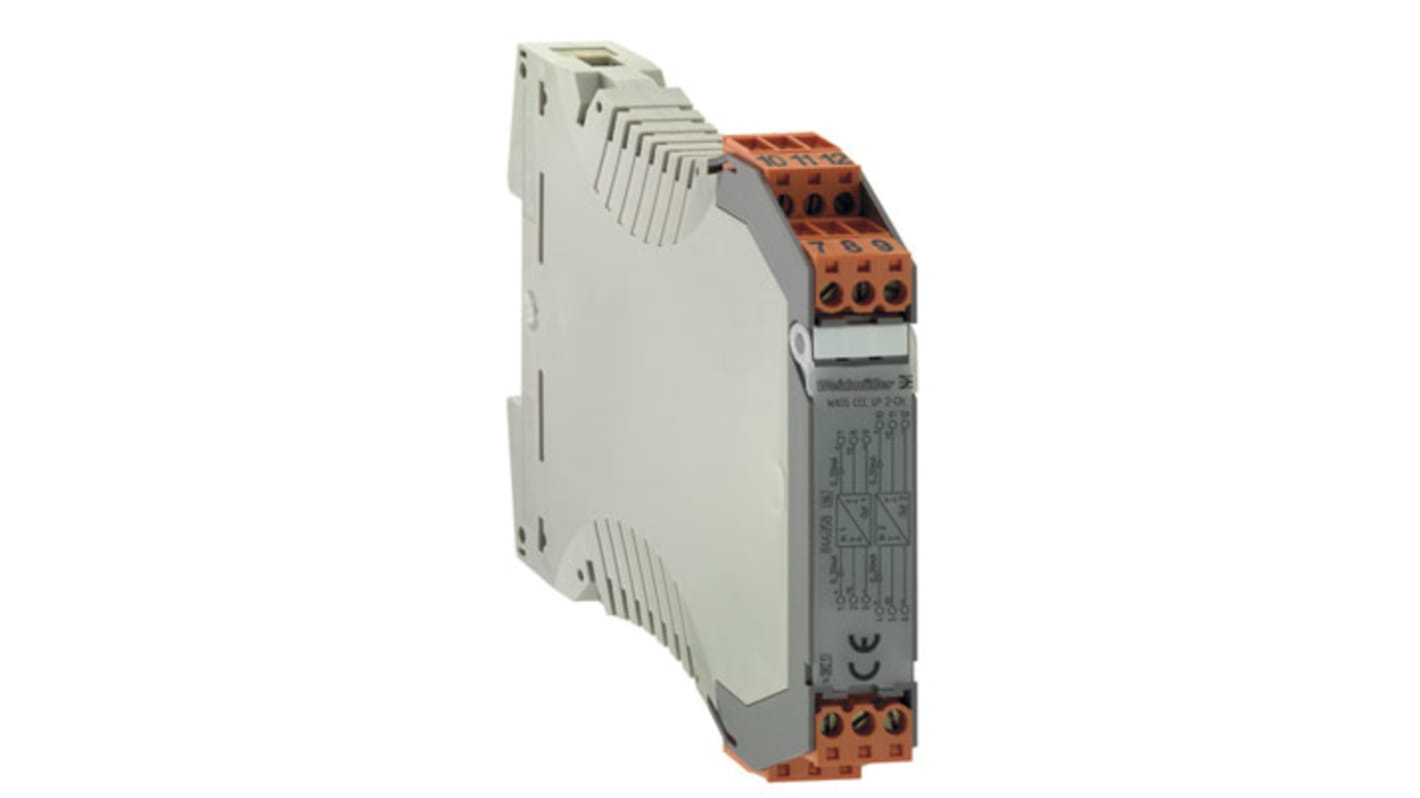

Weidmüller WAS5 Series Signal Conditioner, Current Input, Digital Output, 24V dc Supply

RS Stock No.:: 892-9025
Distrelec Article No.:: 303-74-066
Mfr. Part No.:: 8543820000
Brand:: Weidmüller

Weidmüller WAS5 Series Signal Conditioner, Current Input, Digital Output, 24V dc Supply

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

Weidmüller ACT20P Series Limit Signal Transmitter, Temperature Input, Relay Output, 4V dc Supply

RS Stock No.: 287-5334

Each

£354.10

(exc. VAT)

£424.92

(inc. VAT)

RS Stock No.:: 892-9025
Distrelec Article No.:: 303-74-066
Mfr. Part No.:: 8543820000
Brand:: Weidmüller

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Product Type	Signal Conditioner
	Input Signal Type	Current
	Output Signal Type	Digital
	Input Range	0 → 20 mA
	Output Range	2 CO contact, 0(4) → 20 mA, 0 → 10 V
	Supply Voltage	24V dc
	Hazardous Area Certification	No
	Mount Type	DIN Rail
	Maximum Operating Temperature	55°C
	Minimum Operating Temperature	0°C
	Terminal Type	Screw
	Signal Conditioner Type	Analogue DC Current/Voltage Signal Converter with Integrated Limit-Value Monitoring
	Standards/Approvals	CE, cULus, EAC
	Series	WAS5
	Number of Channels	2

	Select all
	Brand Weidmüller
	Product Type Signal Conditioner
	Input Signal Type Current
	Output Signal Type Digital
	Input Range 0 → 20 mA
	Output Range 2 CO contact, 0(4) → 20 mA, 0 → 10 V
	Supply Voltage 24V dc
	Hazardous Area Certification No
	Mount Type DIN Rail
	Maximum Operating Temperature 55°C
	Minimum Operating Temperature 0°C
	Terminal Type Screw
	Signal Conditioner Type Analogue DC Current/Voltage Signal Converter with Integrated Limit-Value Monitoring
	Standards/Approvals CE, cULus, EAC
	Series WAS5
	Number of Channels 2

COO (Country of Origin):: DE

Weidmuller WAS5 Series Signal Conditioner, DIN Rail Mount, +55 °C Maximum Operating Temperature - 8543820000

This signal conditioner by Weidmuller is an essential component in industrial automation applications, featuring galvanic isolator technology and silver alloy contacts. With a compact design and easy DIN rail mounting, this signal conditioner offers precise monitoring and control of electrical signals with a wide operating temperature range.

Features & Benefits

• 0-20 mA input current with screw terminal connection for easy installation

• CE, cULus, and EAC certifications ensure compliance with industry standards

• 3-way galvanic isolator for enhanced safety and reliability

• DIN rail mountable design for convenient integration into existing systems

• Silver alloy contacts for superior conductivity and longevity

Applications

• Ideal for use in process and industrial automation • Suitable for monitoring and controlling electrical signals in harsh environments

• Recommended for applications requiring precise limit-value monitoring and safety functions

Can it be used in temperature-sensitive environments?

Yes, the signal conditioner has a wide operating temperature range from 0°C to +55°C, making it suitable for various industrial settings.

Is the signal conditioner compatible with other automation components?

Yes, the screw terminal connection allows for easy integration with other automation devices using standard wiring practices.

Will it provide reliable and accurate signal monitoring?

Yes, the signal conditioner features precise monitoring functions and silver alloy contacts for superior accuracy and performance.
