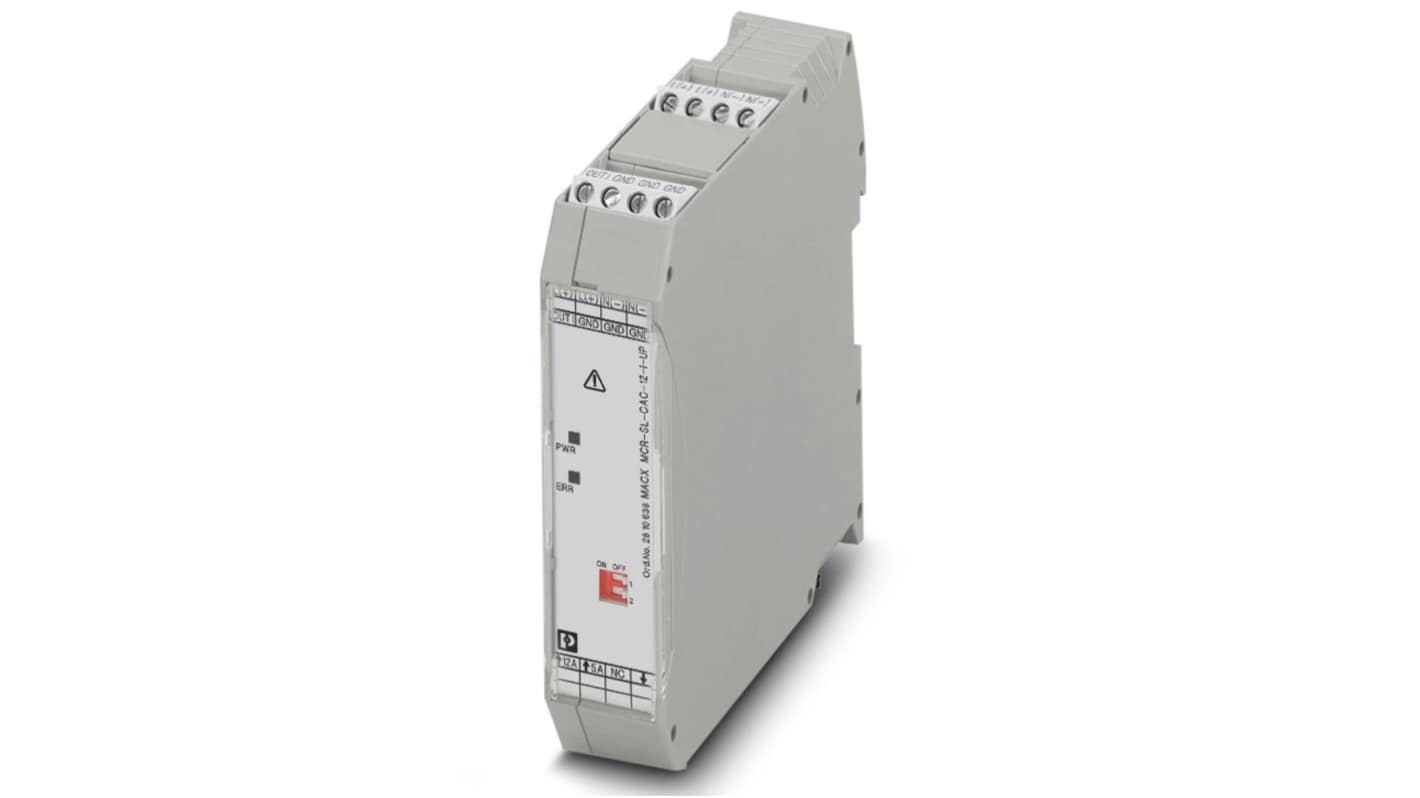

Phoenix Contact MINI MCR Series Current Measuring Transducer, Current Input, Current Output, 24V dc Supply
- RS Stock No.:
- 715-7982
- Mfr. Part No.:
- 2810638
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£221.86
(exc. VAT)
£266.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £221.86 |
*price indicative
- RS Stock No.:
- 715-7982
- Mfr. Part No.:
- 2810638
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Module Type | Current Transducer | |
Input Signal Type | Current | |
Output Signal Type | Current | |
Input Range | 0 → 12 V ac, 0 → 12A | |
Output Range | 0 → 20mA | |
Supply Voltage | 24V dc | |
Operating Temperature Range | -20 → +65°C | |
Series | MINI MCR | |
Maximum Operating Temperature | +65°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Module Type Current Transducer | ||
Input Signal Type Current | ||
Output Signal Type Current | ||
Input Range 0 → 12 V ac, 0 → 12A | ||
Output Range 0 → 20mA | ||
Supply Voltage 24V dc | ||
Operating Temperature Range -20 → +65°C | ||
Series MINI MCR | ||
Maximum Operating Temperature +65°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Current Measuring Transducer
MACX MCR-SL-CAC series current measuring transducers.
3 way isolation
Input/output signal can be configured using the DIP switch
Operating state indication via LED
Screw terminal block
Input/output signal can be configured using the DIP switch
Operating state indication via LED
Screw terminal block
