Phoenix Contact MACX MCR-SL-2NAM-R-UP-SP Series Isolation Amplifier, 24 → 230V ac/dc Supply, ATEX
- RS Stock No.:
- 212-7325
- Mfr. Part No.:
- 2924304
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£189.12
(exc. VAT)
£226.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 999,999,981 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £189.12 |
*price indicative
- RS Stock No.:
- 212-7325
- Mfr. Part No.:
- 2924304
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Module Type | Isolation Amplifier | |
Input Range | 24 → 230V ac/dc | |
Supply Voltage | 24 → 230V ac/dc | |
Hazardous Area Certification | ATEX | |
Mounting Type | DIN Rail | |
Operating Temperature Range | -40 → +60°C | |
Series | MACX MCR-SL-2NAM-R-UP-SP | |
Maximum Operating Temperature | +60°C | |
Number of Channels | 2 | |
Minimum Operating Temperature | -40°C | |
Signal Conditioner Function | Isolation Amplifier | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Module Type Isolation Amplifier | ||
Input Range 24 → 230V ac/dc | ||
Supply Voltage 24 → 230V ac/dc | ||
Hazardous Area Certification ATEX | ||
Mounting Type DIN Rail | ||
Operating Temperature Range -40 → +60°C | ||
Series MACX MCR-SL-2NAM-R-UP-SP | ||
Maximum Operating Temperature +60°C | ||
Number of Channels 2 | ||
Minimum Operating Temperature -40°C | ||
Signal Conditioner Function Isolation Amplifier | ||
- COO (Country of Origin):
- DE

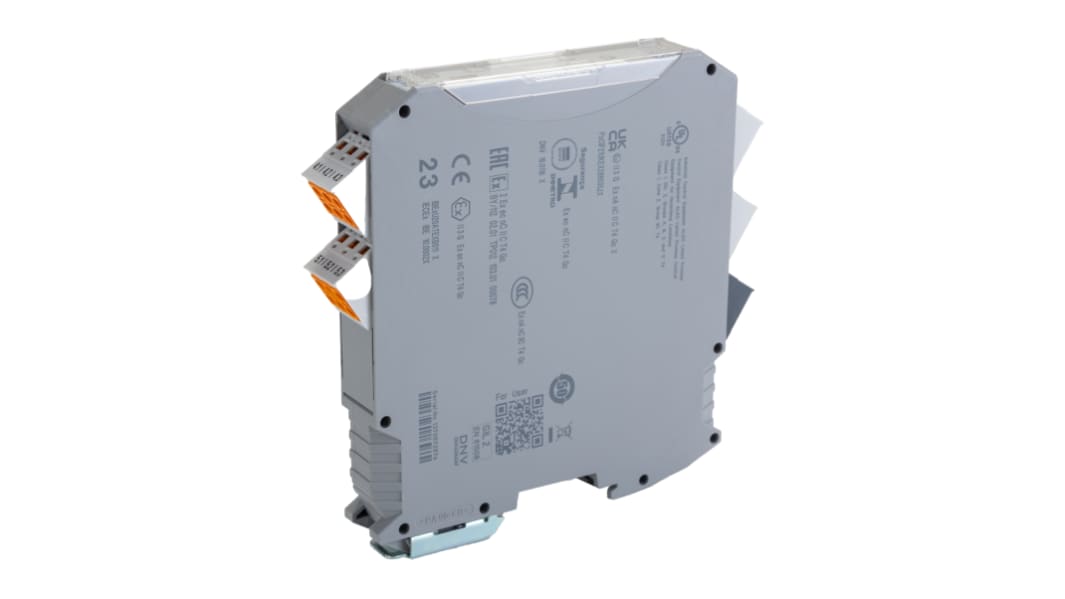

Phoenix Contact MACX MCR-SL-2NAM-R-UP-SP Series Isolation Amplifier, 24 to 230V AC/DC Input Range, DIN Rail Mount - 2924304
This isolation amplifier is tailored for signal conditioning in industrial applications providing a compact solution for isolating signals and features a DIN rail mount design. With dimensions of 17.5mm width, 107.9mm height, and 113.7mm depth, it operates within a versatile input range of 24 to 230 V ac/dc.
Features & Benefits
• Provides 3-way electrical isolation for improved safety
• Supports supply voltages from 19.2V to 253V
• Includes line fault detection to indicate errors
• Offers a selectable operation mode for adaptability
• Features clear LED indicators for status monitoring
• Compatible with NAMUR sensors and floating contacts
• Supports supply voltages from 19.2V to 253V
• Includes line fault detection to indicate errors
• Offers a selectable operation mode for adaptability
• Features clear LED indicators for status monitoring
• Compatible with NAMUR sensors and floating contacts
Applications
• Utilised in proximity sensor
• Employed in automation and control systems
• Functions effectively in hazardous locations
• Supports signal isolation in electrical monitoring
• Employed in automation and control systems
• Functions effectively in hazardous locations
• Supports signal isolation in electrical monitoring
Can it operate in temperature ranges from -40°C to 60°C?
Yes, it operates efficiently between -40°C and 60°C.
Is it suitable for use in zone 2 hazardous areas?
Yes, this product is approved for use in zone 2 environments.
Will it provide line fault detection capabilities?
Yes, it features line fault detection that can be activated.
Can it handle a wide range of supply voltages?
Yes, it supports supply voltages from 19.2V to 253V.
