Kubler Signal Conditioner, SinCos Input, HTL, RS-422, TTL Output, 18 → 30V dc Supply
- RS Stock No.:
- 181-1097
- Mfr. Part No.:
- 8.SK.1SC-1D
- Brand:
- Kübler
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£481.86
(exc. VAT)
£578.23
(inc. VAT)
- RS Stock No.:
- 181-1097
- Mfr. Part No.:
- 8.SK.1SC-1D
- Brand:
- Kübler
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kübler | |
| Module Type | Signal Converter | |
| Input Signal Type | SinCos | |
| Output Signal Type | HTL, RS-422, TTL | |
| Input Range | 0 → 400kHz | |
| Supply Voltage | 18 → 30V dc | |
| Mounting Type | DIN Rail Mount | |
| Operating Temperature Range | 0 → +45°C | |
| Termination | Screw | |
| Maximum Operating Temperature | +45°C | |
| Minimum Operating Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Kübler | ||
Module Type Signal Converter | ||
Input Signal Type SinCos | ||
Output Signal Type HTL, RS-422, TTL | ||
Input Range 0 → 400kHz | ||
Supply Voltage 18 → 30V dc | ||
Mounting Type DIN Rail Mount | ||
Operating Temperature Range 0 → +45°C | ||
Termination Screw | ||
Maximum Operating Temperature +45°C | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- DE

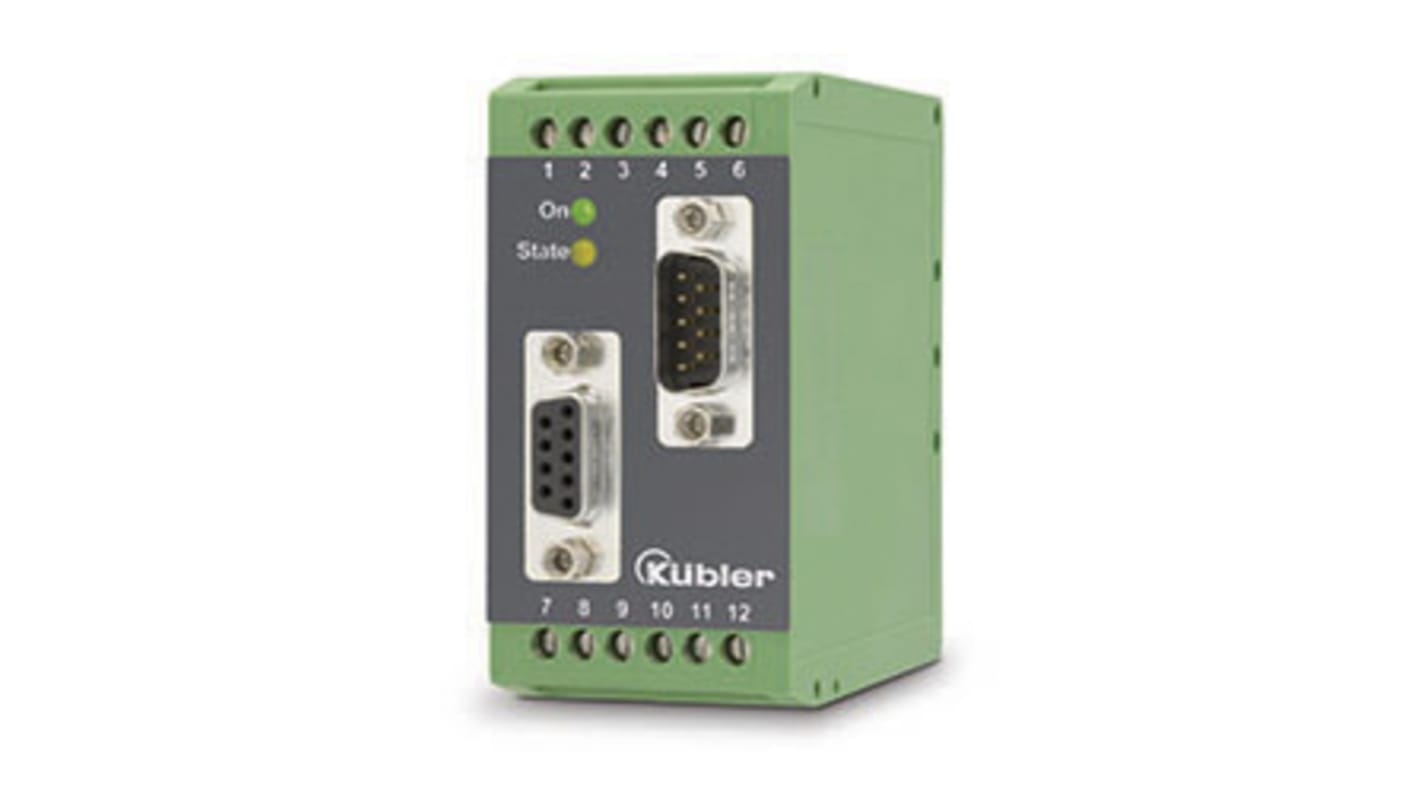

The signal converter SK 1SC-1D converts, multiplies and divides output signals from sine-cosine encoders and comparable measuring systems into incremental pulse signals. A corresponding number of output pulses is interpolated from every period of the entering sine-cosine voltage signal taking into account an adjustable multiplier. If necessary, they can in addition be divided before outputting them. All settings are carried out with an 8-pole DIL switch. The module can be easily and conveniently mounted in a cabinet on a standard DIN rail.
Converts sinusoidal signals with standard level 1 Vpp into incremental square signals.
Outputs A, /A, B, /B, 0, /0 (RS422 / TTL) and A, B, 0 (18 ... 30 V HTL).
Multiplier for interpolations adjustable in the range 1 : 5 to 1 : 50.
Divider adjustable in the range 1 : 1 to 1 : 128 for reducing the output frequency.
Sine input frequency 0 to 400 kHz.
Square output frequency up to 4 MHz.
Switchable glitch filter.
Comprehensive features such as control input for error triggering, Error control output.
Outputs A, /A, B, /B, 0, /0 (RS422 / TTL) and A, B, 0 (18 ... 30 V HTL).
Multiplier for interpolations adjustable in the range 1 : 5 to 1 : 50.
Divider adjustable in the range 1 : 1 to 1 : 128 for reducing the output frequency.
Sine input frequency 0 to 400 kHz.
Square output frequency up to 4 MHz.
Switchable glitch filter.
Comprehensive features such as control input for error triggering, Error control output.
