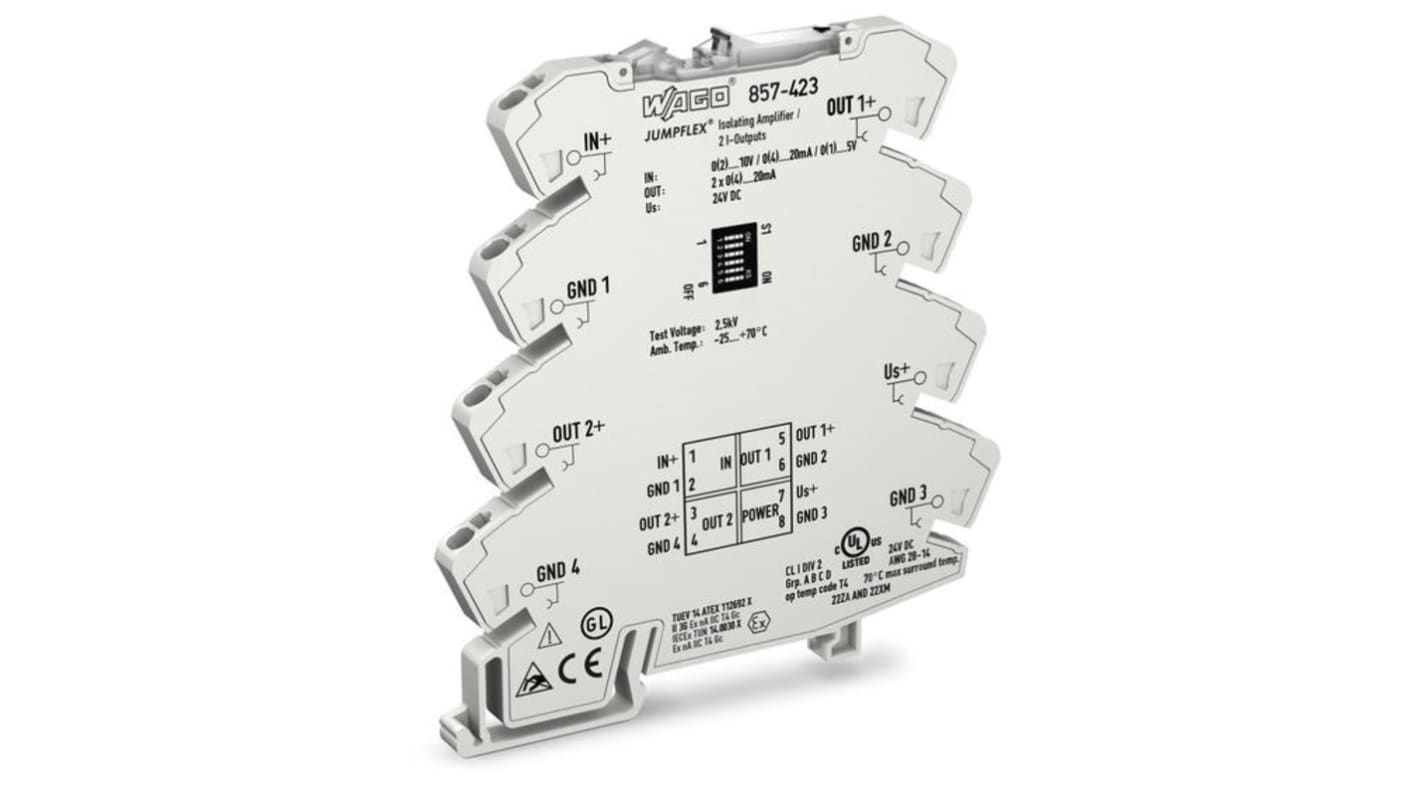

WAGO JUMPFLEX Series Signal Conditioner, Current, Voltage Input, Current Output, 24V dc Supply, ATEX, IECEx
- RS Stock No.:
- 180-3042
- Distrelec Article No.:
- 110-51-892
- Mfr. Part No.:
- 857-423
- Brand:
- WAGO
Subtotal (1 unit)*
£208.04
(exc. VAT)
£249.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6 unit(s) shipping from 30 October 2025
- Plus 5 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £208.04 |
*price indicative
- RS Stock No.:
- 180-3042
- Distrelec Article No.:
- 110-51-892
- Mfr. Part No.:
- 857-423
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | WAGO | |
Module Type | Isolation Amplifier | |
Input Signal Type | Current, Voltage | |
Output Signal Type | Current | |
Input Range | 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20mA | |
Output Range | 0 → 20 mA, 4 → 20mA | |
Supply Voltage | 24V dc | |
Hazardous Area Certification | ATEX, IECEx | |
Mounting Type | DIN Rail Mount | |
Operating Temperature Range | -25 → +70°C | |
Series | JUMPFLEX | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -25°C | |
Standards Met | UL | |
Select all | ||
---|---|---|
Brand WAGO | ||
Module Type Isolation Amplifier | ||
Input Signal Type Current, Voltage | ||
Output Signal Type Current | ||
Input Range 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20mA | ||
Output Range 0 → 20 mA, 4 → 20mA | ||
Supply Voltage 24V dc | ||
Hazardous Area Certification ATEX, IECEx | ||
Mounting Type DIN Rail Mount | ||
Operating Temperature Range -25 → +70°C | ||
Series JUMPFLEX | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Standards Met UL | ||
- COO (Country of Origin):
- DE
WAGO Signal Conditioner, DIN Rail Mounting, 6mm Width - 857 Series - 857-423
Do you need to convert, amplify, filter or isolate analogue signals in a flash? This signal conditioner from WAGO will do all that multitasking for you. You can configure it to control temperature, voltage, current or frequency to suit the demands of your setup. Thanks to its three-way isolation, you don't have to compromise on accuracy due to noise, crosstalk or unwanted ground loop currents. The device features a unit gain amplifier, so you can rest assured it transmits an accurate, high-quality signal, even from the smallest of units.
Features & Benefits
• Input voltage range of 0 to 10V for use in low-power systems
• IP20 rating means it's finger-safe and protected against objects larger than 12mm
• Safe for use in harsh environments, thanks to its wide operating temperature range between -25°C and +70°C
• Light weight of 40.6g to minimise strain on your equipment
• IP20 rating means it's finger-safe and protected against objects larger than 12mm
• Safe for use in harsh environments, thanks to its wide operating temperature range between -25°C and +70°C
• Light weight of 40.6g to minimise strain on your equipment
Applications
• Military electronics
• Energy management systems
• Industrial processes
• Energy management systems
• Industrial processes
Is this signal conditioner easy to install?
Yes, you can mount it in a snap onto a standard DIN rail for convenient installation.
