Phoenix Contact MACX MCR Series Signal Conditioner, Voltage Input, Current, Voltage Output, 24V dc Supply

View all Signal Conditioners

Subtotal (1 unit)*

£394.12

(exc. VAT)

£472.94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 999,999,959 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£394.12

*price indicative

RS Stock No.:
171-7041
Mfr. Part No.:
2906239
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Module Type

Voltage Transducer

Input Signal Type

Voltage

Output Signal Type

Current, Voltage

Input Range

0 → 550V ac

Output Range

0 → 10 V, 0 → 20mA

Supply Voltage

24V dc

Mounting Type

DIN Rail Mount

Operating Temperature Range

-25 → +60°C

Series

MACX MCR

Termination

Screw

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+60°C

Signal Conditioner Function

Isolation

Standards Met

EAC

COO (Country of Origin):
DE

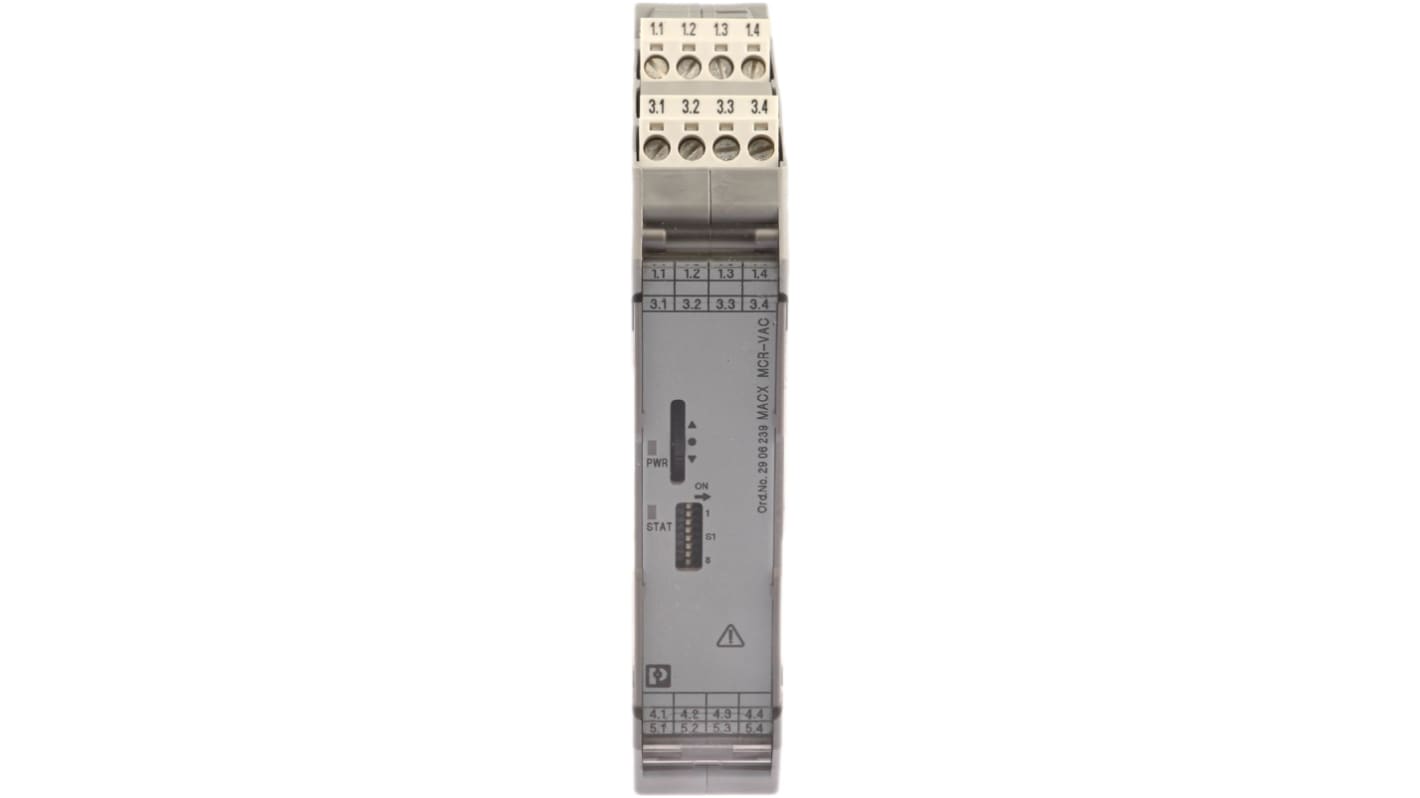

Phoenix Contact Signal Conditioner, 550V AC Maximum Input Voltage, Voltage Measuring Transducer Type - MACX MCR-VAC - 2906239


When you want to optimise your control signals, go for this signal conditioner from Phoenix Contact. It takes inputs between 0 and 550V and converts them into an output of 0 to 10V and 0 to 20mA. Controlling your transmissions lets you maximise the safety and performance of your process to ensure it keeps on kicking.
Installing the unit is a breeze, as you simply snap it onto a DIN rail. It withstands harsh environments, thanks to its wide operating temperature range between -25°C and +60°C. As it consumes less than 45mA, you can rest easy knowing it doesn't guzzle electricity. Components like this one are vital in many applications, from industrial automation to renewable energy and power distribution.

Features & Benefits


• Tested up to 5.3kV AC for protection against sudden voltage surges
• Supports rigid and flexible conductors with a cross-section between 0.2 and 2.5mm² for broad functionality
• IP20 rating shows it's touch-proof and resists tools larger than 12mm for safe maintenance
• Designed for mounting in any position to give you flexibility
• 24V DC supply voltage for use with common power sources
