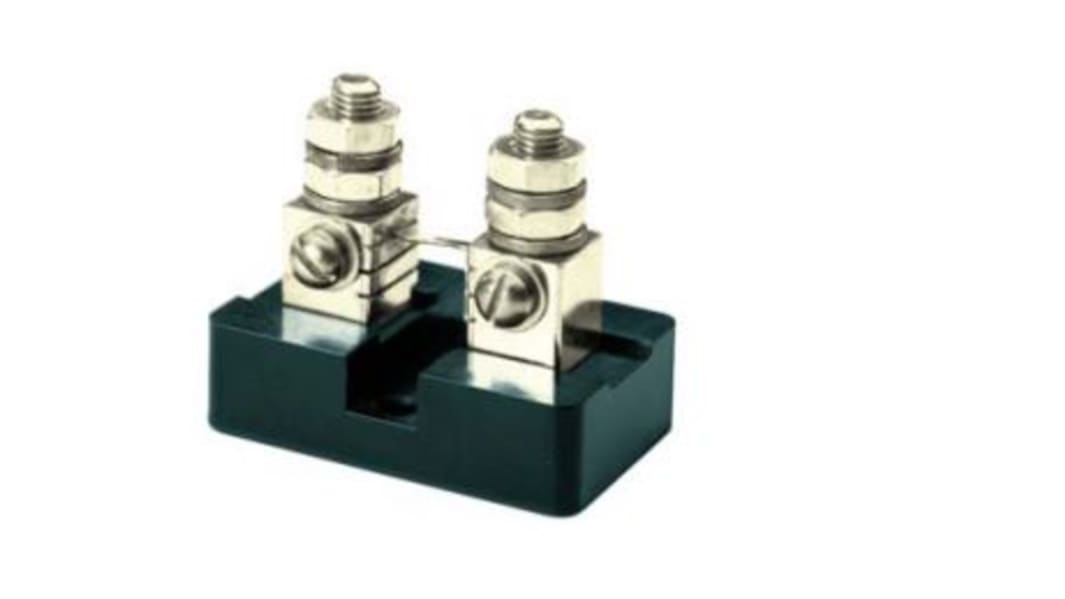

Murata Brass-Ended Shunt, 10 A Max, 100mV Output, ±25 % Accuracy
- RS Stock No.:
- 230-7874
- Mfr. Part No.:
- 3020-01107-0
- Brand:
- Murata
5 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 5)
£21.686
(exc. VAT)
£26.023
(inc. VAT)
| Units | Per unit | Per Box* |
| 5 + | £21.686 | £108.43 |
| *price indicative | ||
- RS Stock No.:
- 230-7874
- Mfr. Part No.:
- 3020-01107-0
- Brand:
- Murata
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
The Murata 3020 is a robust, highly configurable, digital panel meter that provides precise measurement and display of DC current and supports a wide range of external shunts. DIP switches simplify selection and setup of shunt current / voltage input rang
Measures ranges of 1A to 1200A
0.2% typical accuracy
Supports user selectable 50 or 100 mV external shunts
Bright 1” red LED display, readable at distance of 80 feet (∼24 m)
Adjustable display brightness
Wide common-mode input range (±48V)
Digital filter
0.2% typical accuracy
Supports user selectable 50 or 100 mV external shunts
Bright 1” red LED display, readable at distance of 80 feet (∼24 m)
Adjustable display brightness
Wide common-mode input range (±48V)
Digital filter
Specifications
Attribute | Value |
|---|---|
| Maximum Current | 10 A |
| Voltage Output | 100mV |
| Shunt Type | Brass-Ended |
| Accuracy | ±25 % |
