RS Stock No.:
189-4523
Mfr. Part No.:
ASX00003
Brand:
Arduino
Find similar products by selecting one or more attributes.
Select all

Brand

Arduino

Product Name

MKR Motor Carrier

Kit Classification

Shield

Processor Part Number

ASX00003

COO (Country of Origin):
IT

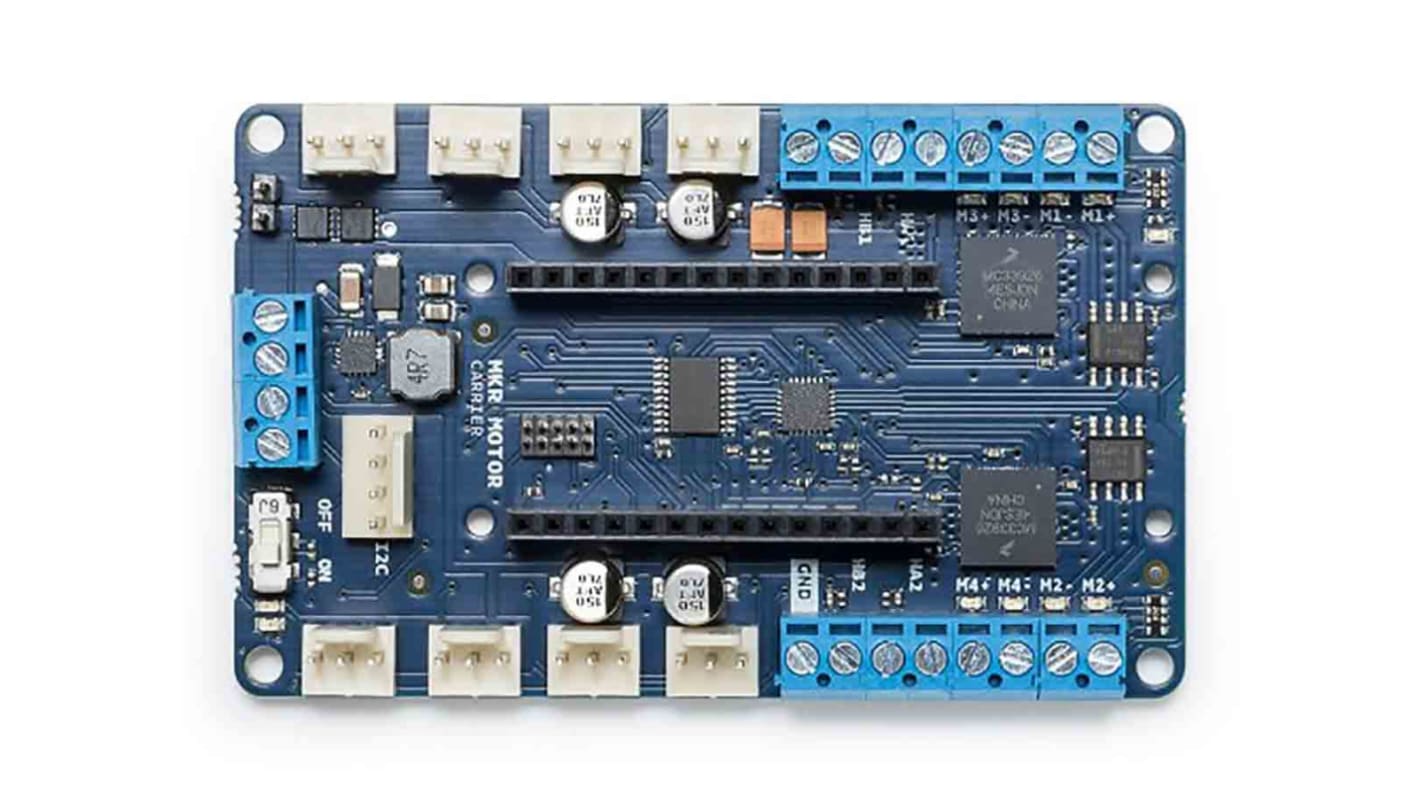

The MKR Motor Carrier is an MKR add-on board designed to control servo, DC, and stepper motors. The Carrier can also be used to connect other actuators and sensors via a series of 3-pin male headers.

Compatible with all the boards in the MKR family
Four servo motor outputs
Four DC motor outputs (two high performance + two standard performance)
Sensing of current feedback for the high-performance motors
Two inputs for encoder sensors
Four inputs for analog sensors (3-pin compatible)
Possibility to read the status of the batteries
ON-OFF switch with Power ON LED
LiPo battery connector (2S or 3S compatible) and power terminal block for alternative power source
LEDs to visually indicate the direction of the rotation of the DC motors
On-board processor for automated control of some of the outputs
I2C connector as a 4-pin male header
