Ruland Shaft Collar, One Piece, Clamp, OD 36 mm OD, W 13 mm, Aluminium
- RS Stock No.:
- 592-724
- Mfr. Part No.:
- MCL-17-A
- Brand:
- Ruland
Subtotal (1 unit)*
£8.99
(exc. VAT)
£10.79
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.99 |
*price indicative
- RS Stock No.:
- 592-724
- Mfr. Part No.:
- MCL-17-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 17 mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | One Piece | |
| Material | Aluminium | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 36 mm | |
| Fastening | Clamp | |
| Width | 13 mm | |
| Finish | Non-Plated, Bright | |
| Series | MCL | |
| Standards/Approvals | RoHs and Reach, DIN 91 1.9 | |
| Bore Type | Clamp Style | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 17 mm | ||
Product Type Shaft Collar | ||
One/Two Piece One Piece | ||
Material Aluminium | ||
Single/Double Wide Single Wide | ||
Outside Diameter 36 mm | ||
Fastening Clamp | ||
Width 13 mm | ||
Finish Non-Plated, Bright | ||
Series MCL | ||
Standards/Approvals RoHs and Reach, DIN 91 1.9 | ||
Bore Type Clamp Style | ||
- COO (Country of Origin):
- US

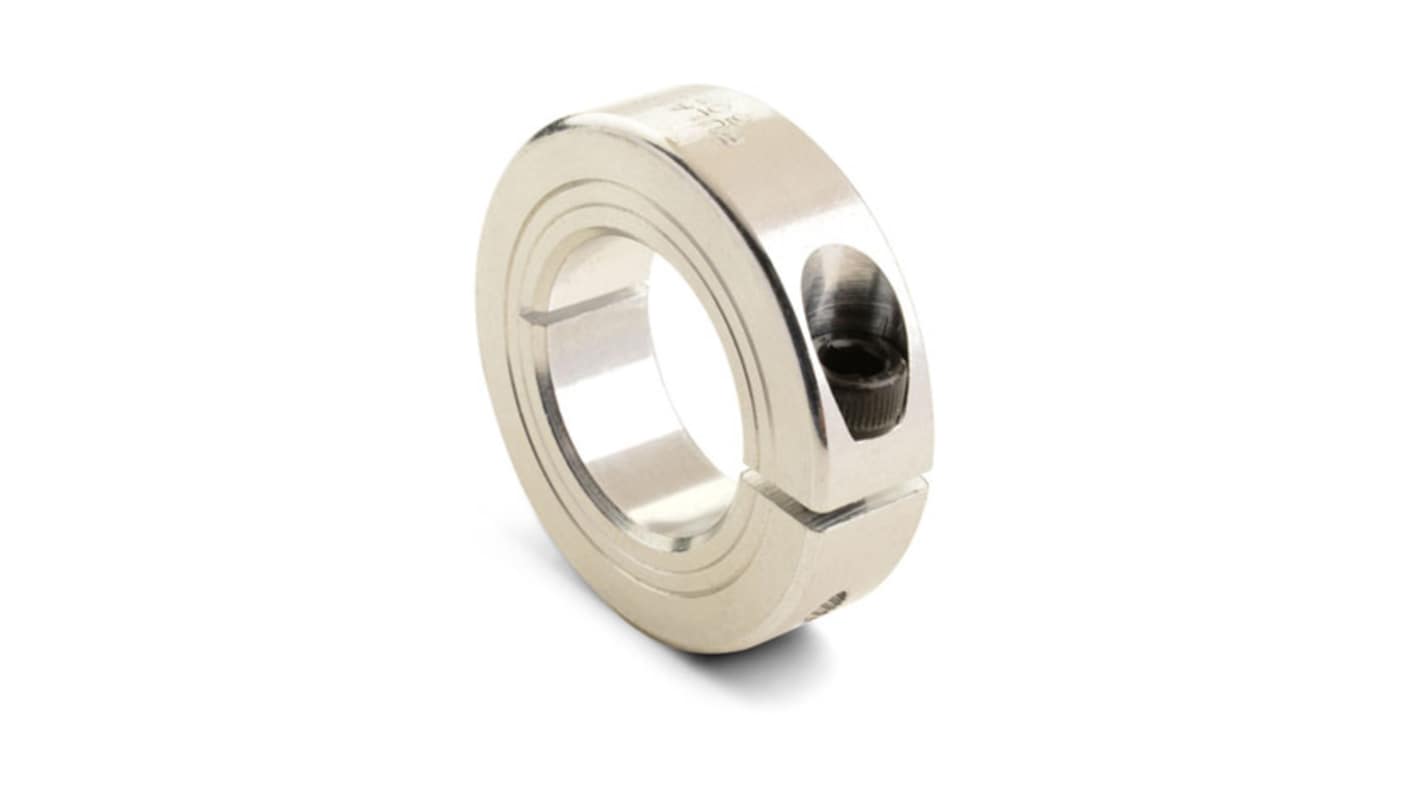

The Ruland One-piece shaft collar is expertly crafted for optimal performance and durability. Designed with a 17mm bore and a robust 36mm outer diameter, this product excels in various applications, providing precise alignment without marring the shaft. Its clamp style design makes installation a breeze while ensuring adjustability over time. Built from high-grade 2024 aluminum, this collar boasts superior quality, meeting rigorous industry standards for fit and finish. Its impressive weight-to-strength ratio makes it a preferred choice among equipment manufacturers looking for reliable component alignment. The rigorous manufacturing process undertaken in Marlborough, MA, guarantees that each collar upholds the brand's promise of excellence, making it ideal for applications involving bearings or gears. With a temperature range of -40°F to 225°F, it is well-suited for both high and low-temperature environments, allowing for versatile use in diverse settings.
Easy to remove and indefinitely adjustable for increased versatility
Manufactured from solid bar stock to ensure exceptional quality
Features a clamp style design that preserves shaft integrity during installation
Bore size and markings are clearly stamped for easy identification
Components designed to meet and exceed DIN 912 12.9 standards for maximum holding power
