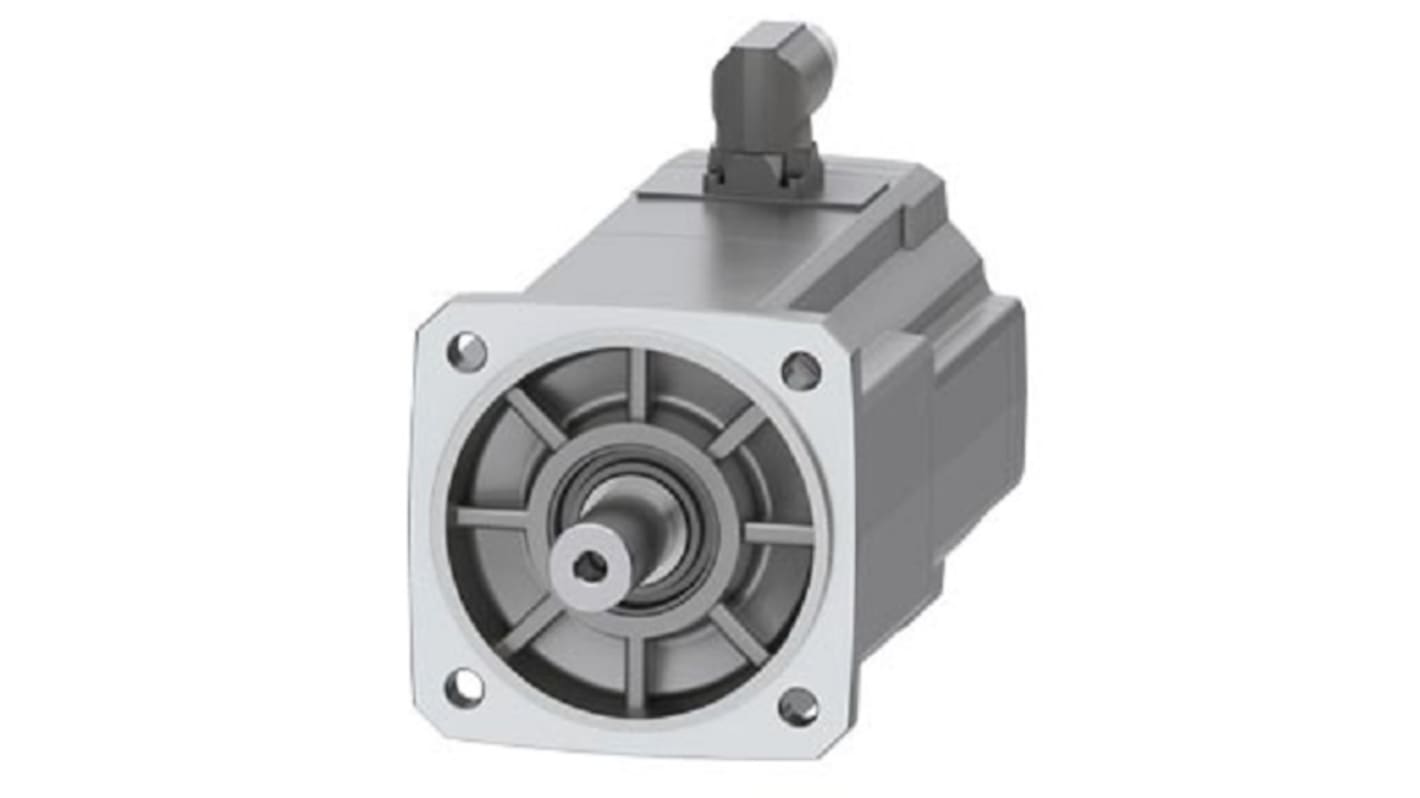

Siemens 400/480 V 1.71 kW Servo Motor, 3000 rpm, 18 Nm Max Output Torque, 24 mm Shaft Diameter
- RS Stock No.:
- 274-2605
- Mfr. Part No.:
- 1FK2206-2AF11-0MA0
- Brand:
- Siemens
Subtotal (1 unit)*
£1,666.22
(exc. VAT)
£1,999.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,666.22 |
*price indicative
- RS Stock No.:
- 274-2605
- Mfr. Part No.:
- 1FK2206-2AF11-0MA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Servo Motor | |
| Maximum Output Torque | 18Nm | |
| Sub Type | Permanent-Magnet Synchronous Motor | |
| Supply Voltage | 400/480 V | |
| Output Speed | 3000rpm | |
| Power Rating | 1.71kW | |
| Stall Torque | 5.4Nm | |
| Mount Type | Flange | |
| Shaft Diameter | 24mm | |
| Length | 205mm | |
| Shaft Length | 50mm | |
| Width | 125 mm | |
| Current Rating | 4.4 A | |
| Series | 1FK2 | |
| Rotor Inertia | 9.4kg.cm² | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Servo Motor | ||
Maximum Output Torque 18Nm | ||
Sub Type Permanent-Magnet Synchronous Motor | ||
Supply Voltage 400/480 V | ||
Output Speed 3000rpm | ||
Power Rating 1.71kW | ||
Stall Torque 5.4Nm | ||
Mount Type Flange | ||
Shaft Diameter 24mm | ||
Length 205mm | ||
Shaft Length 50mm | ||
Width 125 mm | ||
Current Rating 4.4 A | ||
Series 1FK2 | ||
Rotor Inertia 9.4kg.cm² | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The Siemens Simotics CT Servo Motor is a permanent magnet synchronous motor. It has naturally cooling capability.
Compact motor type
Plain shaft end
