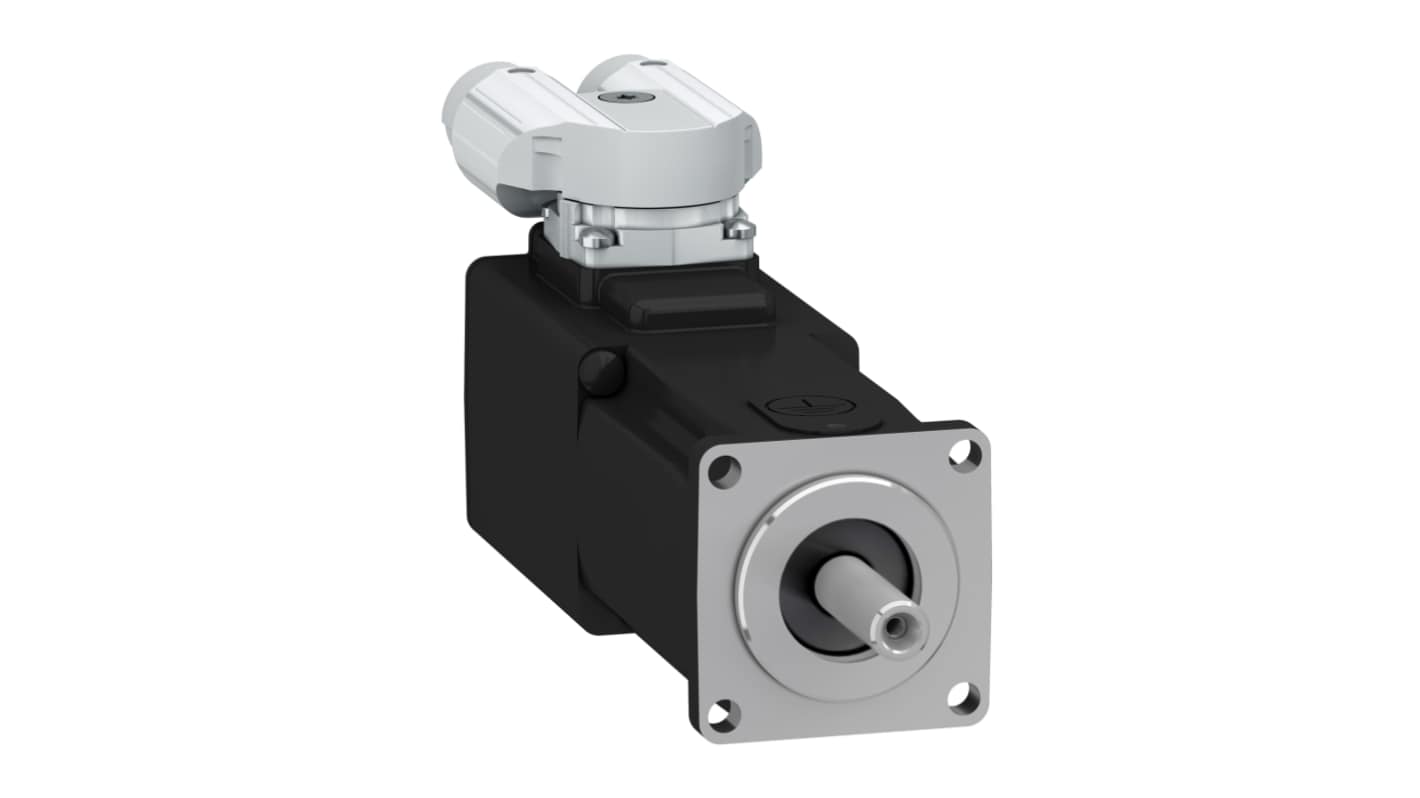

Schneider Electric 400 V 398 W Servo Motor, 9000 rpm, 1.37 Nm Max Output Torque, 8mm Shaft Diameter
- RS Stock No.:
- 655-253
- Mfr. Part No.:
- BSH0402P06F2A
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,401.69
(exc. VAT)
£1,682.03
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- 999,999,999 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,401.69 |
*price indicative
- RS Stock No.:
- 655-253
- Mfr. Part No.:
- BSH0402P06F2A
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Maximum Output Torque | 1.37 Nm | |
Supply Voltage | 400 V | |
Output Speed | 9000 rpm | |
Power Rating | 398 W | |
Stall Torque | 0.38Nm | |
Shaft Diameter | 8mm | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Maximum Output Torque 1.37 Nm | ||
Supply Voltage 400 V | ||
Output Speed 9000 rpm | ||
Power Rating 398 W | ||
Stall Torque 0.38Nm | ||
Shaft Diameter 8mm | ||
- COO (Country of Origin):
- DE
The Schneider Electric AC servo motor is designed for high-performance applications requiring precision and reliability. With a maximum mechanical speed of 10000 rpm and a continuous stall torque of 0.38 N.m, this motor is ideal for various industrial settings. It features a smooth shaft end for seamless integration and comes with an IP50 degree of protection, ensuring durability in less-than-ideal environments. Equipped with a holding brake, this motor enhances control during operation. The device is also compatible with Lexium 32 systems and supports a supply voltage of up to 400 V, delivering the power needed for demanding tasks. Its compact design and robust specifications make it an optimal choice for servo applications.
Continuous stall current rated at 1.5 A for consistent performance
Speed feedback resolution of 32768 points/turn for precise control
Includes a holding brake for improved safety in static conditions
Natural convection cooling type enhances operational efficiency
Constructed with a compact 119.4 mm length, facilitating space-saving installations
Features a torque constant of 0.26 N.m/A, ensuring effective power usage
Equipped with rotatable right-angled connectors for flexible installation options
Lightweight design with a net weight of only 0.8 kg, ease in handling and installation
Mechanical design supports four mounting holes for secure installation in various configurations
Designed with 5.0 motor poles for optimal performance in diverse applications
Speed feedback resolution of 32768 points/turn for precise control
Includes a holding brake for improved safety in static conditions
Natural convection cooling type enhances operational efficiency
Constructed with a compact 119.4 mm length, facilitating space-saving installations
Features a torque constant of 0.26 N.m/A, ensuring effective power usage
Equipped with rotatable right-angled connectors for flexible installation options
Lightweight design with a net weight of only 0.8 kg, ease in handling and installation
Mechanical design supports four mounting holes for secure installation in various configurations
Designed with 5.0 motor poles for optimal performance in diverse applications
