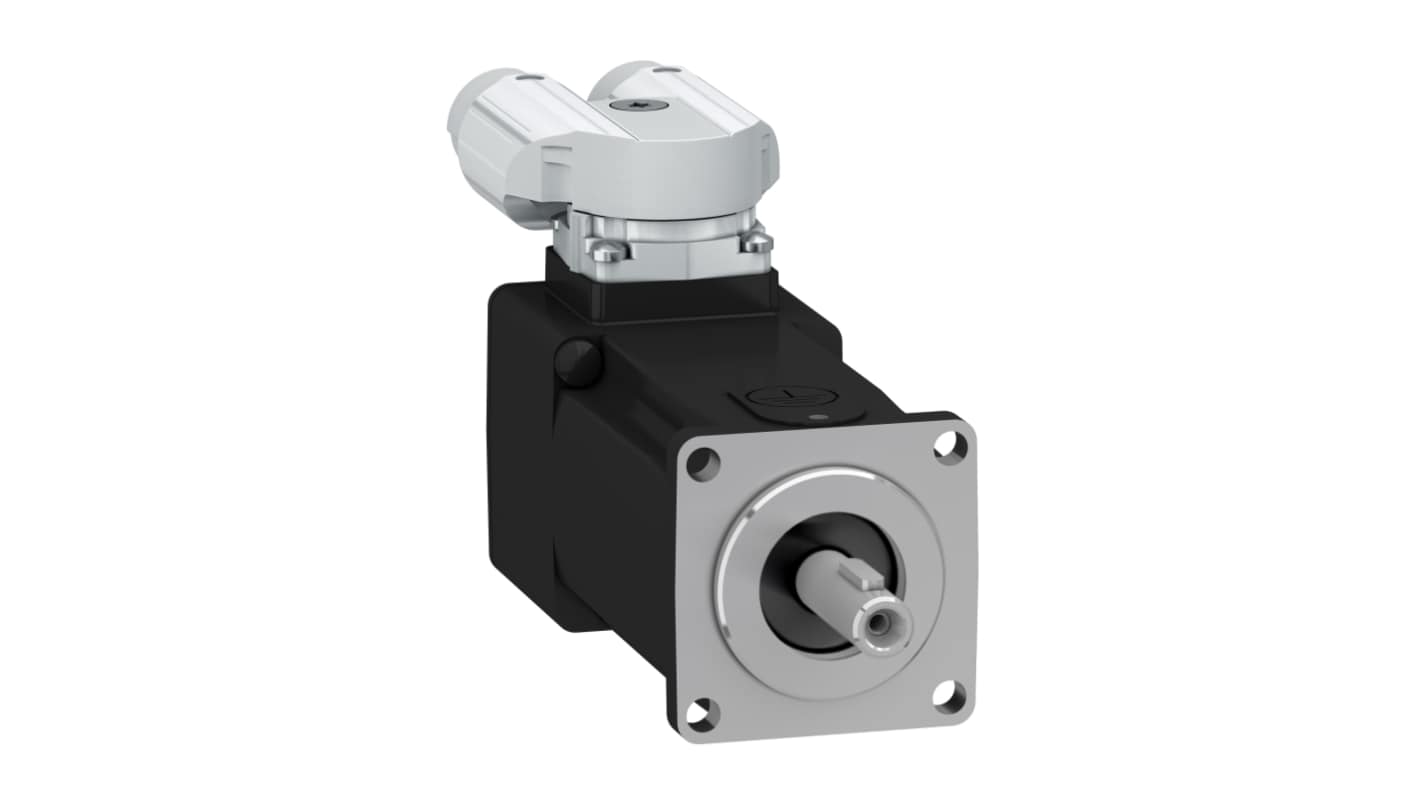

Schneider Electric 400 V 398 W Servo Motor, 9000 rpm, 1.37 Nm Max Output Torque, 8mm Shaft Diameter
- RS Stock No.:
- 654-465
- Mfr. Part No.:
- BSH0402P17A2A
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,120.30
(exc. VAT)
£1,344.36
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,120.30 |
*price indicative
- RS Stock No.:
- 654-465
- Mfr. Part No.:
- BSH0402P17A2A
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Output Torque | 1.37 Nm | |
| Supply Voltage | 400 V | |
| Output Speed | 9000 rpm | |
| Power Rating | 398 W | |
| Stall Torque | 0.38Nm | |
| Shaft Diameter | 8mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Output Torque 1.37 Nm | ||
Supply Voltage 400 V | ||
Output Speed 9000 rpm | ||
Power Rating 398 W | ||
Stall Torque 0.38Nm | ||
Shaft Diameter 8mm | ||
- COO (Country of Origin):
- DE
The Schneider Electric AC servo motor offers exceptional performance with a maximum mechanical speed of 10,000 rpm, designed for precision motion control in demanding applications. This robust servo motor, featuring a keyed shaft and an IP50 degree of protection, is ideal for environments where reliability is crucial. Its continuous stall torque of 0.38 N.m ensures consistent performance, while the absence of a holding brake simplifies installation and maintenance. Compatible with the Lexium 32 range, this motor supports a maximum supply voltage of 400 V, making it an intelligent choice for automation solutions requiring efficiency and durability.
Continuous stall torque of 0.38 N.m for reliable operation
Maximum mechanical speed reaches up to 10,000 rpm for enhanced performance
Rotatable right-angled connectors for flexible electrical connections
Natural convection cooling ensures optimal temperature management
Feedback type features multiturn SinCos Hiperface for precise positioning
IP50 protection level for resistance against dust and moderate exposure to moisture
Stator resistance rated at 11.6 Ohm at 20 °C for stable performance
Compact design with a motor flange size of 40 mm for space-saving applications
Lightweight at only 0.6 kg, facilitating easier integration into various systems
Designed for three-phase networks, ensuring compatibility with advanced industrial setups
Maximum mechanical speed reaches up to 10,000 rpm for enhanced performance
Rotatable right-angled connectors for flexible electrical connections
Natural convection cooling ensures optimal temperature management
Feedback type features multiturn SinCos Hiperface for precise positioning
IP50 protection level for resistance against dust and moderate exposure to moisture
Stator resistance rated at 11.6 Ohm at 20 °C for stable performance
Compact design with a motor flange size of 40 mm for space-saving applications
Lightweight at only 0.6 kg, facilitating easier integration into various systems
Designed for three-phase networks, ensuring compatibility with advanced industrial setups
