Schneider Electric 480 V 1.68 W Servo Motor, 8000 rpm, 10.2 Nm Max Output Torque, 14mm Shaft Diameter
- RS Stock No.:
- 653-982
- Mfr. Part No.:
- BMH0703P01F2A
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,642.46
(exc. VAT)
£1,970.95
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,642.46 |
*price indicative
- RS Stock No.:
- 653-982
- Mfr. Part No.:
- BMH0703P01F2A
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Output Torque | 10.2 Nm | |
| Supply Voltage | 480 V | |
| Output Speed | 8000 rpm | |
| Power Rating | 1.68 W | |
| Stall Torque | 3.4Nm | |
| Shaft Diameter | 14mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Output Torque 10.2 Nm | ||
Supply Voltage 480 V | ||
Output Speed 8000 rpm | ||
Power Rating 1.68 W | ||
Stall Torque 3.4Nm | ||
Shaft Diameter 14mm | ||
- COO (Country of Origin):
- DE

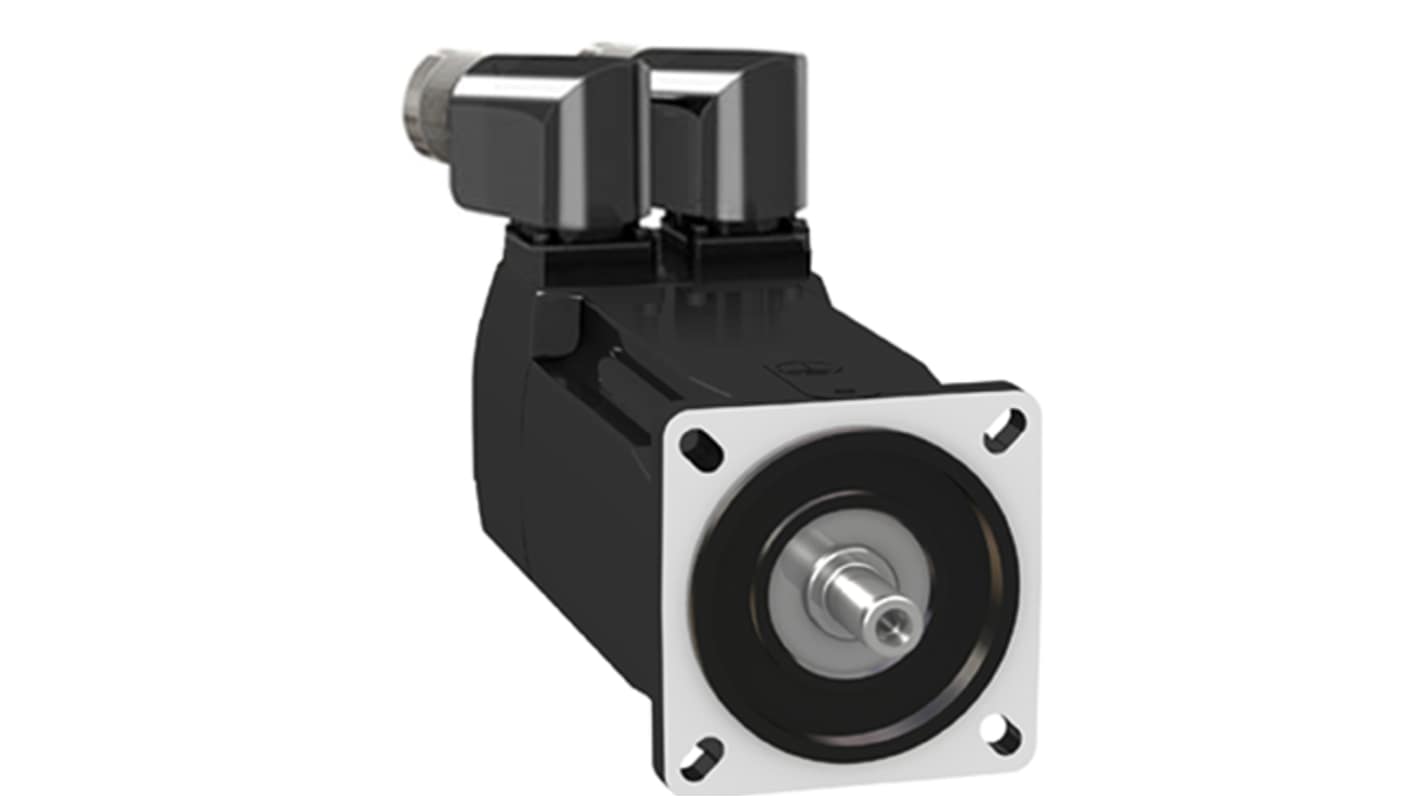

The Schneider Electric Servo motor offers unparalleled performance for precise control in various industrial applications. Designed for maximum mechanical speed of 8000 rpm, this motor delivers a continuous stall torque of 3.4 N.m, ensuring robust operation for demanding tasks. Built with features such as a holding brake and IP54 protection, the BMH motor provides high durability and reliability even in harsh environments. Its compatibility with the Lexium 32 range enhances its versatility, while the single turn SinCos Hiperface feedback type guarantees accurate position control. Overall, the BMH is engineered to meet the evolving needs of modern automation systems.
Maximum mechanical speed of 8000 rpm ensures efficiency in operations
Continuous stall torque of 3.4 N.m provides robust performance under load
Peak stall torque reaches up to 10.2 N.m allowing for high startup loads
Rated supply voltage of 480 V optimises energy consumption
Compact design includes a smooth shaft, facilitating seamless integration
IP54 protection standard shields against dust and water, increasing longevity
Equipped with a holding brake for added safety and precision
Rotatable right-angled connectors simplify installation and maintenance
Efficient natural convection cooling enhances motor reliability
Environmentally conscious design, featuring recyclable packaging
Continuous stall torque of 3.4 N.m provides robust performance under load
Peak stall torque reaches up to 10.2 N.m allowing for high startup loads
Rated supply voltage of 480 V optimises energy consumption
Compact design includes a smooth shaft, facilitating seamless integration
IP54 protection standard shields against dust and water, increasing longevity
Equipped with a holding brake for added safety and precision
Rotatable right-angled connectors simplify installation and maintenance
Efficient natural convection cooling enhances motor reliability
Environmentally conscious design, featuring recyclable packaging
