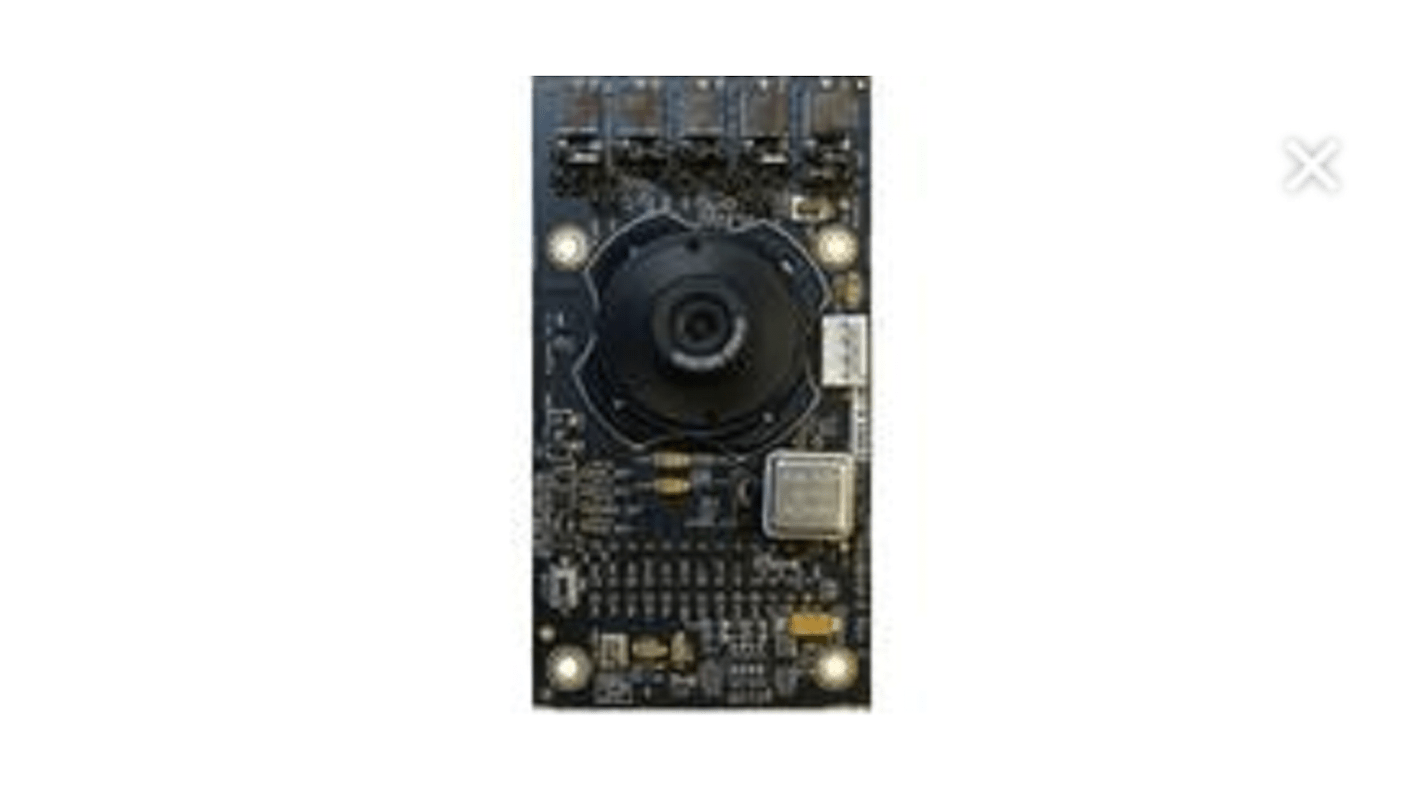

onsemi CMOS Digital Image Sensor Image Sensor Sensor Board for MT9J003 Digital Video Cameras

View all Sensor Development Tools
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
248-5375
Mfr. Part No.:
MT9J003I12STMUH-GEVB
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Sensor Technology

Image Sensor

Featured Device

MT9J003

For Use With

Digital Video Cameras

Kit Classification

Sensor Board

Kit Name

CMOS Digital Image Sensor

The On Semiconductor 1/2.3-inch CMOS active-pixel digital imaging sensor with an active pixel array of 3856 (H) x 2764 (V) including border pixels, it incorporates sophisticated on-chip camera functions such as windowing, mirroring, column and row skip modes, and snapshot mode, when operated in its default 4:3 still mode, the sensor generates a full resolution image at 15 frames per second (fps) using the HiSPi serial interface, an on-chip analog to digital converter (ADC) generates a 12-bit value for each pixel.

1080p Digital Video Mode Simple Two-wire Serial Interface
Auto black level calibration
Support for external mechanical shutter
Support for external LED or Xenon flash
High frame rate preview mode with arbitrary down-size scaling from maximum resolution
Programmable Controls Gain, Horizontal and Vertical Blanking, Auto Black Level Offset Correction, Frame Size/rate, Exposure, Left–right and Top–bottom Image Reversal, Window Size, and Panning
