RS PRO Right Angle Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 877-1053
- Distrelec Article No.:
- 304-03-609
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£23.82
(exc. VAT)
£28.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 201 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 35 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £23.82 |
| 5 - 9 | £22.61 |
| 10 - 49 | £21.42 |
| 50 + | £19.07 |
*price indicative
- RS Stock No.:
- 877-1053
- Distrelec Article No.:
- 304-03-609
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 8 | |
| Length | 5m | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 2 A | |
| Voltage Rating | 30 V | |
| IP Rating | IP67 | |
| Conductor Material | CuZn | |
| Maximum Operating Temperature | +75°C | |
| Outer Diameter | 6.4mm | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -25°C | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -25 → +75 °C | |
| American Wire Gauge | 24 AWG | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 8 | ||
Length 5m | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 2 A | ||
Voltage Rating 30 V | ||
IP Rating IP67 | ||
Conductor Material CuZn | ||
Maximum Operating Temperature +75°C | ||
Outer Diameter 6.4mm | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -25 → +75 °C | ||
American Wire Gauge 24 AWG | ||
- COO (Country of Origin):
- IN

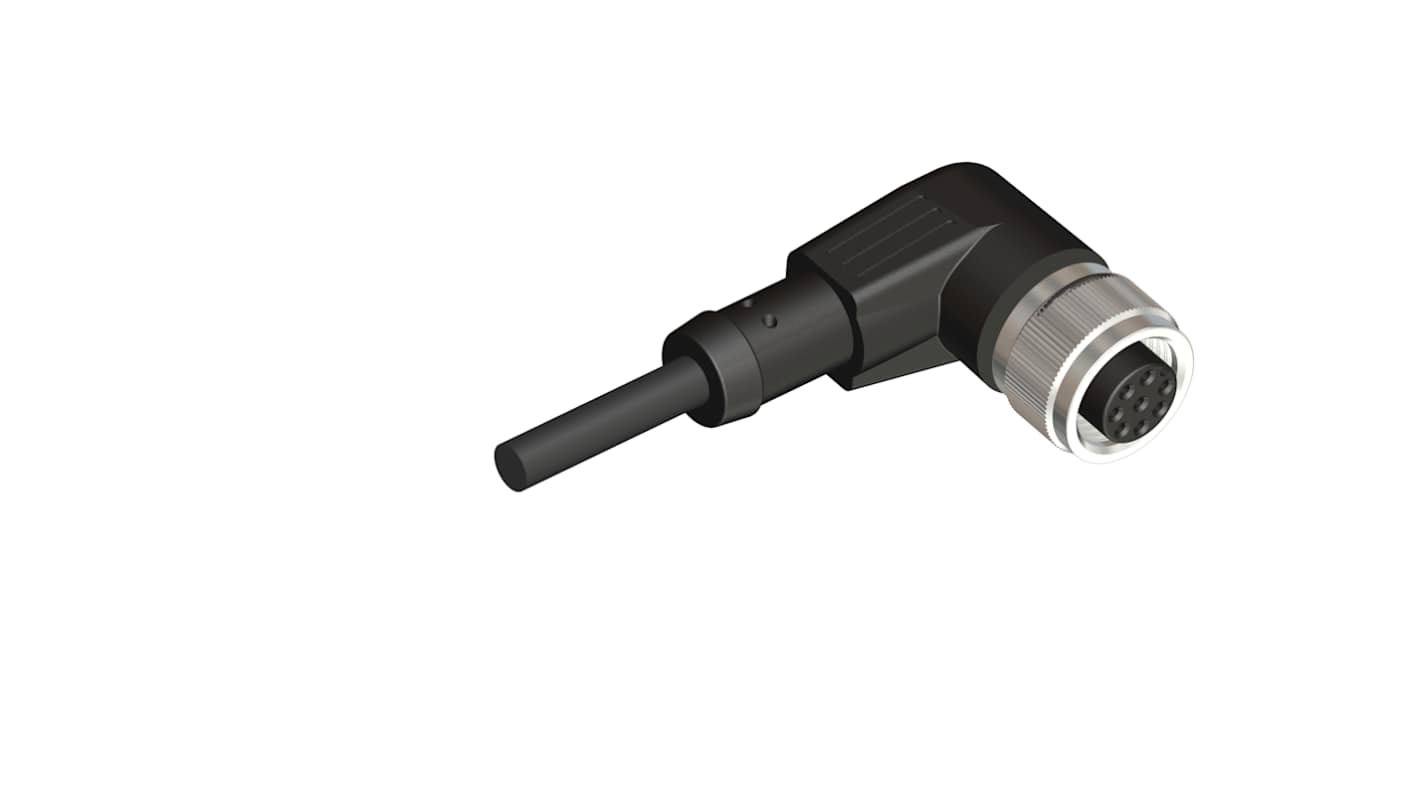

RS PRO 8 Core M12 Sensor Actuator Cable Assembly (5m)
An M12 sensor cable with a partially stripped unterminated end for the creation of bespoke cable assemblies. M12 connector cable assemblies are commonly used in sensor and automation equipment. Boasting a high degree of environmental protection, they are ideal for industrial use.
The M12 actuator cable is fitted with a PUR sheath and is rated to IP67 for protection from dust and water. Featuring Gold plated contacts for excellent conductivity, secured with a Nickel plated Brass coupling ring and suitable for temperatures ranging from -25 to +75°C.
A hardwearing cable suitable for industrial use and ideal for when secure and reliable data transfer is needed.
The M12 actuator cable is fitted with a PUR sheath and is rated to IP67 for protection from dust and water. Featuring Gold plated contacts for excellent conductivity, secured with a Nickel plated Brass coupling ring and suitable for temperatures ranging from -25 to +75°C.
A hardwearing cable suitable for industrial use and ideal for when secure and reliable data transfer is needed.
Features and Benefits
M12 sensor cable assembly
Right angle
8 core cable
1.25mm Core diameter
Un-terminated and partially stripped end
Insulation Resistance 100 MΩ
Wide operating temperature range of -25 to 75°C
PUR sheath
Neoprene O-Ring
Nickel plated Brass coupling nut
IP67 rated
5m in length
Right angle
8 core cable
1.25mm Core diameter
Un-terminated and partially stripped end
Insulation Resistance 100 MΩ
Wide operating temperature range of -25 to 75°C
PUR sheath
Neoprene O-Ring
Nickel plated Brass coupling nut
IP67 rated
5m in length
