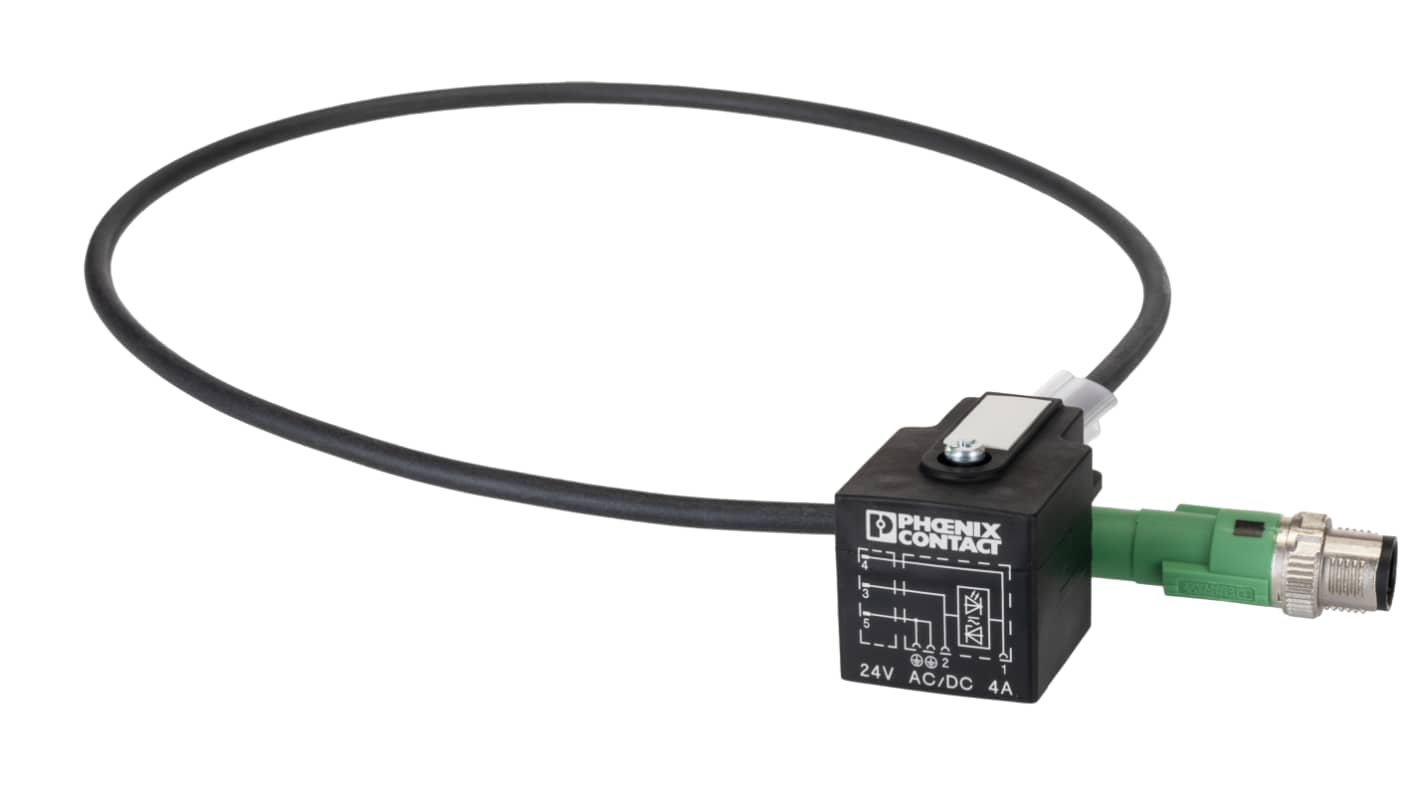

Phoenix Contact Straight Male 3 way M12 to DIN 43650 Form A Sensor Actuator Cable, 600mm
- RS Stock No.:
- 861-4008
- Mfr. Part No.:
- 1434895
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£14.84
(exc. VAT)
£17.81
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 32 left, ready to ship
- Plus 7 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £14.84 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£14.73
(exc. VAT)
£17.68
(inc. VAT)
- RS Stock No.:
- 861-4008
- Mfr. Part No.:
- 1434895
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | 6-PUR/A-1L-Z SCO, SAC-3P-MS/ 0 | |
| Number of Cores | 3 | |
| Cross Sectional Area | 3x 0.5 mm² | |
| Sheath Colour | Black, Grey | |
| Length | 600mm | |
| Sheath Material | Polyurethane PUR | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | M12 | |
| Connector 2 | DIN 43650 Form A | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 24 V ac/dc | |
| IP Rating | IP65, IP67 | |
| Maximum Operating Temperature | +80°C | |
| Minimum Bend Radius | 22.5 mm, 45 mm | |
| Connector 1 Housing Gender | Male | |
| Insulation Material | PP | |
| Standards Met | IEC 61076-2-101 | |
| Conductor Material | Bare Cu litz wires | |
| Minimum Operating Temperature | -15 °C, -40 °C | |
| American Wire Gauge | 20 AWG | |
| Operating Temperature Range | -15 → +80 °C, -40 → +80 °C | |
| Conductor Resistance | 39 O/km | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series 6-PUR/A-1L-Z SCO, SAC-3P-MS/ 0 | ||
Number of Cores 3 | ||
Cross Sectional Area 3x 0.5 mm² | ||
Sheath Colour Black, Grey | ||
Length 600mm | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 2 DIN 43650 Form A | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 24 V ac/dc | ||
IP Rating IP65, IP67 | ||
Maximum Operating Temperature +80°C | ||
Minimum Bend Radius 22.5 mm, 45 mm | ||
Connector 1 Housing Gender Male | ||
Insulation Material PP | ||
Standards Met IEC 61076-2-101 | ||
Conductor Material Bare Cu litz wires | ||
Minimum Operating Temperature -15 °C, -40 °C | ||
American Wire Gauge 20 AWG | ||
Operating Temperature Range -15 → +80 °C, -40 → +80 °C | ||
Conductor Resistance 39 O/km | ||
- COO (Country of Origin):
- PL
Phoenix Contact SAC-3P-MS/ 0,6-PUR/A-1L-Z SCO Series Sensor Actuator Cable, 24V AC/DC Voltage Rating, IP65/IP67 - 1434895
This sensor actuator cable is designed for stable connections in industrial automation applications. With 3 cores and a length of 600mm, it ensures effective signal transmission. The cable features a PUR sheath for enhanced durability and flexibility, making it suitable for a range of environments. It utilises M12 connector technology for straightforward connections and includes a valve connector to improve compatibility.
Features & Benefits
• Robust PUR halogen-free sheath increases resistance to environmental stress
• Unshielded design facilitates integration in various setups
• Supports 24V power for consistent operation in devices
• IP65 and IP67 ratings provide protection against moisture ingress
• 3 core design allows versatile application across systems
• LED status indicator simplifies diagnostics and monitoring
• Unshielded design facilitates integration in various setups
• Supports 24V power for consistent operation in devices
• IP65 and IP67 ratings provide protection against moisture ingress
• 3 core design allows versatile application across systems
• LED status indicator simplifies diagnostics and monitoring
Applications
• Suitable for sensor and actuator connections in automated systems
• Commonly utilised in robotics and machinery with valve interfaces
• Applicable in environments requiring high-temperature operations
• Ideal for needing quick and efficient diagnostic feedback
• Commonly utilised in robotics and machinery with valve interfaces
• Applicable in environments requiring high-temperature operations
• Ideal for needing quick and efficient diagnostic feedback
Can it withstand high temperatures?
Yes, it operates effectively from -40°C to +80°C.
Is it suitable for use in harsh environments?
Yes, the cable’s IP65 and IP67 ratings ensure protection against dust and water.
Will it integrate with standard industrial connectors?
Yes, it features M12 and DIN 43650 Form A connectors for compatibility.
Can this cable be used for diagnostics?
Yes, the built-in LED status indicator aids in troubleshooting.
