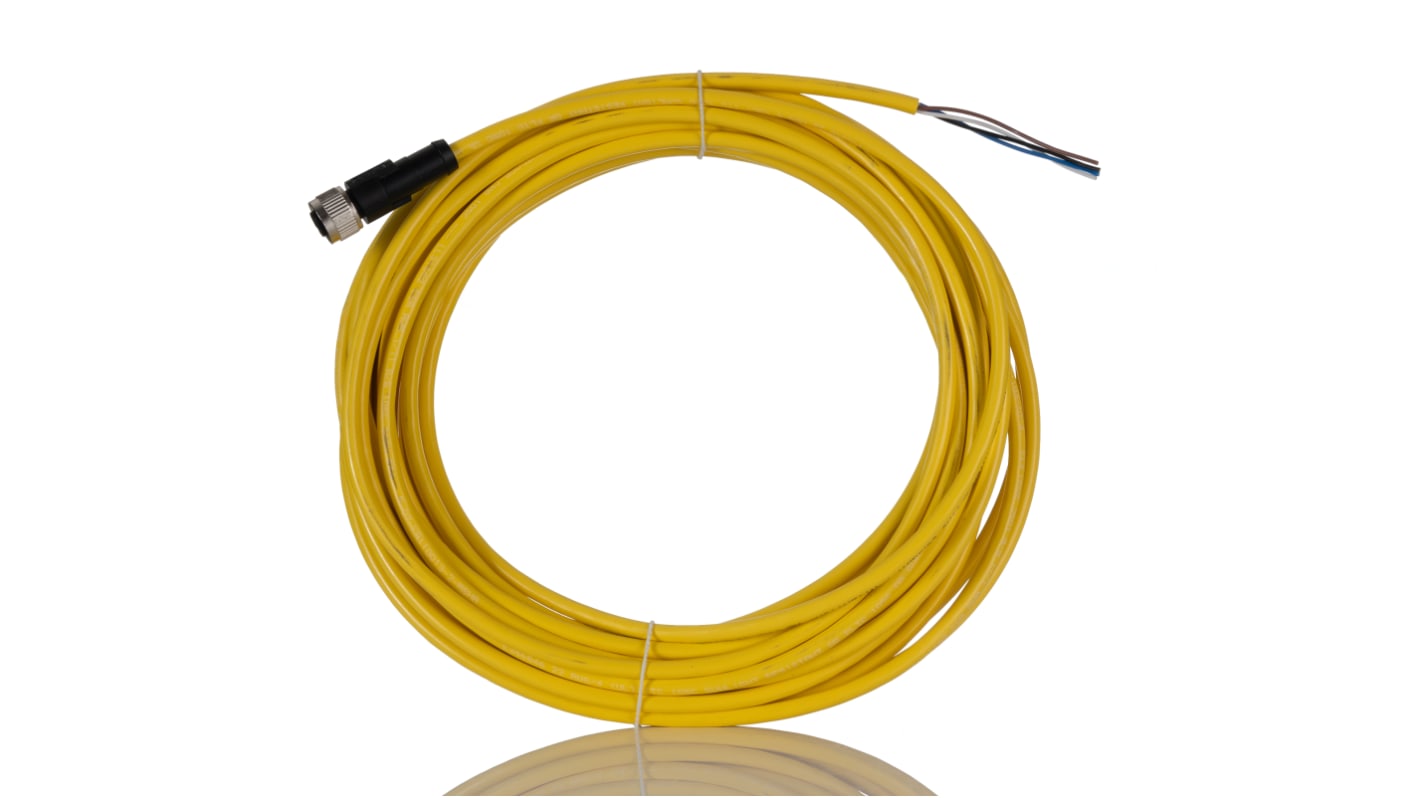

Phoenix Contact Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m
- RS Stock No.:
- 802-8548
- Mfr. Part No.:
- 1406244
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£19.21
(exc. VAT)
£23.05
(inc. VAT)
FREE delivery for orders over £50.00
- 11 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 26 November 2025
Units | Per unit |
|---|---|
| 1 - 4 | £19.21 |
| 5 - 24 | £18.63 |
| 25 + | £18.06 |
*price indicative
- RS Stock No.:
- 802-8548
- Mfr. Part No.:
- 1406244
- Brand:
- Phoenix Contact
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P-10.0-542/ FS SCO BK | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Sheath Material | PVC | |
| Length | 10m | |
| Sheath Colour | Yellow | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Female | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielding | Unshielded | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68 | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -30°C | |
| Cable Shape | Round | |
| Standards Met | UL | |
| Maximum Operating Temperature | +105°C | |
| Connector 1 Housing Gender | Female | |
| Fire Behaviour | Self-extinguishing | |
| American Wire Gauge | 22 AWG | |
| Conductor Resistance | 50.5 Ω/km | |
| Outer Diameter | 5mm | |
| Minimum Bend Radius | 8 x D | |
| Conductor Material | Tin Plated Copper Litz Wires | |
| Operating Temperature Range | -25 → +90 °C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-10.0-542/ FS SCO BK | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Sheath Material PVC | ||
Length 10m | ||
Sheath Colour Yellow | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Female | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielding Unshielded | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68 | ||
Insulation Material PVC | ||
Minimum Operating Temperature -30°C | ||
Cable Shape Round | ||
Standards Met UL | ||
Maximum Operating Temperature +105°C | ||
Connector 1 Housing Gender Female | ||
Fire Behaviour Self-extinguishing | ||
American Wire Gauge 22 AWG | ||
Conductor Resistance 50.5 Ω/km | ||
Outer Diameter 5mm | ||
Minimum Bend Radius 8 x D | ||
Conductor Material Tin Plated Copper Litz Wires | ||
Operating Temperature Range -25 → +90 °C | ||
- COO (Country of Origin):
- US
Phoenix Contact Sensor Actuator Cable, 10m Length, 22AWG - SAC-4P-10,0-542/M12FS BK - 1406244
Thanks to its tough PVC outer jacket, you can count on this cable to resist wear and tear. It's also UV-resistant, making it a durable choice for weathering direct sunlight in outdoor applications. A wide ambient operating temperature range of -30°C to +105°C in fixed installations assures you it can stand up to the heat in harsh working conditions. You'll find this assembly handy for hooking up machinery on construction or mining sites.
Features & Benefits
• Handles at least 100 insertion and withdrawal cycles for long-term use
• Combined IP65, IP67 and IP68 ratings indicate that it's completely shielded from dust particles and water contamination
• Highly conductive copper-tin alloy contact material ensures stable current transmissions
