Phoenix Contact Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 794-4528
- Mfr. Part No.:
- 1424112
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£40.50
(exc. VAT)
£48.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.50 |
| 5 - 24 | £39.29 |
| 25 + | £38.11 |
*price indicative
- RS Stock No.:
- 794-4528
- Mfr. Part No.:
- 1424112
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P-FST/ 1.5-PUR SH SCO | |
| Cross Sectional Area | 1.5 mm² | |
| Length | 1.5m | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Orientation | Straight | |
| Connector 2 | Unterminated | |
| Coding | T | |
| Shielded/Unshielded | Shielded | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 16 AWG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-FST/ 1.5-PUR SH SCO | ||
Cross Sectional Area 1.5 mm² | ||
Length 1.5m | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Orientation Straight | ||
Connector 2 Unterminated | ||
Coding T | ||
Shielded/Unshielded Shielded | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 16 AWG | ||
- COO (Country of Origin):
- PL

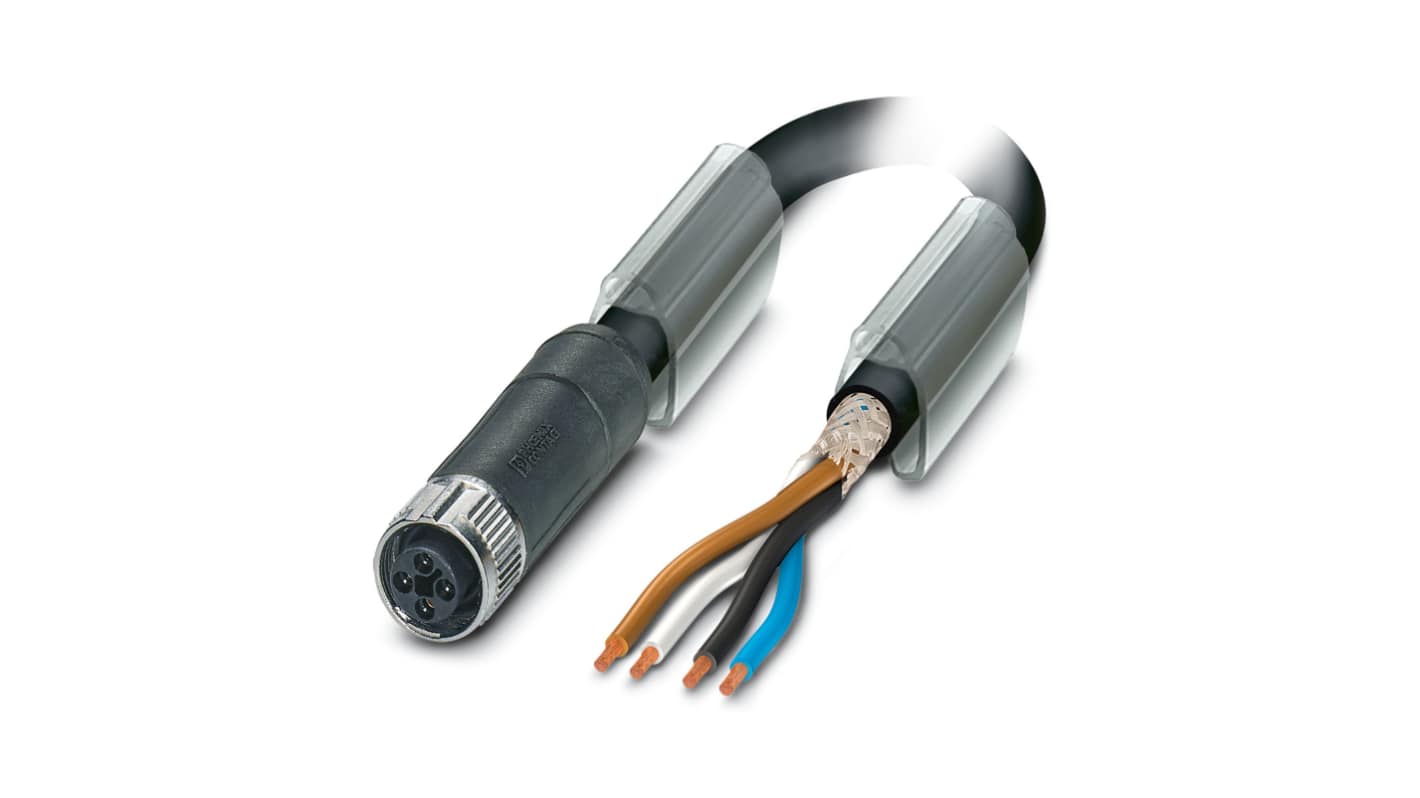

Phoenix Contact M12 T-Coded Power Connector Cable Assembly, Halogen Free
Phoenix Contact 4 way T-coded M12 power plug and socket connector cable assemblies with 1.5 metres of halogen free black PUR cable (free end), zinc die cast nickel plated knurl and a TPU self extinguishing connector body, designed for use in many applications that call for a durable M12 power connector with a high degree of environmental protection (IP67 rated).These M12 SPEEDCON fast locking system plug and socket connector cable assemblies have a current and voltage rating of 12A at 60Vdc and 360 degree shielding.
Rated at 12A, 60Vdc
Category III surge protection
IP67 rated when mated
Temperature range -25 to +85 °C
SPEEDCON fast locking system
Conductor cross section 4x1.5mm2
Wire colours brown, white, blue, black
Category III surge protection
IP67 rated when mated
Temperature range -25 to +85 °C
SPEEDCON fast locking system
Conductor cross section 4x1.5mm2
Wire colours brown, white, blue, black
Phoenix Contact M12 T-Coded Power Connectors
A comprehensive range of Phoenix Contact M12 connector designed for use within demanding environments, with a variety of fittings for enhanced corrosion resistance and durability.
