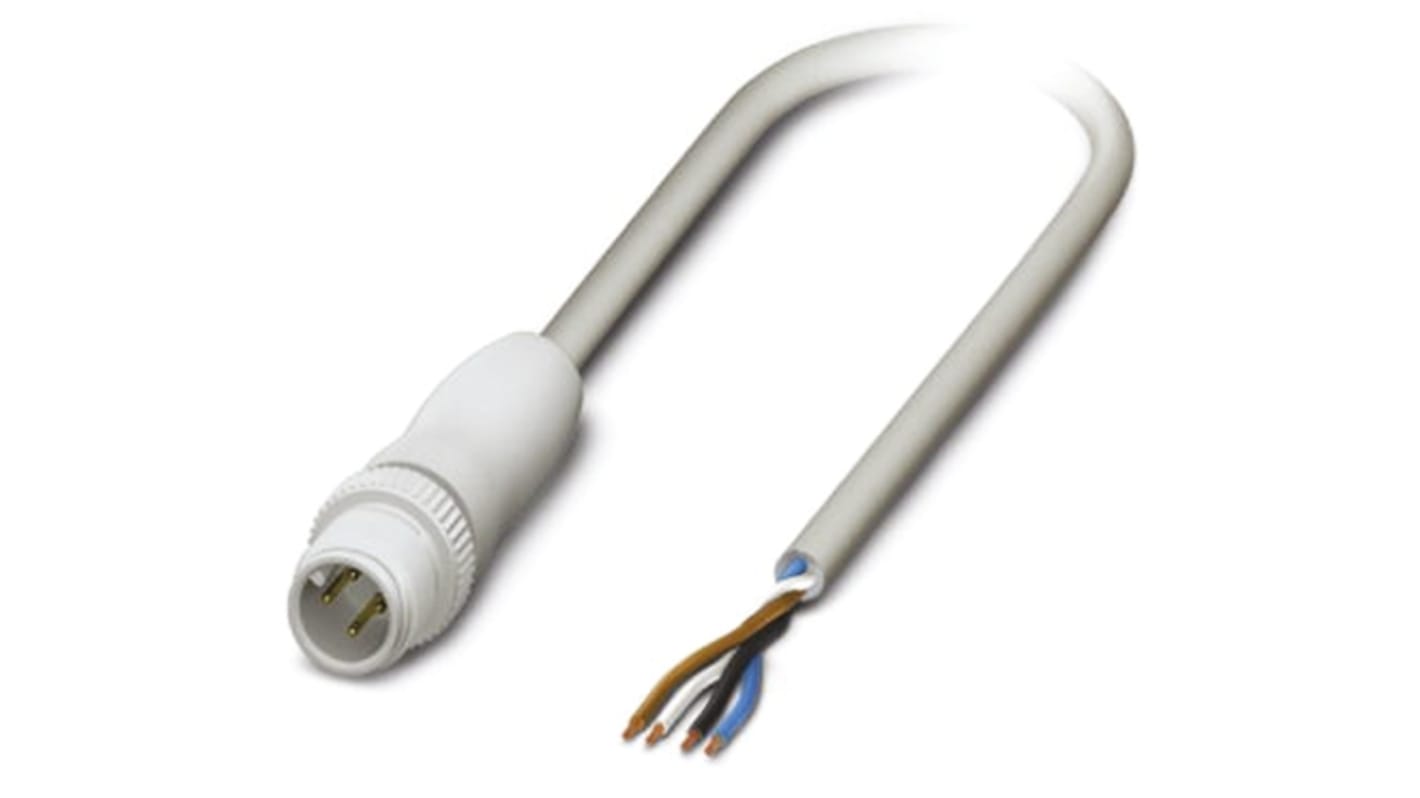

Phoenix Contact A-Coded M12 Sensor/Actuator Cable Assembly with Plastic Knurl
Phoenix Contact 4 and 5 way A-coded M12 sensor/actuator cable assembly with plastic knurl and Grey RAL 7035 PP-EPDM cable with a free end, easy to clean and contamination can easily be seen due to the light coloured plastic moulding, designed to meet the requirements of the pharmaceutical and food industries and for applications that have demanding hygienic requirements. IP Rated to IP69K, in straight and angled versions with a current and voltage rating of 4A at 250V and halogen free cable.
Operating temperature range -40 to +105 °C Conductor cross section 4 or 5 x0.34 mm2 Halogen free cable A-Coded M12 connector, 5 Metres of free end cable Brown, white, blue and black wire colours (4 Way) Brown, white, blue , black and grey wire colours (5 Way)
Note
Stock numbers 794-4382 and 794-4415 have 3 built in indicator LEDs.
A comprehensive range of Phoenix Contact M12 connector cable assemblies designed for use within food and pharmaceutical industries. A-Coded, with stainless steel fittings for enhanced corrosion resistance and durability.
Attribute
Value
Series
SAC-4P-M12MS/5.0-600 FB
Cross Sectional Area
0.34 mm²
Sheath Colour
Grey
Length
5m
Sheath Material
PP
Connector 1 Gender
Male
Connector 1
M12
Connector 1 Orientation
Straight
Connector 1 Number of Contacts
4
Connector 2
Unterminated
Coding
A
Shielded/Unshielded
Unshielded
Connector 1 Housing Gender
Male
American Wire Gauge
22 AWG
