Phoenix Contact Female M8 to Straight Male M8 Actuator/Sensor Cable, 5m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£21.22

(exc. VAT)

£25.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 32 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
  • Plus 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£21.22

*price indicative

RS Stock No.:
254-4601
Mfr. Part No.:
1404189
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SAC-8P

Number of Cores

8

Sheath Colour

Black, Grey

Length

5m

Connector 1

M8

Connector 1 Gender

Female

Connector 2

M8

Connector 2 Orientation

Straight

Connector 2 Gender

Male

Coding

A

Shielding

No

Shielded/Unshielded

Unshielded

Current Rating

1.5 A

Voltage Rating

30 V ac

IP Rating

IP65, IP67, IP68

Conductor Material

Bare Cu litz wires

Maximum Operating Temperature

+85°C

Standards Met

cUL, UL

Oil Resistant

Yes

Minimum Operating Temperature

-25°C

Operating Temperature Range

-25 → +85 °C

American Wire Gauge

26 AWG

Outer Diameter

5.1mm

Conductor Resistance

139 O/km

COO (Country of Origin):
PL

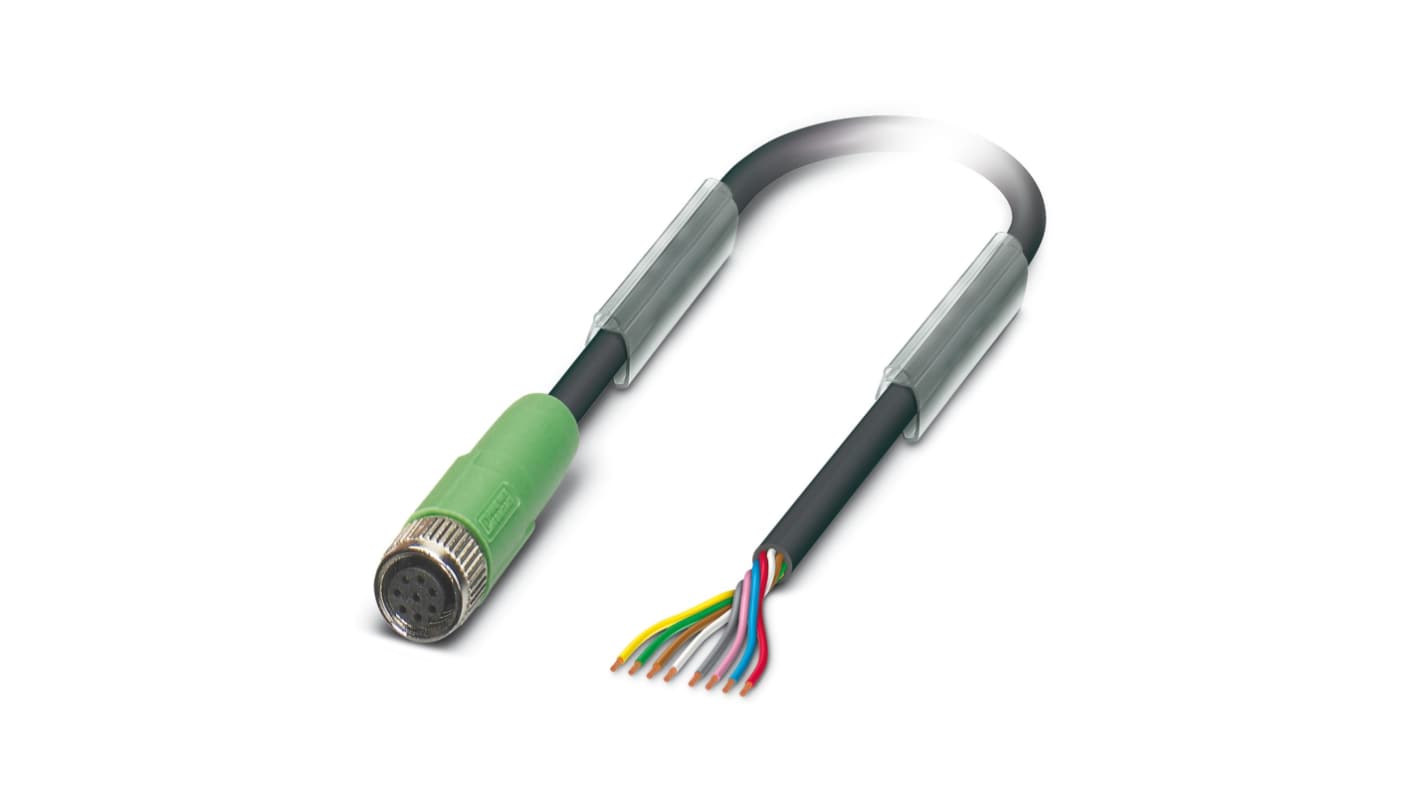

Phoenix Contact SAC-8P Series Actuator/Sensor Cable, 5m Length, Unshielded - 1404189


This actuator/sensor cable ensures effective connectivity for a variety of applications in automation, electronics, and mechanical fields. It acts as a crucial link between sensors and actuators, facilitating stable and efficient signal and power transmission. Its unshielded design accommodates a multitude of industrial environments while complying with recognised quality standards.

Features & Benefits


• 8-core design enhances signal transmission efficiency
• IP65, IP67, and IP68 ratings for environmental protection
• Supports up to 1.5A current, suitable for diverse applications
• Free cable end allows for straightforward installation and flexibility

Applications


• Suitable for environments with oil exposure
• Designed for settings that demand high temperature tolerance
• Perfect for compact installations where space is at a premium

What is the recommended temperature range for operation?


The cable functions effectively between -25°C and +85°C, allowing for flexibility in diverse environments.

How many insertion and withdrawal cycles can it handle?


It can withstand at least 100 insertion and withdrawal cycles for consistent performance.
