Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 144-7677
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 12 | |
| Cross Sectional Area | 0.25 mm² | |
| Sheath Material | PUR | |
| Length | 2m | |
| Sheath Colour | Black | |
| Shielding | Shielded | |
| Current Rating | 1.5 A | |
| Voltage Rating | 30 V | |
| IP Rating | IP67 | |
| Conductor Material | CuZn | |
| Conductor Resistance | ≥100 MΩ | |
| Operating Temperature Range | -25 → +75 °C | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +75°C | |
| American Wire Gauge | 24 AWG | |
| Standards Met | CE, TUV Certified | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 12 | ||
Cross Sectional Area 0.25 mm² | ||
Sheath Material PUR | ||
Length 2m | ||
Sheath Colour Black | ||
Shielding Shielded | ||
Current Rating 1.5 A | ||
Voltage Rating 30 V | ||
IP Rating IP67 | ||
Conductor Material CuZn | ||
Conductor Resistance ≥100 MΩ | ||
Operating Temperature Range -25 → +75 °C | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +75°C | ||
American Wire Gauge 24 AWG | ||
Standards Met CE, TUV Certified | ||
- COO (Country of Origin):
- IN

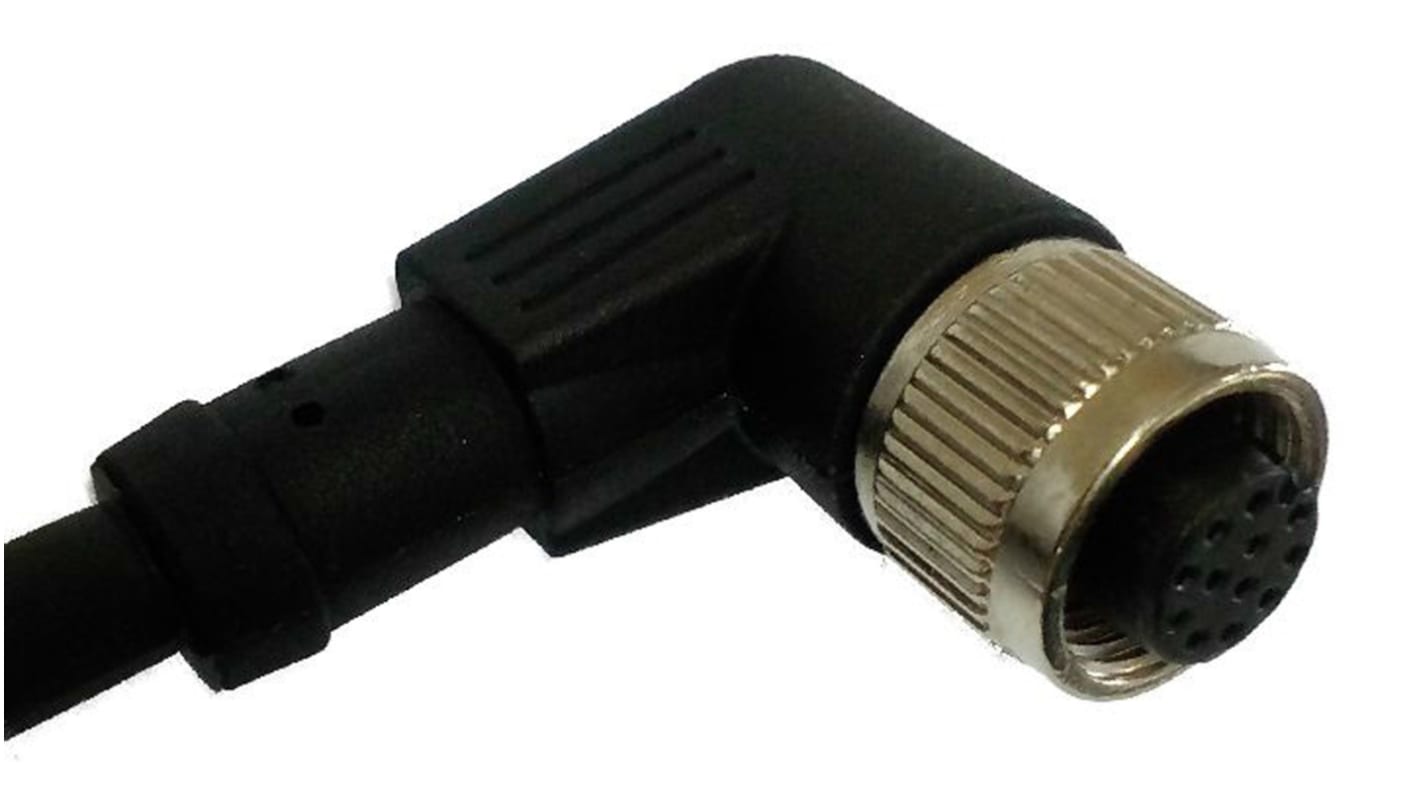

M12 Connector Female Angled
A series of RS Pro M12 connectors, right angled for applications where space is an issue. Each connector has a robust and durable gold plated contact plating, making them perfect for your application. These M12 female connectors are IP67 rated, boasting excellent use in harsh environments. All models are highly reliable and excellent quality.
Features & Benefits
• Supplied with Neoprene O-Ring
• Grip colour: Black
• Current rating: 4A
• Coupling nut: Brass nickel plated
• Grip colour: Black
• Current rating: 4A
• Coupling nut: Brass nickel plated
