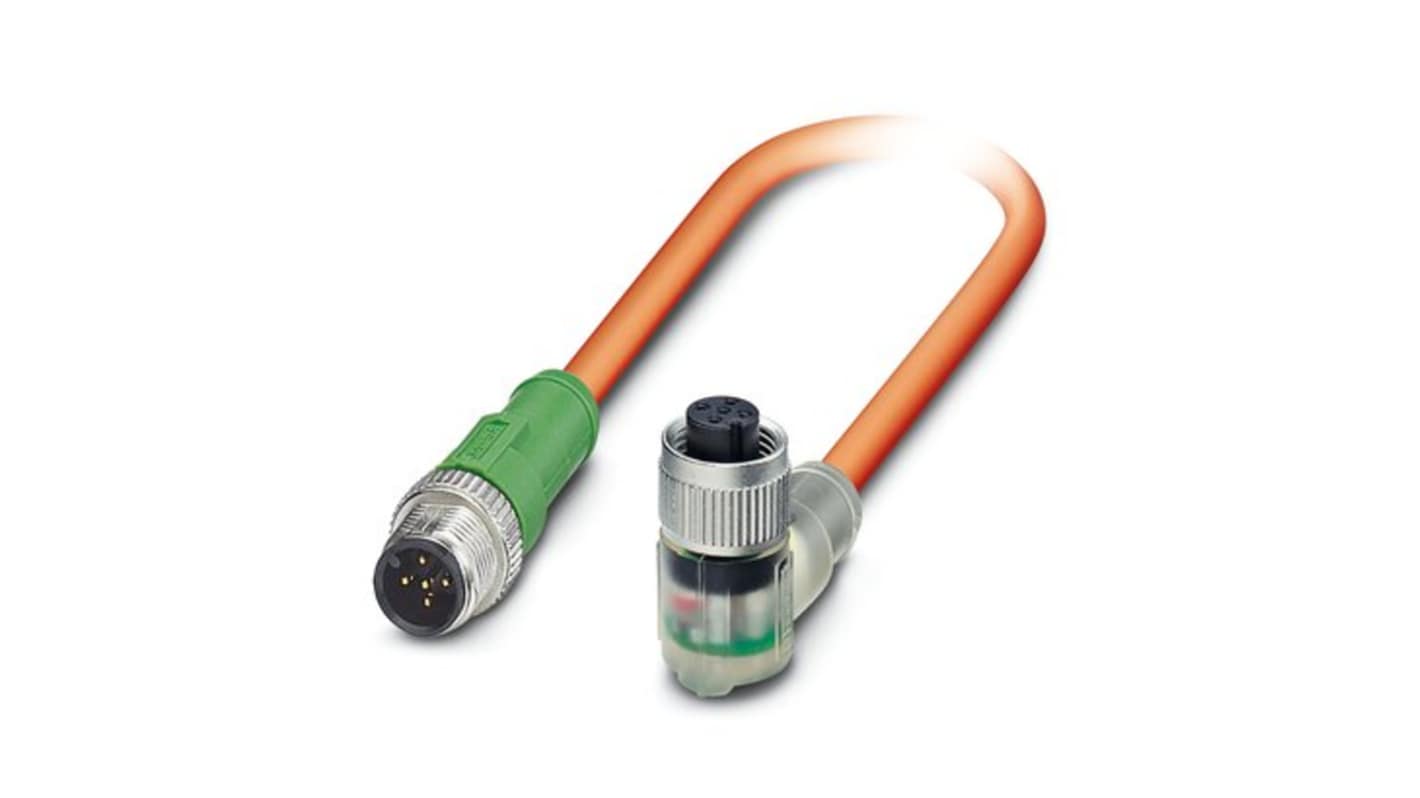

Phoenix Contact Straight Male 5 way M12 to Right Angle Female 5 way M12 Actuator/Sensor Cable, 600mm
- RS Stock No.:
- 268-998
- Mfr. Part No.:
- 1416147
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 268-998
- Mfr. Part No.:
- 1416147
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Cross Sectional Area | 5 x 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Orange | |
| Sheath Material | Polyurethane PUR | |
| Length | 600mm | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 5 | |
| Connector 2 | M12 | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Gender | Female | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area 5 x 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Colour Orange | ||
Sheath Material Polyurethane PUR | ||
Length 600mm | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 5 | ||
Connector 2 M12 | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Gender Female | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Sensor/actuator cable is designed specifically for robots and drag chains, offering robust performance and reliability in demanding environments. Crafted with a PUR halogen-free outer sheath, this cable is not only highly flexible but also welding-sputter resistant, making it ideal for use in body shop applications.
IP65 IP67 and IP68 ratings provide excellent protection against dust and water
Compatible with standard M12 connector specifications
Constructed with a durable outer sheath for added resilience
Supports high bending cycles for reliability in movable installations
Eco friendly materials contribute to sustainability
Compatible with standard M12 connector specifications
Constructed with a durable outer sheath for added resilience
Supports high bending cycles for reliability in movable installations
Eco friendly materials contribute to sustainability
