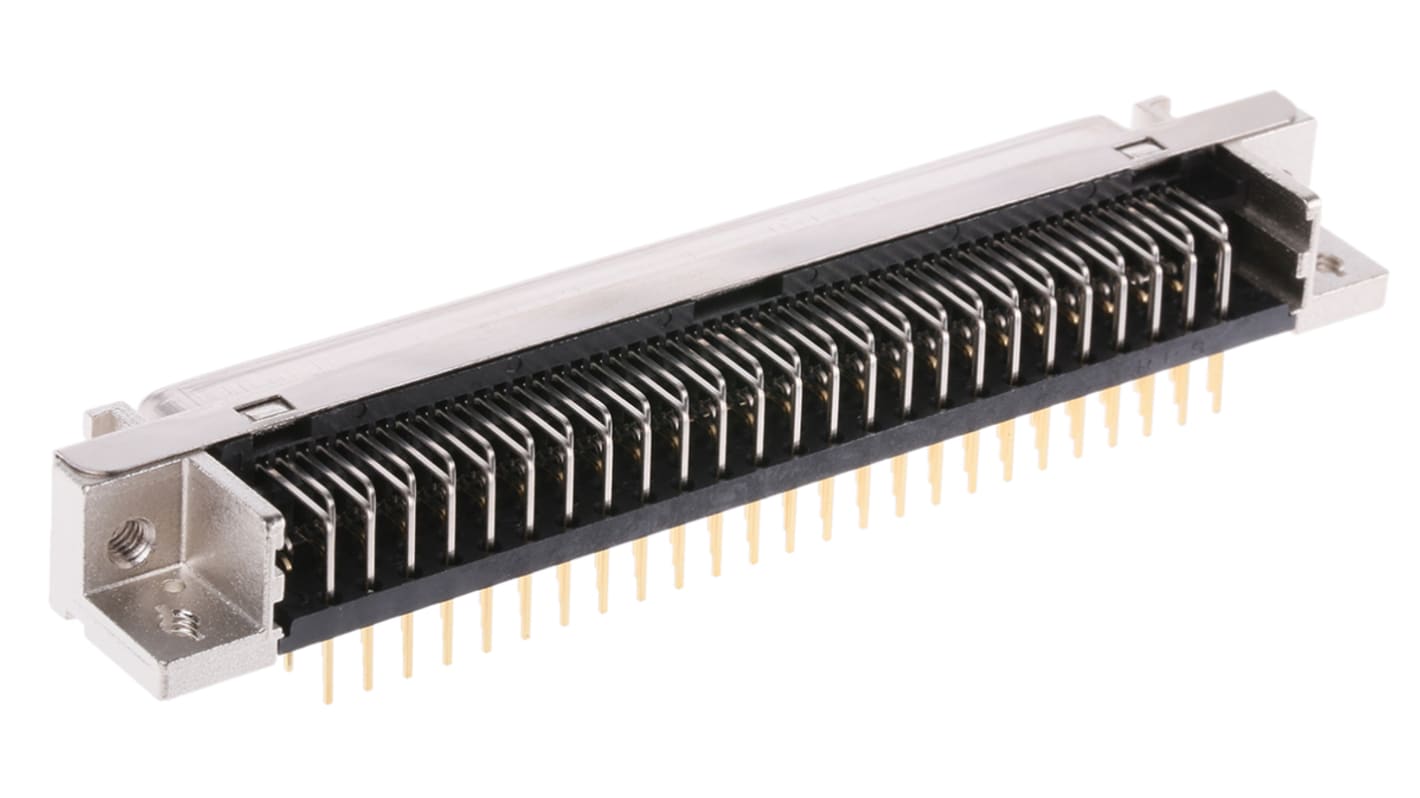

3M Female 100 Pin Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder
- RS Stock No.:
- 628-8688
- Mfr. Part No.:
- 102A0-5212 PL
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 628-8688
- Mfr. Part No.:
- 102A0-5212 PL
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Gender | Female | |
| Number of Contacts | 100 | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Contact Plating | Gold over Nickel | |
| Pitch | 2.54mm | |
| Current Rating | 500mA | |
| Voltage Rating | 150 V ac, 200 V dc | |
| Termination Method | Solder | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand 3M | ||
Gender Female | ||
Number of Contacts 100 | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Contact Plating Gold over Nickel | ||
Pitch 2.54mm | ||
Current Rating 500mA | ||
Voltage Rating 150 V ac, 200 V dc | ||
Termination Method Solder | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- JP
Straight female sockets for soldering onto PCBs
M2.5 / 12 and M2.6 / 02 inserts.
These sockets do not feature harpoons.
These sockets do not feature harpoons.
Mini Delta Ribbon (MDR)
Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications
Finger releasable latching backshells for cable mounting applications
A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
