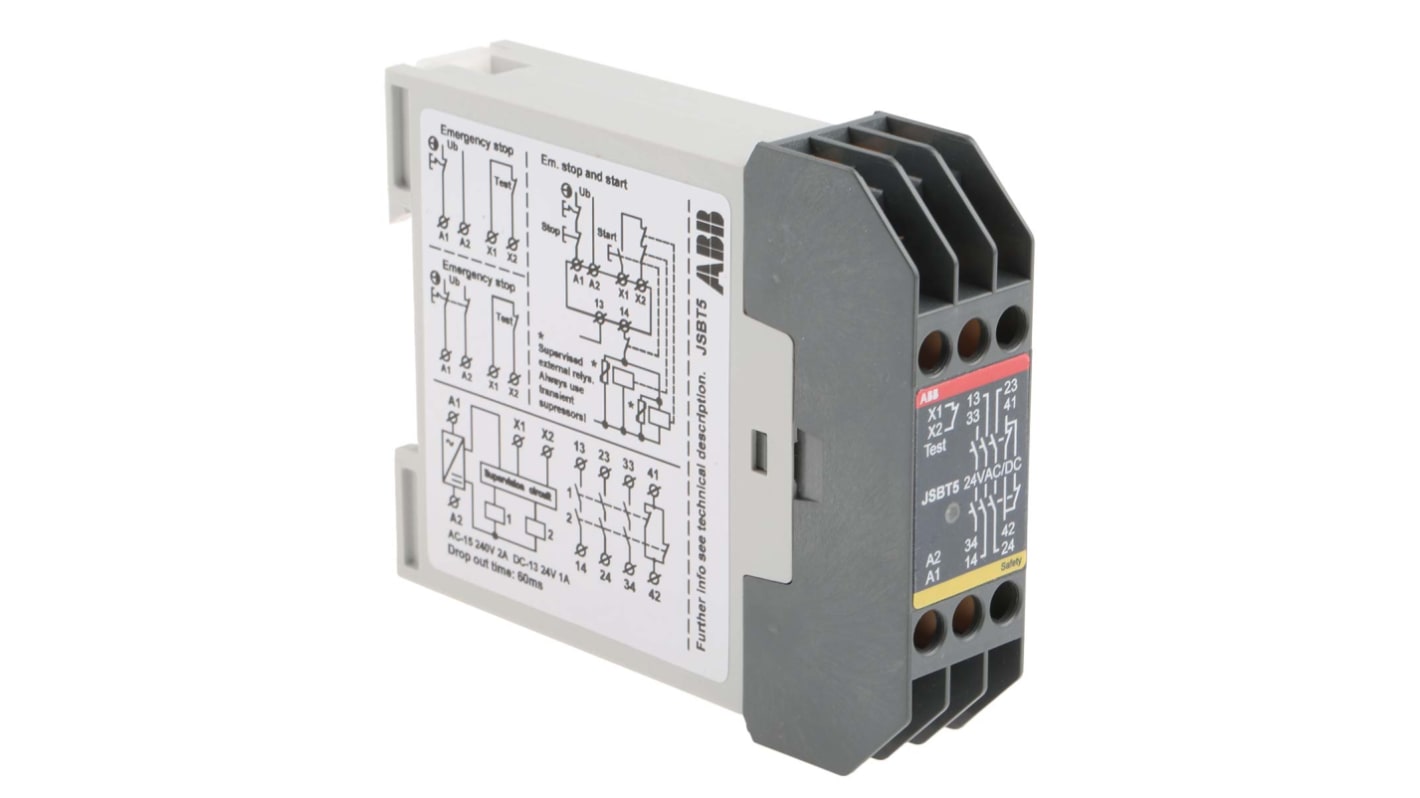

ABB Single-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V ac/dc, 3 Safety Contacts
- RS Stock No.:
- 917-6676
- Mfr. Part No.:
- 2TLA010005R0100 JSBT5 24AC/DC
- Brand:
- ABB
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£115.17
(exc. VAT)
£138.20
(inc. VAT)
- RS Stock No.:
- 917-6676
- Mfr. Part No.:
- 2TLA010005R0100 JSBT5 24AC/DC
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Supply Voltage | 24V ac/dc | |
| Number of Channels | 1 | |
| Safety Contacts | 3 | |
| Function | Emergency Stop, Safety Switch/Interlock | |
| Auxiliary Contacts | 1 | |
| Reset Method | Automatic | |
| Safety Category ISO 13849-1 | 4 | |
| PL ISO 13849-1 | e | |
| SIL IEC 61508 | 3 | |
| Terminal Type | Screw | |
| Series | JSBT5 | |
| Width | 22.5mm | |
| Depth | 99mm | |
| Length | 82mm | |
| Performance Level | e | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Supply Voltage 24V ac/dc | ||
Number of Channels 1 | ||
Safety Contacts 3 | ||
Function Emergency Stop, Safety Switch/Interlock | ||
Auxiliary Contacts 1 | ||
Reset Method Automatic | ||
Safety Category ISO 13849-1 4 | ||
PL ISO 13849-1 e | ||
SIL IEC 61508 3 | ||
Terminal Type Screw | ||
Series JSBT5 | ||
Width 22.5mm | ||
Depth 99mm | ||
Length 82mm | ||
Performance Level e | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- SE
JSB Safety Relay Series
The JSB safety relay from ABB has two inputs, which both have to be closed to keep the safety output contacts closed. This makes the device ideally suited to two hand safety control systems, however can be also used in many other safety control applications. When the JSB safety relay from ABB is used as a two-hand device relay, both buttons have to be pressed within 0.5 seconds of each other in order to close the outputs.
LED status indication
35 mm DIN rail mounting
IP40 protection rated enclosure and IP20 rated connection blocks
Impulse withstand voltage of 2.5kV
In accordance with safety category 4
35 mm DIN rail mounting
IP40 protection rated enclosure and IP20 rated connection blocks
Impulse withstand voltage of 2.5kV
In accordance with safety category 4
Approvals
TUV, CSA
