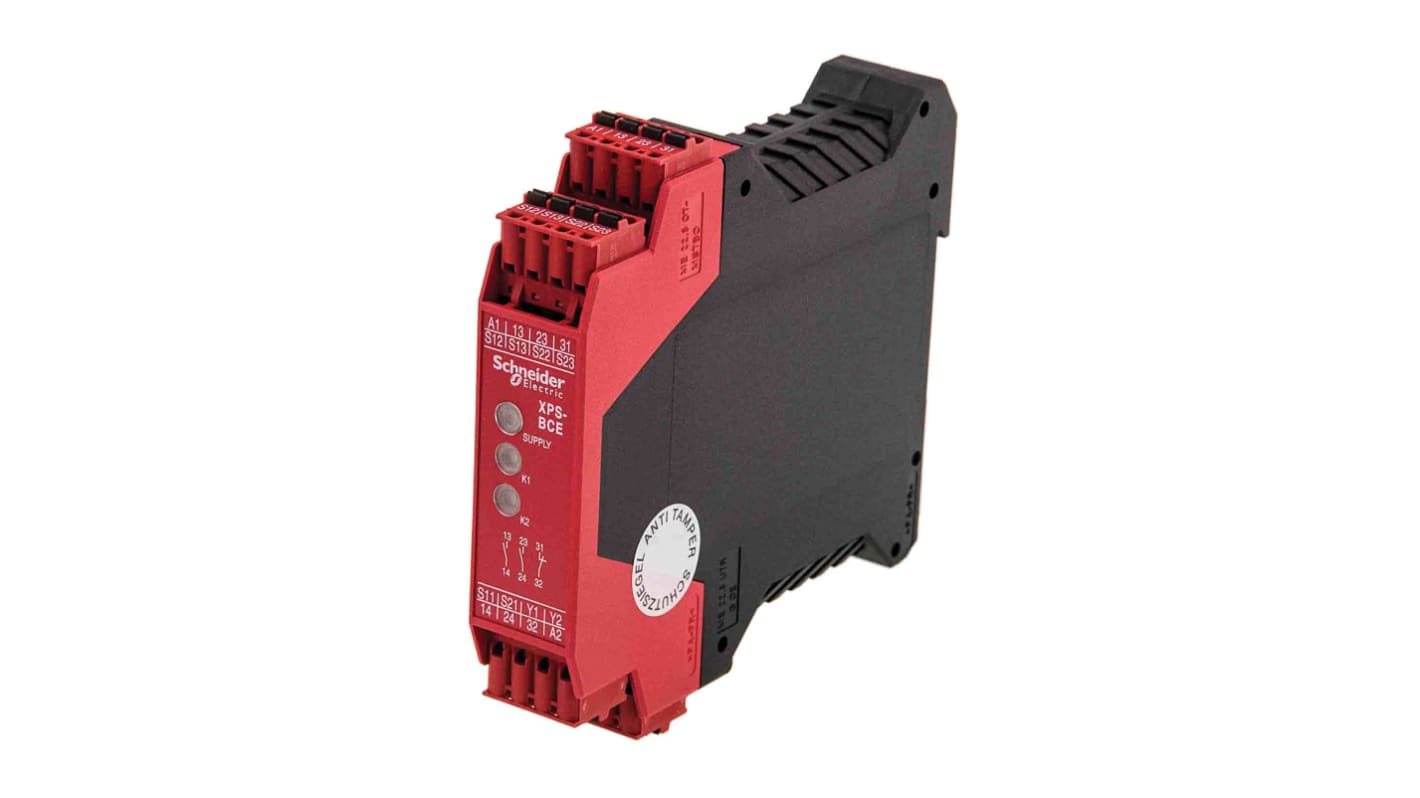

Schneider Electric XPS BCE 230 V ac Safety Relay With 2 Safety Contacts - Preventa Range and 1 Auxiliary Contact

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

XPS BCE Series for Two Hand Control, Type IIIC

Incorporates relay outputs for two hand control applications
Compact and robust design
The enclosure has a protection class rating of IP40 and the terminals are protected to IP20
To initiate a dangerous movement, both operators (two-hand control pushbuttons) must be activated within an interval of less than 0.5 s (synchronous activation)
Three LEDs to indicate control/fuse supply, feedback loop and safety output contact status
PL e/Category 4 conforming to EN/ISO 13849-1, SILCL 3 conforming to EN/IEC 62061
Cage clamp and pluggable versions are available

Approvals

UL, CSA, BG

Specifications
Attribute Value
Supply Voltage 230 V ac
Auxiliary Contacts 1
Function Two-Hand Control
Safety Contacts 2
Range Preventa
Terminal Type Screw
Length 99mm
Depth 114mm
Width 22.5mm
1 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s)
Price Each
£ 277.00
(exc. VAT)
£ 332.40
(inc. VAT)
Units
Per unit
1 +
£277.00
