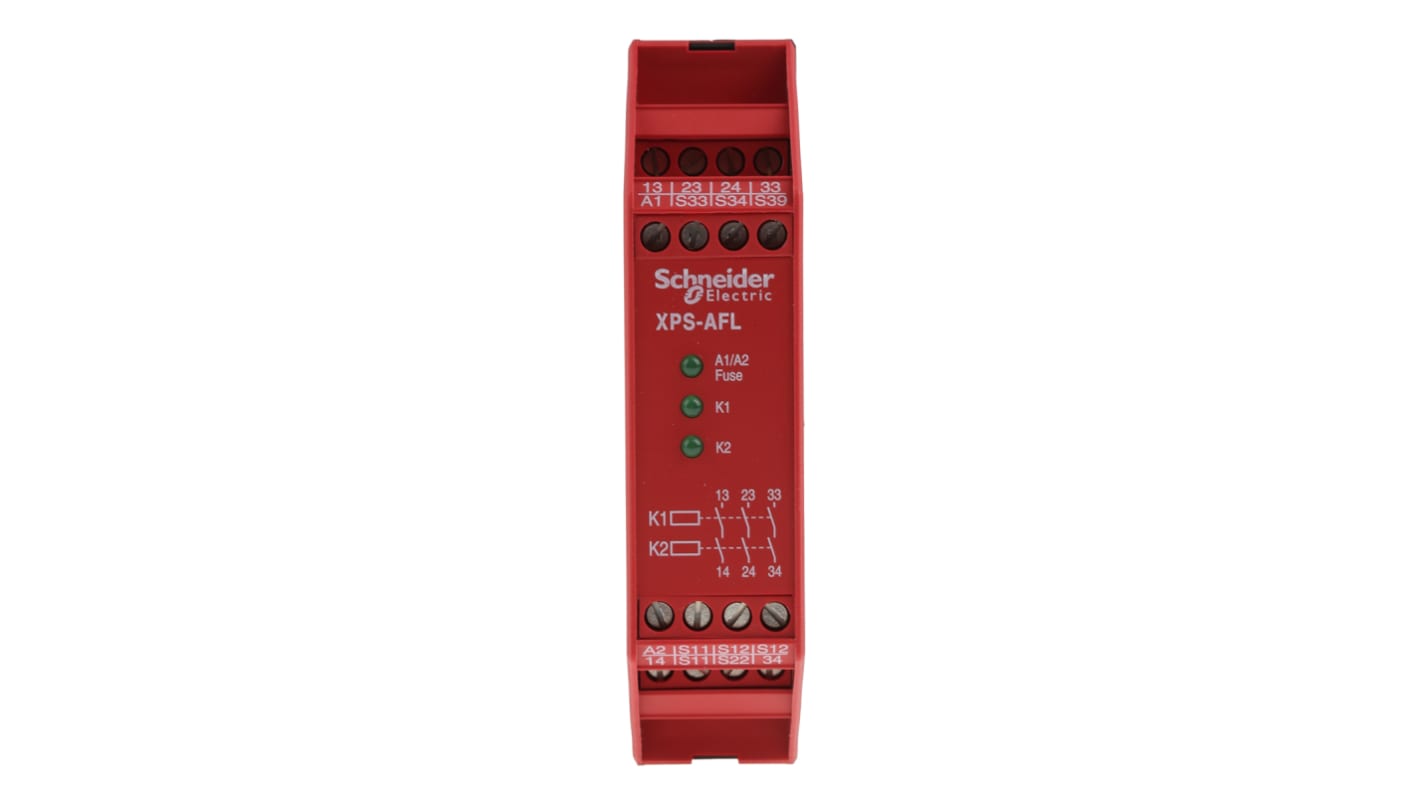

Schneider Electric Preventa XPS AFL Safety Relay 24V ac/dc, Single/Dual-Channel 3 Safety Contacts
- RS Stock No.:
- 609-7167
- Mfr. Part No.:
- XPSAFL5130
- Brand:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 609-7167
- Mfr. Part No.:
- XPSAFL5130
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Supply Voltage | 24V ac/dc | |
| Number of Channels | 1, 2 | |
| Safety Contacts | 3 | |
| Function | Light Beam/Curtain | |
| Range | Preventa | |
| Safety Category ISO 13849-1 | 4 | |
| PL ISO 13849-1 | e | |
| SIL IEC 61508 | 3 | |
| Terminal Type | Screw | |
| Width | 22.5mm | |
| Series | XPS AFL | |
| Depth | 114mm | |
| Length | 99mm | |
| Performance Level | e | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24V ac/dc | ||
Number of Channels 1, 2 | ||
Safety Contacts 3 | ||
Function Light Beam/Curtain | ||
Range Preventa | ||
Safety Category ISO 13849-1 4 | ||
PL ISO 13849-1 e | ||
SIL IEC 61508 3 | ||
Terminal Type Screw | ||
Width 22.5mm | ||
Series XPS AFL | ||
Depth 114mm | ||
Length 99mm | ||
Performance Level e | ||
- COO (Country of Origin):
- ID
Schneider Electric Preventa Safety Modules - XPSAFL
From Schneider Electric this is the Preventa XPSAF part of the Schneider Preventa safety automation range providing you with best answer to monitoring safety functions in safety relays. The safety relay gives to the best protection as they include a redundancy feature principle micro-processer technology with advanced functions.
The XPSAF Safety relay is designed to monitor emergency stop circuits as well as electrical monitoring of switches activated by protection devices and type 4 light curtains. These modules are housed within a hardwearing and compact enclosure with three safety outputs. To assist with diagnostics, the XPSAFL modules feature 3 LEDs on the front face which provides information on the monitoring circuit status.
Feature Applications.
- Emergency stop and switches.
- Coded magnetic switches.
- Sensing mats and edges.
- Two-hand control.
- Light curtains.
- Zero speed.
- Time delay.
- Lifts.
- Applications on hydraulic and eccentric processes.
- All possible dangerous machines which need protection for the operator and the machine.
XPSAFL5130 Schneider Electric Preventa Safety Relay Module.
Function.
Monitoring of electro-sensitive protection equipment (ESPE), Monitoring of a movable guard, Emergency stop with 2 NC contacts monitoring 2-channel wiring, Emergency stop monitoring 1-channel wiring, Multiple emergency stop monitoring 2-channel wiring.
XPSAFL5130 Features and Benefits.
- Preventa safety relay / safety module.
- For emergency stop, switch and safety light curtain monitoring.
- Un-monitored start.
- Connection – Screw clamp terminals.
- Output – 3 NO relay instant opening (volt free).
- No additional circuits.
- Supply voltage 24 V dc/ac.
- Unlimited time between inputs.
- 50/60 Hz frequency.
- 5 VA/AC power consumption.
- 24 V control circuit.
- Minimum output current 10 MA (relay output).
- Minimum output voltage 17 V (relay output).
- Maximum response time 40 Ms (input open).
- 3 LEDs.
- Mounting 35 mm DIN rail.
- Net weight 0.25 kg.
Standards.
- EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 61496-1 (type 4), EN 60204-1, EN 1088/ISO 14119.
Certification.
- TUV, UL, CSA.
Protection.
- IP20 (terminals) conforming to EN/IEC 60529.
- IP40 (enclosure) conforming to EN/IEC 60529.
