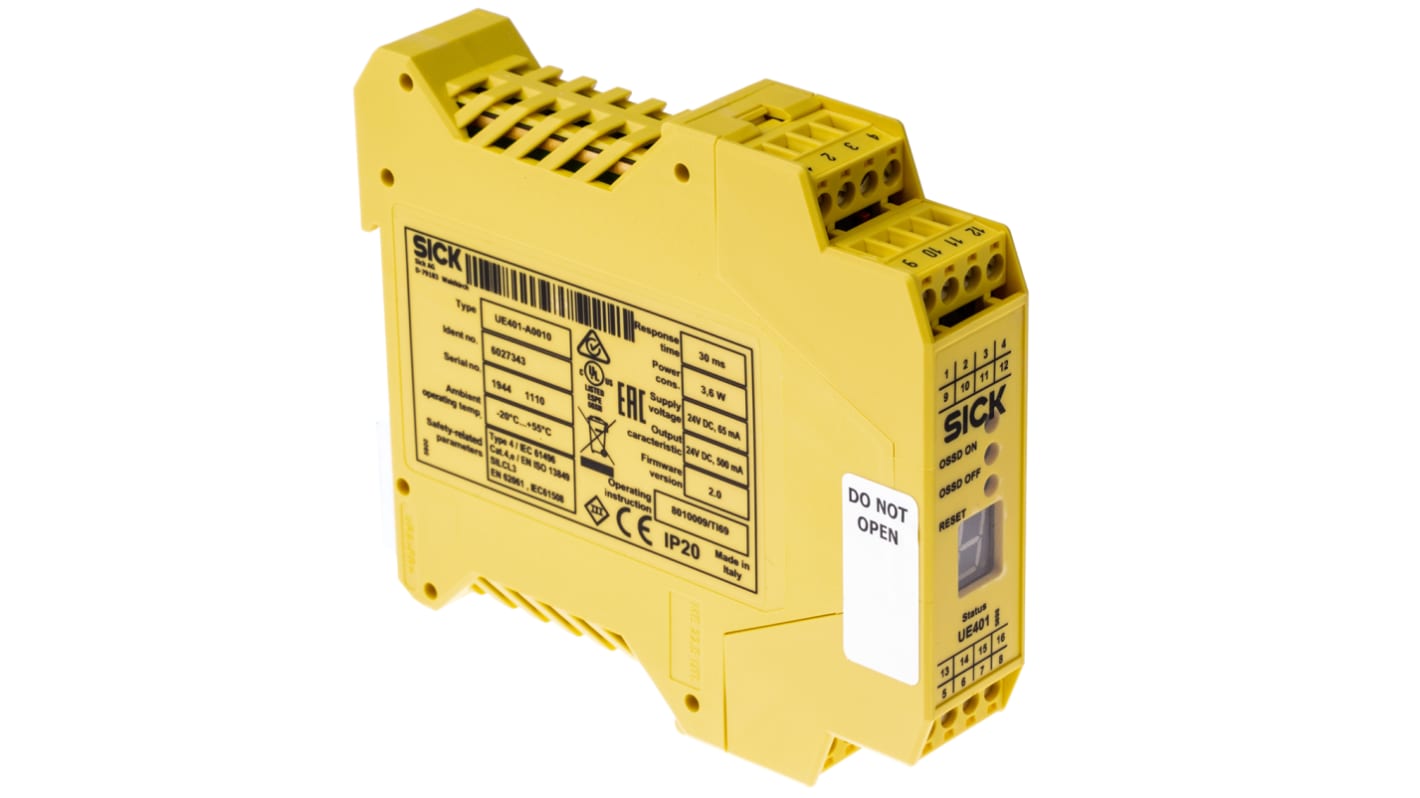

SICK UE401 Safety Relay 24V dc
- RS Stock No.:
- 492-4972
- Mfr. Part No.:
- UE401-A0010
- Brand:
- SICK
Subtotal (1 unit)*
£490.97
(exc. VAT)
£589.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £490.97 |
*price indicative
- RS Stock No.:
- 492-4972
- Mfr. Part No.:
- UE401-A0010
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Supply Voltage | 24V dc | |
Function | Light Beam/Curtain | |
Safety Category ISO 13849-1 | 4 | |
PL ISO 13849-1 | e | |
SIL IEC 61508 | 3 | |
Terminal Type | Screw | |
Depth | 113.5mm | |
Series | UE401 | |
Width | 23mm | |
Length | 66mm | |
Performance Level | e | |
Select all | ||
---|---|---|
Brand SICK | ||
Supply Voltage 24V dc | ||
Function Light Beam/Curtain | ||
Safety Category ISO 13849-1 4 | ||
PL ISO 13849-1 e | ||
SIL IEC 61508 3 | ||
Terminal Type Screw | ||
Depth 113.5mm | ||
Series UE401 | ||
Width 23mm | ||
Length 66mm | ||
Performance Level e | ||
RoHS Status: Exempt
L4000, Type 4 Single/Multibeam System
The L4000 is a single/multi beam, non contact, safety system using a sender and a receiver arrangement and is certified according to IEC 61496 safety category Type 4.,The system consists of the UE401 controller to which, sender and receivers can be connected. Up to 4 sensor pairs can be connected to the UE401
Applications:
This device is intended for body detection of an operator under normal approach conditions toward a hazardous area
Features:
Easy installation
7 segment display
Integrated alignment aid
Reset and External Device Monitoring
2 OSSD (Output Signal Switching Device) outputs
Short response time 30ms
IP67 sender and receiver
7 segment display
Integrated alignment aid
Reset and External Device Monitoring
2 OSSD (Output Signal Switching Device) outputs
Short response time 30ms
IP67 sender and receiver
Note
Installation and operation of this safety device must be in strict accordance with accompanying operating instruction. Further guidance on the use of Active Opto-electronic Protective Devices (AOPD) is available from Health & Safety Executive guidance note HSG180.
Single Beam Safety Device
