Schneider Electric Single/Dual-Channel Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock Safety Relay, 24 V

RS Stock No.:: 422-5203
Mfr. Part No.:: XPSAK351144P
Brand:: Schneider Electric

Technical Reference

Schneider Electric Single/Dual-Channel Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock Safety Relay, 24 V

View all Safety Relays

Discontinued product

Alternative

This product is not currently available. Here is our alternative recommendation.

Schneider Electric Dual-Channel Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock Safety Relay, 110V ac, 3

RS Stock No.: 422-5168

Price Each

£169.64

(exc. VAT)

£203.57

(inc. VAT)

RS Stock No.:: 422-5203
Mfr. Part No.:: XPSAK351144P
Brand:: Schneider Electric

RoHS Status: Not Applicable

COO (Country of Origin):: ID

Schneider Electric | Preventa XPSAK Series | Safety Relays

Simple and effective safety monitoring has never been more crucial in today's highly automated world. Prevention is key to site safety, that's why Schneider Electric offers a Safety Relay in the form of the 'Preventa XPSAK' module that is second to none. Being able to monitor faults with devices along a circuit has the power to stop emergency situations from even occurring.

Features and benefits:

Provides 3 N/O safety relay outputs plus 1 N/C volt free signalling output

Monitoring of the start button or automatic starting can be chosen.

24 V DC option incorporated for each supply voltage version

Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.

Slin in design, with just 45mm of width meaning it can fit nicely even in space constraint spaces.

35 mm symmetrical DIN rail support, offering flexible and versatile safety system installation.

Local signalling in the form of LEDs.

Protection ratings & Safety features (see datasheet for specifics) -

Impressive line resistance is available, varying between 90 to 100 Ohm (Ω).

Input protection type is internal, electronic.

EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850

CSA, TUV & UL listed

IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.

IP 20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.

Applications -

All dangerous machinery requires an automated solution to prevent harm to immediate users and also prevent damage to the machinery. Below are some of the safety applications.

Monitoring type 4 Safety light curtains with semi-conductor outputs according to EN61496-1.

Time delay input if needed allowing you to set up your own time function.

Two-hand control safety circuits

Sensing mats and edges

Standards

IEC 204-1; EN 292; EN 418; EN 60204-1; EN 1088

Approvals

BG, UL, CSA

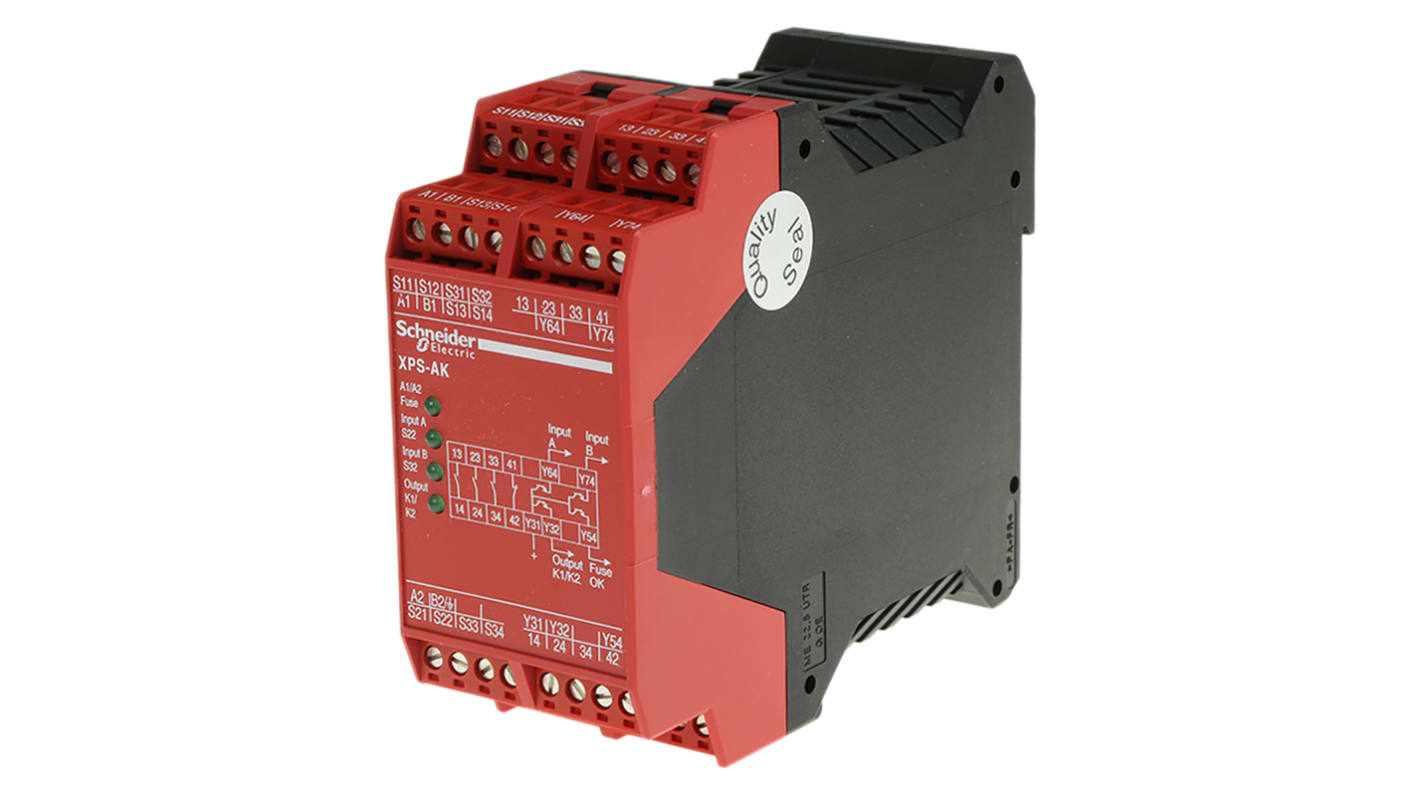

XPSAK351144P Schneider Electric Preventa Safety Relay Module.

Preventa safety module XPSAK.

For emergency stop, switch, sensing mat/edges or safety light curtain monitoring.

Configurable

Captive screw clamp terminals.

3 NO (volt free) instant opening.

1 NC plus 4 solid state additional circuits.

Rated Supply voltage 120 V ac, 24 V dc.

Frequency 50 to 60 Hz.

Control circuit voltage 24 V dc.

Maximum power consumption (VA) 6 VA AC.

Breaking 1.5 A at 24 V (DC-13).

Minimum output current 10 MA (relay output).

Minimum output voltage 17 V (relay output).

Response time 40 Ms (input open).

4 LEDs.

Mounting 35 mm DIN rail.

Net weight 0.4 Kg.

Safety Levels.

Can reach PL e/category 4 conforming to EN/ISO 13849-1, Can reach SILCL 3 conforming to EN/IEC 62061.

Functions.

Monitoring of electro-sensitive protection equipment (ESPE), Multiple emergency stop monitoring 2-channel wiring, Monitoring of a movable guard, Monitoring of a movable guard associated with 2 switches and automatic start, Emergency stop monitoring 1-channel wiring, Emergency stop with 2 NC contacts monitoring 2-channel wiring, Sensing mat and edges monitoring, Proximity sensor monitoring.

Attribute	Value
Supply Voltage	24 V dc, 120V ac
Number of Channels	1, 2
Safety Contacts	3
Function	Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock
Auxiliary Contacts	1
Range	Preventa
Safety Category ISO 13849-1	4
PL ISO 13849-1	e
SIL IEC 61508	3
Terminal Type	Screw
Configurable	Yes
Series	XPS AK
Depth	111mm
Width	45mm
Performance Level	e
Length	99mm
