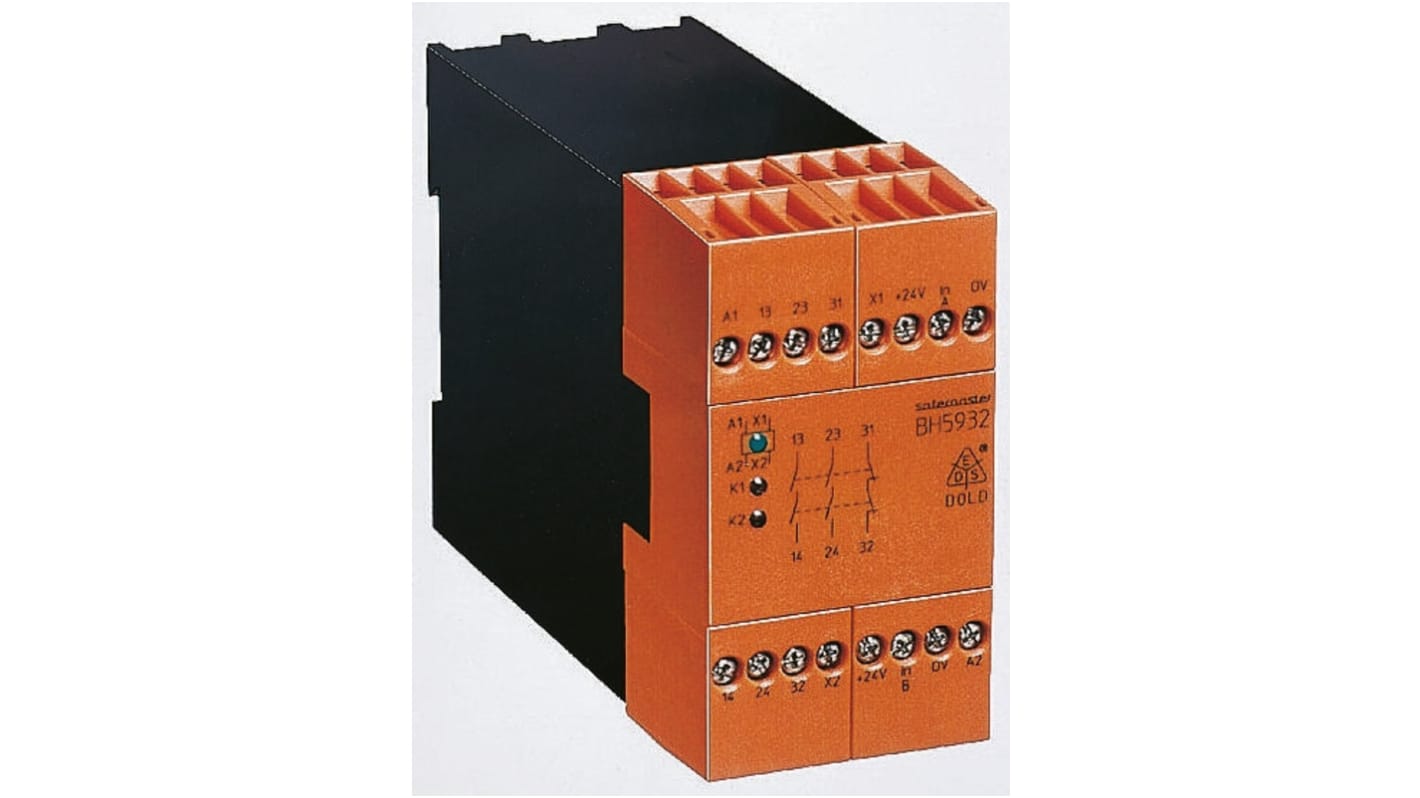

Dold SAFEMASTER S Safety Relay
- RS Stock No.:
- 327-7635
- Mfr. Part No.:
- BH5932.22 DC24V 15IPM
- Brand:
- Dold
Subtotal (1 unit)*
£342.64
(exc. VAT)
£411.17
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £342.64 |
*price indicative
- RS Stock No.:
- 327-7635
- Mfr. Part No.:
- BH5932.22 DC24V 15IPM
- Brand:
- Dold
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dold | |
| Product Type | Safety Relay | |
| Contact Configuration | 2 S | |
| Mount Type | DIN Rail | |
| Series | SAFEMASTER S | |
| Power Consumption | 4VA | |
| Terminal Type | Box Terminal | |
| IP Rating | IP40, IP20 | |
| Contact Current | 4A | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 230V ac | |
| Switching DC Voltage | 24V dc | |
| Standards/Approvals | IEC/EN 60 947-5-1, IEC/EN 61508, IEC/EN 62061, EN 418, IEC/EN 62 061, IEC/EN 60 068-1, IEC/EN 61 326-3-1, IEC/EN 61511, EN ISO 13849-1, UL Subjekt 94, EN 50 005, IEC/EN 60 068-2-6, IEC/EN 60 715, IEC/EN 60 529, EN 55 011 | |
| Maximum Operating Temperature | 60°C | |
| Length | 121mm | |
| Width | 45mm | |
| Height | 85mm | |
| Hazardous Area Certification | NO | |
| Safety Category | Cat 3, EN ISO 13849-1 | |
| Select all | ||
|---|---|---|
Brand Dold | ||
Product Type Safety Relay | ||
Contact Configuration 2 S | ||
Mount Type DIN Rail | ||
Series SAFEMASTER S | ||
Power Consumption 4VA | ||
Terminal Type Box Terminal | ||
IP Rating IP40, IP20 | ||
Contact Current 4A | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 230V ac | ||
Switching DC Voltage 24V dc | ||
Standards/Approvals IEC/EN 60 947-5-1, IEC/EN 61508, IEC/EN 62061, EN 418, IEC/EN 62 061, IEC/EN 60 068-1, IEC/EN 61 326-3-1, IEC/EN 61511, EN ISO 13849-1, UL Subjekt 94, EN 50 005, IEC/EN 60 068-2-6, IEC/EN 60 715, IEC/EN 60 529, EN 55 011 | ||
Maximum Operating Temperature 60°C | ||
Length 121mm | ||
Width 45mm | ||
Height 85mm | ||
Hazardous Area Certification NO | ||
Safety Category Cat 3, EN ISO 13849-1 | ||
- COO (Country of Origin):
- DE
BH5932 standstill monitor for safety circuits
In accordance with EN 60 204-1
Safety category 3 in accordance with EN 954
2-channel design
Initiator control
LED displays for operating voltage
Force guided contacts
2 NO, 1 NC
Overall width 45 mm
The device LEDs light up when the corresponding channel detects a standstill. However, the output contacts are only activated if both channels detect the standstill within two seconds
An example circuit for safety control in connection with the emergency stop module BD5935.48 (RS stock no. 240-8709) is included with the device
The BH5932 monitors rotating parts for standstill. For instance, this device can be used to make sure the safety door on a machine cannot be opened until the machine is at standstill. The two-channel design prevents failure causes such as wire breakage or initiator malfunction.
Standards
EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1
