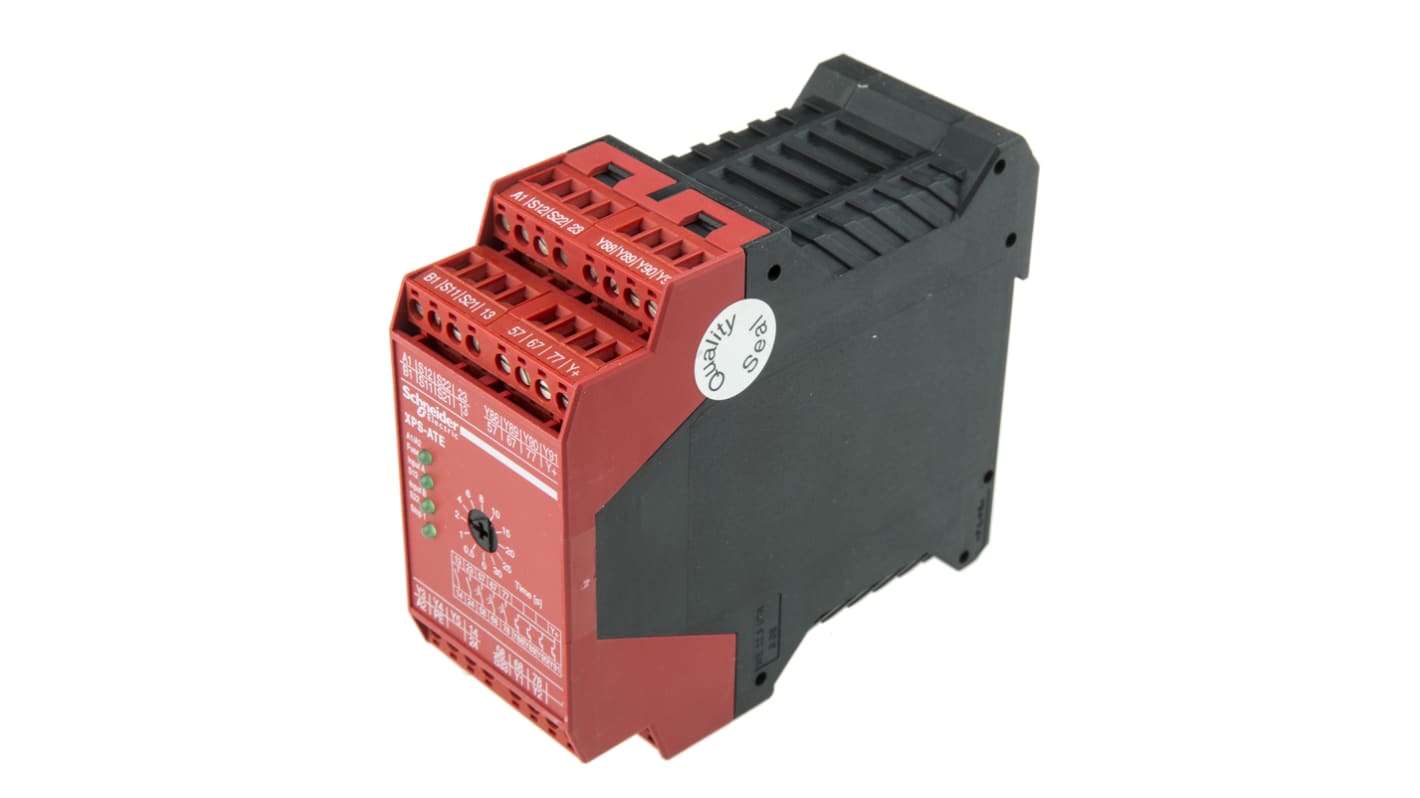

Schneider Electric Dual-Channel Emergency Stop, Safety Mat/Edge, Safety Switch/Interlock Safety Relay, 115V ac, 2

View all Safety Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Schneider Electric XPSU 8 Auxiliary Contacts Safety Relay 48 → 240V ac/dc, 3-Channel 7 Safety Contacts
RS Stock No.
200-6136

Each

£437.41

(exc. VAT)

£524.89

(inc. VAT)

RS Stock No.:
464-502
Mfr. Part No.:
XPSATE3410P
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Supply Voltage

115V ac

Number of Channels

2

Safety Contacts

2

Function

Emergency Stop, Safety Mat/Edge, Safety Switch/Interlock

Auxiliary Contacts

4

Reset Method

Automatic & Manual

Range

Preventa

Safety Category ISO 13849-1

3

Terminal Type

Screw

Configurable

Yes

Depth

114mm

Series

XPS ATE

Width

45mm

Length

99mm

COO (Country of Origin):
ID

Schneider Electric Safety Relays - XPS-ATE Range


The Schneider Electric XPS-ATE range of safety modules have been created and designed to be used for monitoring emergency stop circuits. They provide protection for both machines and operators through immediately stopping the dangerous movement on receipt of a stop instruction or if a fault is detected within the circuit.

Features & Benefits


  • Conforming to standards EN/ISO 13850 and EN/IEC 60204-1 and also meet the safety requirements for the electrical monitoring of switches in protection devices conforming to standard EN 1088/ISO 14119

  • Has a stop category 0, instantaneous opening safety outputs (2 for the XPS-ATE range)

  • Incorporates stop category 1-time delay outputs (3 for XPS-ATE) which allows for controlled deceleration of your motor or device

  • The time delay of the 3 output circuits is adjustable between 0 and 30 seconds through the use of a 12-position selector switch

  • Incorporates 4 solid-state signalling outputs for signalling to the process PLC

  • In the aid of diagnostics, each module from the XPS-ATE range feature LEDs which provide information on the monitoring of circuit status

  • Configurable start button monitoring function, depending on the wiring

XPSATE3410P Features and Benefits.


  • XPSATE Series

  • For emergency stop and switch monitoring applications.

  • Emergency stop button with 2 NC contacts.

  • Configurable.

  • Captive screw clamp terminals.

  • Output Relay instantaneous opening, 2 NO circuit(s), volt-free, Relay time delay opening, 3 NO circuit(s), volt-free.

  • 3 solid state additional outputs.

  • 115 V ac Rated supply voltage.

  • Frequency 50/60 Hz.

  • Maximum power consumption 8W.

  • Internal, electronic input protection.

  • Breaking capacity 180 VA holding AC-15 C300 relay output. 1800 VA inrush AC-15 C300 relay output.

  • Minimum output current 10 mA for relay output.

  • Minimum output voltage 17 V for relay output.

  • 4 LEDs.

  • 35 mm symmetrical DIN rail mounting.

  • Weight 0.38 kg.

  • IP20 (terminals) conforming to EN/IEC 60529.

  • IP40 (enclosure) conforming to EN/IEC 60529.

Safety Level.


  • Can reach PL d/category 3 time delay safety outputs conforming to EN/ISO 13849-1. Can reach PL e/category 4 instantaneous safety outputs conforming to EN/ISO 13849-1. Can reach SILCL 3 instantaneous safety outputs conforming to EN/IEC 62061. Can reach SILCL 2 time delay safety outputs conforming to EN/IEC 62061.

Standards.


  • EN/IEC 60204-1, EN/IEC 60947-5-1, EN/ISO 13850.

Certificates.


  • CSA, TÜV, UL.
