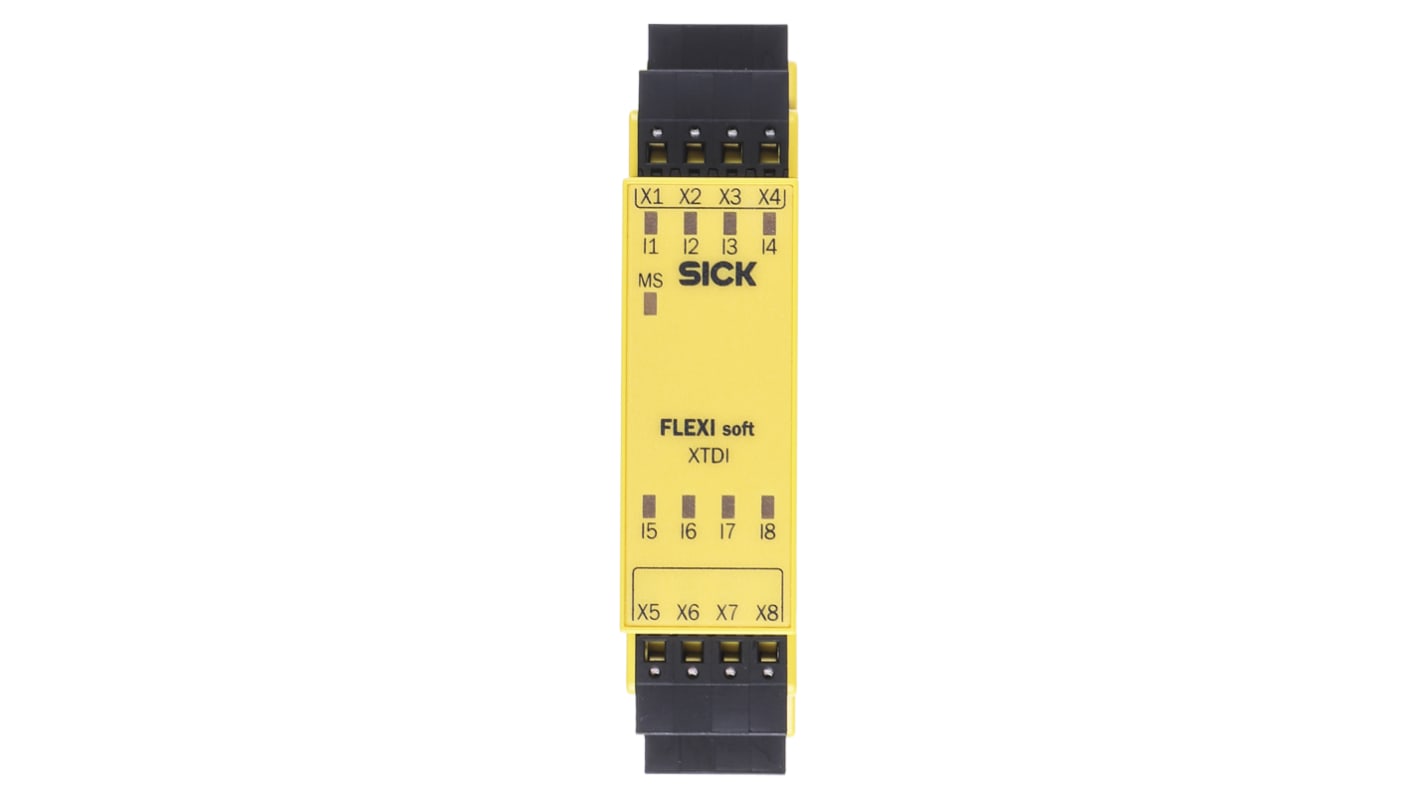

SICK Flexi Soft Series Input Module, 8 Inputs, , 0 Outputs, 24 V dc
- RS Stock No.:
- 701-9199
- Mfr. Part No.:
- FX3-XTDI80002
- Brand:
- SICK
Subtotal (1 unit)*
£241.23
(exc. VAT)
£289.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £241.23 |
*price indicative
- RS Stock No.:
- 701-9199
- Mfr. Part No.:
- FX3-XTDI80002
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Series | Flexi Soft | |
Type | Input Module | |
For Use With | Flexi Soft System | |
Supply Voltage | 24 V dc | |
Number of Inputs | 8 | |
Number of Outputs | 0 | |
Power Rating | 5 W | |
Mounting Style | DIN Rail | |
Dimensions | 96.5 x 22.5 x 120.8 mm | |
Terminal Type | Clamp | |
Select all | ||
---|---|---|
Brand SICK | ||
Series Flexi Soft | ||
Type Input Module | ||
For Use With Flexi Soft System | ||
Supply Voltage 24 V dc | ||
Number of Inputs 8 | ||
Number of Outputs 0 | ||
Power Rating 5 W | ||
Mounting Style DIN Rail | ||
Dimensions 96.5 x 22.5 x 120.8 mm | ||
Terminal Type Clamp | ||
- COO (Country of Origin):
- DE
Flexi Soft Input Expansion Unit - FX3-XTDI80002
8 safety inputs
8 control outputs (with 2 test pulse generators)
Safety functions: E-stop function; machine control (e.g.PSDI); differentiation between man and material (muting); control modes and operating mode selection
Connects to main system via cable gland
Category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), PL e (EN ISO 13849)
8 control outputs (with 2 test pulse generators)
Safety functions: E-stop function; machine control (e.g.PSDI); differentiation between man and material (muting); control modes and operating mode selection
Connects to main system via cable gland
Category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), PL e (EN ISO 13849)
SICK I/O Digital Module
The SICK I/O digital module has 8 numbers of input and output terminals. This module has an input supply voltage of 13VDC to 30VDC and an output voltage ranging from 15VDC to 30VDC via FLEXBUS+. This module enables safety functions like E-stop function, machine control (e.g. PSDI), differentiation between man and material (muting), control modes and operating mode selection.
Features and Benefits
8 control outputs (with 2 test pulse generators)
Safety functions
Connects to main system via cable gland
Operating temperature ranges between –25°C and 55°C
Safety functions
Connects to main system via cable gland
Operating temperature ranges between –25°C and 55°C
Certifications
EN ISO 13849
SIL3 (IEC 61508)
SILCL3 (IEC 62061)
EN ISO 13848
IP20 rated (Enclosure)
CE certified
cULus approved
CCC certified
SIL3 (IEC 61508)
SILCL3 (IEC 62061)
EN ISO 13848
IP20 rated (Enclosure)
CE certified
cULus approved
CCC certified
